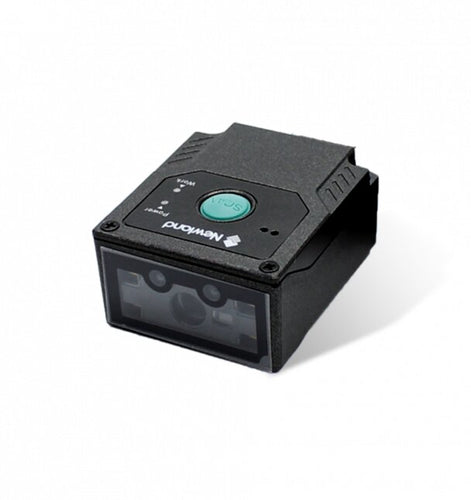

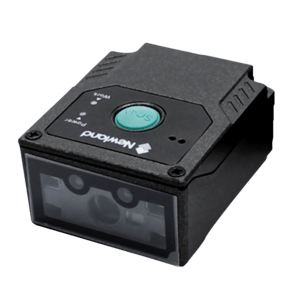

Newland FM430 Barracuda Fixed bar code reader 1D/2D CMOS Black

1D/2D, LED, 60 frames/sec, USB, 41.5 x 49.5 x 24.3 mm, 75 g

Key Features

• Megapixel camera
• Snappy, also in less than perfect conditions
• Handsfree or manual scanning
• Intelligent programming
• Reliable outdoor use
• Bright laser aimer (optional)

Description

The new FM430 Barracuda is Newland’s most aggressive and efficient fixed mount scanner to date, making it a strong all-round solution. It’s equipped with a megapixel camera that scans virtually any 1D and 2D barcode with impressive speed and ease.

It allows it to pick up on barcodes quickly, making it easy to use, even for inexperienced users
On top of that, the FM430 Barracuda's programming, IR sensor and light sensor help keep users moving, even in low light conditions. The combination of these features is what makes the device really knock the socks off similar scanners in the industry. It allows it to pick up on barcodes quickly, making it easy to use, even for inexperienced users.

Megapixel camera.
The FM430 Barracuda is a barcode scanning powerhouse. No matter what type of barcode is presented, the megapixel camera allows users to scan 1D and 2D barcodes, including very small ones, with impressive speed and ease.

Snappy, also in less than perfect conditions.
A combination of the IR sensor and the light sensor helps to keep workers moving, even in low light conditions. Its strong, white light ensures barcodes are always well lit.

Handsfree or manual scanning.
Companies looking for automatic scanning to relieve manual labor can set up the FM430 Barracuda for handsfree scanning. Alternatively, a manual trigger button can be used if preferred.

Intelligent programming.
The sensors of the FM430 Barracuda automatically adjust the brightness of supplementary lighting based on the light that reflects off the barcode. This also makes it an optimal solution for scanning from mobile phone screens. Depending on the application, the scanner can be set to optimally read from close and long distance.

Reliable outdoor use.
With an IP rating of 54, this fixed mount scanner can be placed in a housing and used outdoors without worrying about dust or moisture.

Bright laser aimer (optional).
The FM430 Barracuda is available with a red cross laser that makes scanning easy and intuitive, even for the most inexperienced users.

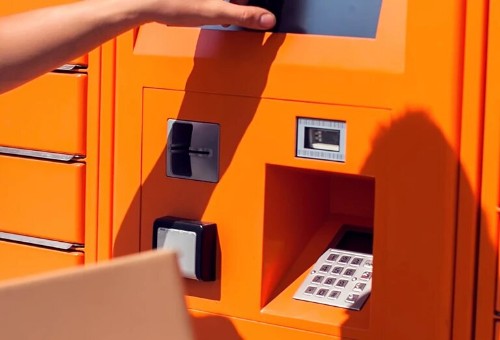

Application scenarios.
Self-service kiosks used in e-commerce, express delivery services, access control, loyalty, mobile payment, events ticket redemption, gaming cash outs, postal services, transport boarding passes, parking ticket machines, production line.

2D Mega Pixel Fixed Mounted Reader with 2 meter USB extension cable. Green LED Aimer, white light & IR sensor.

Specifications

Scanning
Type	Fixed bar code reader
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN-13, EAN-8, ITF-14, ITF-6, Industrial 2 of 5, MSI, Matrix 2 of 5, Plessey, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported	Aztec Code, Code 1, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Yaw reading angle	0 - 360°
Tilt reading angle	-55 - 55°
Sensor type	CMOS
Scanner type	1D/2D
Read rate (max)	60 reads/s
Pitch reading angle	-55 - 55°
Optical sensor resolution (W x H)	1280 x 800 pixels
Ports & interfaces
Connectivity technology	Wired
Cable length	0.5 m
Standard interfaces	USB
Performance
Protection features	Drop proof, Electrostatic Discharge (ESD) protection
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Built-in processor	Yes
Processor frequency	1000 MHz
International Protection (IP) code	IP54
Product colour	Black
Certification	FCC Part15 Class B, CE EMC Class B, IEC60825, IEC62471, KC
Buzzer	Yes
Print contrast	25%
Design
Type	Fixed bar code reader
Protection features	Drop proof, Electrostatic Discharge (ESD) protection
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
International Protection (IP) code	IP54
Product colour	Black
Certification	FCC Part15 Class B, CE EMC Class B, IEC60825, IEC62471, KC
Power
Power consumption	276.8 mA
Power source type	USB
Input frequency	50 - 60 Hz
Input voltage	100 - 240 V
AC adapter output voltage	5 V
Weight & dimensions
Width	41.5 mm
Depth	49.5 mm
Height	24.3 mm
Weight	75 g
Technical details
Type	Fixed bar code reader
Protection features	Drop proof, Electrostatic Discharge (ESD) protection
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Built-in processor	Yes
Processor frequency	1000 MHz
International Protection (IP) code	IP54
Product colour	Black
Certification	FCC Part15 Class B, CE EMC Class B, IEC60825, IEC62471, KC
Buzzer	Yes
Compliance certificates	RoHS
Packaging data
Cables included	USB
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 95%
Packaging content
Cables included	USB
