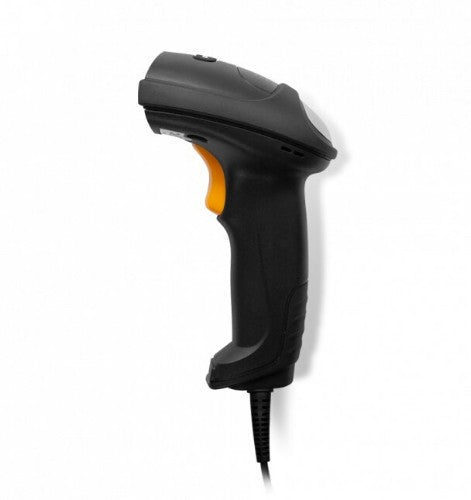

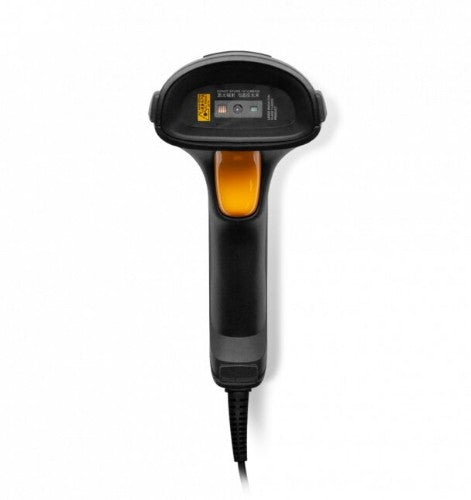

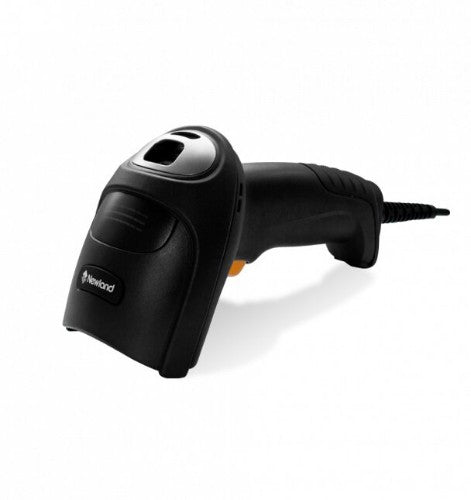

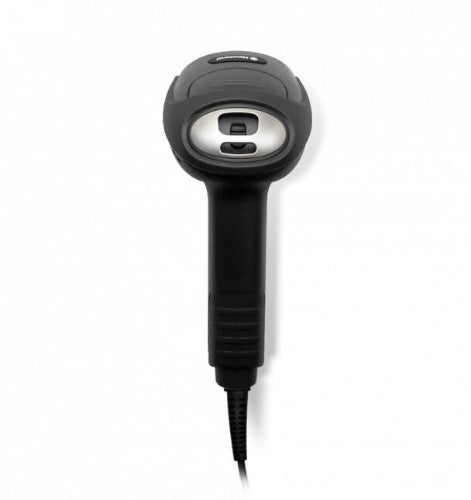

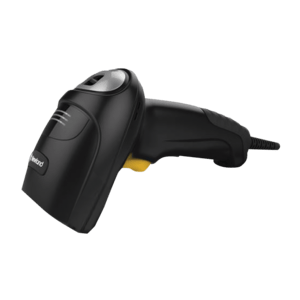

Newland HR52 Bonito Handheld bar code reader 1D/2D CMOS Black

1D/2D, 1280x800 CMOS, LED, USB, 95.5 x 77.5 x 172.5 mm, 180 g

Key Features

• Developed for scanning at the POS
• Perfected for precise aiming
• Adjusts to your environment
• Durable design

Description

Giving it one of the quickest and most accurate scanning performances available, the HR52 Bonito Corded includes a megapixel barcode scanner that reads both 1D and 2D codes with ease. Barcodes that are creased, damaged or covered by cellophane are no problem for this scan engine.

Scan with impressive accuracy at your POS.
Giving it one of the quickest and most accurate scanning performances available, the HR52 Bonito Corded includes a megapixel barcode scanner that reads both 1D and 2D codes with ease. Barcodes that are creased, damaged or covered by cellophane are no problem for this scan engine.

Developed for scanning at the POS.
Equipped with a megapixel barcode scanner, the HR52 Bonito Corded provides you with some of the snappiest and most accurate scanning on the market. It reads virtually all 1D or 2D barcode in any condition, including DotCode on tobacco products.

Perfected for precise aiming.
Soft, white illumination combined with a clear cross laser aimer provide ideal conditions for point-and-shoot scanning. One press of the trigger is sure to capture the correct barcode, even if surrounded by other barcodes, by using Newland’s Acuscan aiming technology.

Adjusts to your environment.
No matter where the scanner needs to fit into your business, the HR52 Bonito Corded suits the setting. Its stand can be set for hands-free scanning, optimising work at your POS while keeping the device fully charged. In the stockroom or your warehouse, it can be mounted vertically or horizontally for easy access.

Durable design.
The built-in durability of the HR52 Bonito Corded makes the handheld scanner a reliable solution. Everyday drops to the floor or bumps on the counter are no match for its 1.8m drop resistance.

2D CMOS Handheld Reader, Mega Pixel, Retail version, DotCode enabled (Black surface) with 3 meter coiled USB cable. Autosense, smart stand ready.

Specifications

Scanning
Type	Handheld bar code reader
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Interleaved 2 of 5, MSI, Matrix 2 of 5, Plessey, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, PDF417, QR Code
Yaw reading angle	0 - 360°
Wavelength	650 nm
Tilt reading angle	-55 - 55°
Sensor type	CMOS
Scanner type	1D/2D
Pitch reading angle	-55 - 55°
Optical sensor resolution (W x H)	1280 x 800 pixels
Ports & interfaces
Connectivity technology	Wired
Cable length	3 m
Standard interfaces	USB
Performance
Protection features	Drop proof, Electrostatic Discharge (ESD) protection
International Protection (IP) code	IP54
Product colour	Black
Certification	FCC Part15 Class B, CE EMC Class B
Buzzer	Yes
Print contrast	20%
Design
Type	Handheld bar code reader
Protection features	Drop proof, Electrostatic Discharge (ESD) protection
International Protection (IP) code	IP54
Product colour	Black
Certification	FCC Part15 Class B, CE EMC Class B
Power
Power consumption	81 mA
Power source type	USB
Input voltage	5 V
Weight & dimensions
Width	77.5 mm
Depth	95.5 mm
Height	172.5 mm
Weight	180 g
Technical details
Type	Handheld bar code reader
Protection features	Drop proof, Electrostatic Discharge (ESD) protection
International Protection (IP) code	IP54
Product colour	Black
Certification	FCC Part15 Class B, CE EMC Class B
Buzzer	Yes
Packaging data
Cables included	USB
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Packaging content
Cables included	USB
