Peerless DS-VW765-LQR signage display mount 165.1 cm (65") Black

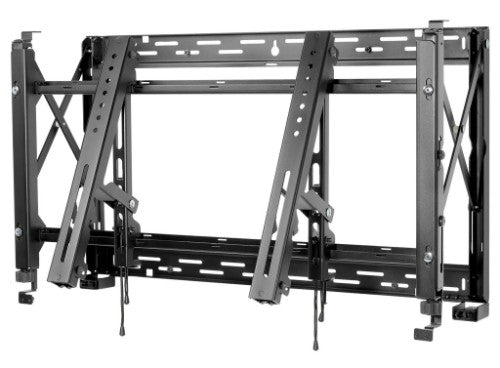

Video walls should be easy to configure, quick to install, and a snap to maintain. The DS-VW765-LQR Full-Service Video Wall Mount with a Quick Release from Peerless-AV is designed for quick service access in recessed video wall applications. It provides versatility demanded by installers. With the quick-release functionality, users have the ability to articulate the display from the wall by gently pressing on the front of the display. The DS-VW765-LQR has a no-tool-required micro-adjustment feature and provides easy-access to any display, creating the ideal video wall. The custom wall plate spacers eliminate guesswork and on-site installation calculations and measurements, reducing installation time and cost. This innovative design, combined with a ready-to-install mount, makes this the fastest video wall installation. Loaded with time saving features, this Full-Service Video Mount is the ultimate video wall mounting solution.

Features

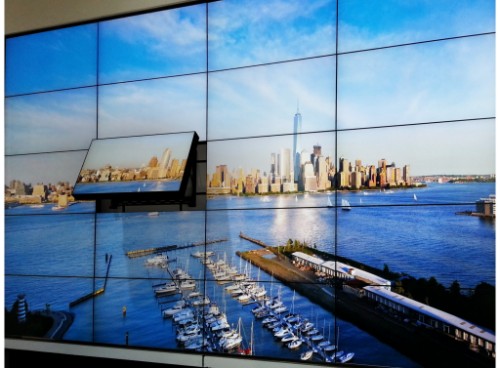

- Quick release pop out mechanism provides convenient display access in recessed applications
- Quick release can be disabled with a locking screw to prevent unintentional pop-outs
- Carriage extension force can be adjusted to accommodate the weight of the display, allowing the quick release to activate with gentle force
- Modular mount for unlimited video wall display configurations
- Custom wall plate spacers eliminate the guesswork and on-site installation calculations
- Tool-less micro-adjustments at 8 points allows the mount to overcome uneven walls to create a seamless video wall display
- Pull-out/prop-open mechanism provides quick service access
- Integrated cable management tie-backs make display-to-display cabling simple,

Mounting
Minimum screen size	116.8 cm (46")
Maximum weight capacity	56.8 kg
Panel mounting interface	200 x 200,300 x 300,400 x 200,400 x 400,600 x 200,600 x 400
Number of displays supported	1
Mounting type	Wall
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	600 x 400 mm
Maximum screen size	165.1 cm (65")
Ergonomics
Distance to the wall (min)	7.8 cm
Distance to the wall (max)	9.7 cm
Design
Product colour	Black
Weight & dimensions
Width	904 mm
Depth	97 mm
Height	543 mm
Weight	14.8 kg
Depth (max)	29.1 cm
Package width	943 mm
Package depth	108 mm
Package height	594 mm
Package weight	17.6 kg
Packaging data
Package width	943 mm
Package depth	108 mm
Package height	594 mm
Package weight	17.6 kg
Quantity per pack	1 pc(s)
Packaging content
Mounting kit	Yes
Technical details
Number of displays supported	1
Mounting type	Wall
Distance to the wall (min)	7.8 cm
Distance to the wall (max)	9.7 cm
Compliance certificates	RoHS
Logistics data
Harmonized System (HS) code	85299097
