Peerless | SKU:
PRGS-UNV
Sold out

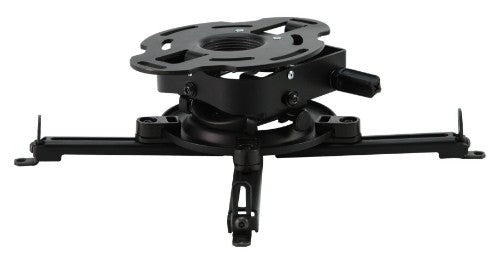

Peerless PRGS-UNV project mount Ceiling Black
€137.16
Unit price
/
Unavailable
Shipping calculated at checkout.
Peerless PRGS-UNV project mount Ceiling Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
PRGS Projector Mount for Projectors up to 50lb (22kg)
Key Features
- Two adjustment knobs to control tilt and roll image alignment and accurately hold image position, virtually eliminating any sag or drift
- Achieve pin-point image alignment by simply turning the adjustment knobs by hand or with a Phillips screwdriver
- Pre-installed security screws provide tilt and roll locking ability to prevent tampering and adjustments
- Quick-release thumbscrew enables easy-glide removal of the projector in and out of the mount
- Low profile design allows projector to be flush with the ceiling
- Open frame assembly provides easy cable routing through the projector mount itself
- Quick release mechanism to easily service projector
- Specifications: Pitch: +15°/-20° Roll: ±5° Swivel: 360° (during installation)
- Spider® Universal Adaptor Plate extends up to 17.63" (448 mm) to fit most projector models
Description
The PRGS Projector Mount simplifies the way image alignment is done. The precision gear design allows exact pitch and roll image positioning by either simply turning two adjustment knobs with a Phillips screw driver, or using the tool-less option by extending the knobs to adjust by hand. Just set the precision gear to the desired position to secure it in place. It will hold its position even during projector maintenance. With Peerless-AV® PRGS Projector Mount, just set it and forget it. No more adjustment screws. No more micro adjustments. No more hassles.Specifications
| Mounting | |
|---|---|
| Mounting type | Ceiling |
| Maximum weight capacity | 22 kg |
| Ceiling mounting tube length (min) | 92 cm |
| Ceiling mounting tube length (max) | 118 cm |
| Performance | |
| Tilt angle range | -20 - 15° |
| Swivel angle | 360° |
| Angle of rotation | 10° |
| Mounting type | Ceiling |
| Maximum weight capacity | 22 kg |
| Product colour | Black |
| Ceiling mounting tube length (min) | 92 cm |
| Ceiling mounting tube length (max) | 118 cm |
| Adjustable arm | Yes |
| Safety lock | Yes |
| Easy to install | Yes |
| Ergonomics | |
| Tilt angle range | -20 - 15° |
| Swivel angle | 360° |
| Angle of rotation | 10° |
| Product colour | Black |
| Adjustable arm | Yes |
| Weight & dimensions | |
| Package weight | 2 kg |
| Package width | 362 mm |
| Package height | 171 mm |
| Package depth | 76 mm |
| Width | 216 mm |
| Height | 92 mm |
| Depth | 448 mm |
| Depth (min) | 21.6 cm |
| Depth (max) | 44.8 cm |
| Weight | 1.9 kg |
| Maximum device height | 44.8 cm |
| Maximum device width | 11.8 cm |
| Packaging content | |
| Manual | Yes |
| Mounting kit | Yes |
| Technical details | |
| Package width | 362 mm |
| Package height | 171 mm |
| Package depth | 76 mm |
| Tilt angle range | -20 - 15° |
| Swivel angle | 360° |
| Angle of rotation | 10° |
| Mounting type | Ceiling |
| Maximum weight capacity | 22 kg |
| Product colour | Black |
| Ceiling mounting tube length (min) | 92 cm |
| Ceiling mounting tube length (max) | 118 cm |
| Adjustable arm | Yes |
| Logistics data | |
| Harmonized System (HS) code | 83024190 |
