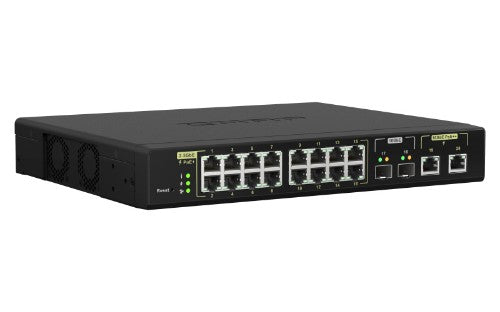

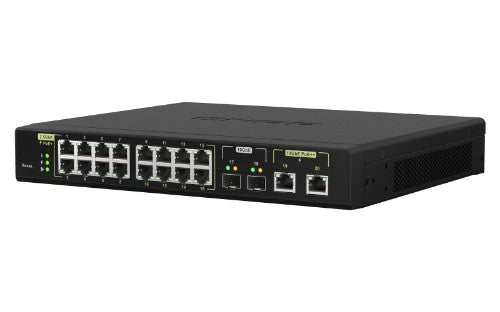

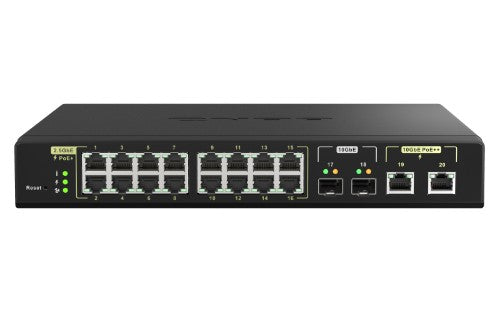

QNAP QSW-M2116P-2T2S network switch Managed L2 2.5G Ethernet Power over Ethernet (PoE) Black

16x RJ45 2.5GbE , 2x RJ45 10GbE, 2x 10GbE SFP+, PoE, Web Managed, 100-240VAC, 50/60 Hz, 350W, 43.5 x 285 x 234.8 mm, 2.08 kg

Key Features

• Compliant with the IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards. Offers 2-port 90-watt and 16-port 30-watt PoE capabilities. Can supply a total power budget of 280 watts to meet the demands of high-powered devices (PDs)
• Compatible with 10GBASE-T and 5GBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M), the QSW-M2116P-2T2S offers higher transmission speeds when used with existing cables
• Two 10GbE SFP+ ports can connect to the Internet, Routers, core switches, and NAS to fulfill the high bandwidth demands of backbone network or data centers
• Offers a user-friendly web interface to help IT administrators efficiently control Layer 2 and PoE networks. Additionally, the overview dashboard and graphical statistics analysis show IT administrators all switch information and powered devices at a glance, making central management of high-power devices intuitive and easy
• Provides comprehensive Layer 2 management features (such as VLAN, LACP, QoS IGMP Snooping, and Wake-on-LAN) for IT administrators to efficiently control network bandwidth and enhance security via the user-friendly switch management web interface
• QSS (QNAP Switch System) helps administrators update firmware with just one click, ensuring network security

Description

The QNAP QSW-M2116P-2T2S is a L2 PoE Managed Switch with sixteen 30-watt 2.5GbE PoE+ ports, two 90-watt 10GbE PoE++ ports. Offering a total power budget of 380 watts and two 10GbE SFP+ ports, the QSW-M2116P-2T2S not only enables a high-speed and high-power PoE network infrastructure for Wi-Fi 6 Access Points and Routers, but also provides backbone network uplinking capabilities. The QSS, QNAP Switch System with user-friendly web interface, helps IT administrators efficiently control Layer 2 and PoE networks, including wireless APs, IP Cameras and Digital Signage, core Switches and Servers. The QSW-M2116P-2T2S offers SMBs a cost-optimized and centrally managed LAN deployment solution.

10GbE 90-watt PoE Switch for Wi-Fi 6 APs & Routers
The QSW-M2116P-2T2S breaks through bandwidth limitations cabled and wireless networks to enhance your storage and access experience. With two 10GbE 90-watt and sixteen 2.5GbE 30-watt PoE ports, the QSW-M2116P-2T2S supplies up to a total power budget of 280 watts to meet the demands of high-power Wi-Fi 6 APs. With two 10GbE SFP+ ports for backbone network uplinking capability, the QSW-M2116P-2T2S provides an ultra-high-speed Wi-Fi 6 wireless network infrastructure solution for small-to-medium-scale businesses, hotels, and stores

High PoE Capability– up to 90W
The QSW-M2116P-2T2S is compliant with the IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards, offering 2-port 90-watt and 16-port 30-watt PoE capabilities. The QSW-M2116P-2T2S can supply a total power budget of 280 watts to meet the demands of many high-power devices (PDs) (such as 4K IP cameras, wireless APs, IP phones, LED lights, and digital signage).

Faster PoE and Backbone network transmission
QSW-M2116P-2T2S has two 10GbE ports and sixteen 2.5GbE PoE ports for connecting various high-speed powered devices. Two in-built 10GbE SFP+ ports can serve as uplink ports to the Internet and core networks or simply be connected to routers and LAN Fiber switches, improving LAN and WAN transmission efficiency. The switching capacity of QSW-M2116P-2T2S is 160Gbps, guaranteeing the full potential of each port.

Intelligent PoE Functions for Efficient, Centralized PD Management
The QSW-M2116P-2T2S supports intelligent PoE management functions, including scheduling, power supply prioritization, and power enabling and disabling. You can obtain real-time network connection status and power consumption information of PDs and configure PDs simultaneously to promote an energy-saving PoE network.

Comprehensive Layer 2 Management Features
The QSW-M2116P-2T2S provides comprehensive Layer 2 management features such as VLAN, LACP, and LLDP for you to efficiently control the network through IP grouping and bandwidth management. The QSW-M2116P-2T2S also has powerful security functions, including IGMP Snooping, static MAC, QoS, and Wake-on-LAN, which are suitable for simple networking environments and easy deployment.

QSS: User-Friendly Switch Management System
The QSW-M2116P-2T2S uses the QNAP Switch System (QSS), a user-friendly web interface networking management system to help IT administrators efficiently control Layer 2 management and PoE networks. Additionally, the overview dashboard and graphical statistics analysis area displays all the information about the switch and PDs at a glance, making centralized management of powered devices intuitive and easy for administrators.

Fan Failure LED for Efficient IT Maintenance
Designed for server rooms and computer rooms, the QSW-M2116P-2T2S features a standard 1U rackmount and a Fan failure LED to help IT administrators with convenient installation and efficient maintenance.

Specifications

Management features
Reset button	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2
Ports & interfaces
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet
Console port	RJ-45
2.5G Ethernet (copper) ports quantity	16
10G Ethernet (copper) ports quantity	2
Network
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
VLAN support	Yes
Rate limiting	Yes
Port mirroring	Yes
Flow control support	Yes
10G support	Yes
Auto-negotiation	Yes
IGMP snooping	Yes
Data transmission
Jumbo frames	9000
MAC address table	32000 entries
Switching capacity	160 Gbit/s
Jumbo frames support	Yes
Throughput	80 Gbit/s
Security
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP client
Design
Reset button	Yes
Product colour	Black
Stackable	No
LED indicators	Activity, Link, Power, Speed, Status
Electromagnetic compatibility	CLASS A
Rack mounting	Yes
Number of fans	2 fan(s)
Country of origin	Taiwan
Certification	CE, FCC, VCCI, BSMI
Performance
Firmware upgradeable	Yes
Fanless	No
Stackable	No
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Power
Power consumption (max)	350 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Number of power supply units	1
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	16
Total Power over Ethernet (PoE) budget	280 W
Power over Ethernet (PoE)	Yes
Other features
Warranty period	2 year(s)
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	234.8 mm
Depth	285 mm
Height	43.5 mm
Weight	2.08 kg
Packaging content
Rack mount kit	Yes
Quick start guide	Yes
User guide	Yes
Cables included	AC
Packaging data
Package type	Box
Package width	384 mm
Package depth	282 mm
Package height	78 mm
Package weight	2.13 kg
Rack mount kit	Yes
Quick start guide	Yes
User guide	Yes
Cables included	AC
Technical details
Product colour	Black
Stackable	No
Firmware upgradeable	Yes
Rack mounting	Yes
Warranty period	2 year(s)
Compliance certificates	CE
Certificates
Electromagnetic compatibility	CLASS A
Certification	CE, FCC, VCCI, BSMI
Compliance certificates	CE
Indication
LED indicators	Activity, Link, Power, Speed, Status
Logistics data
Country of origin	Taiwan
Products per master (outer) case	5 pc(s)
Harmonized System (HS) code	85176990
