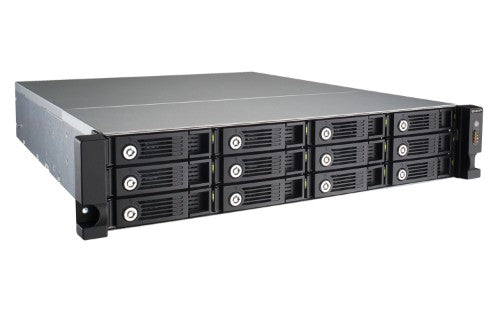

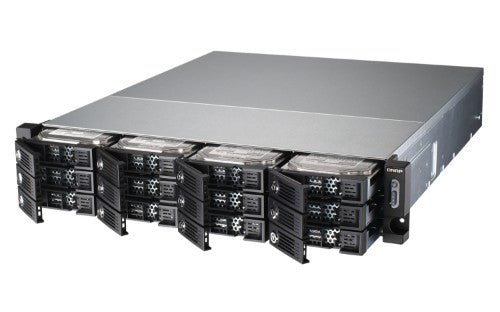

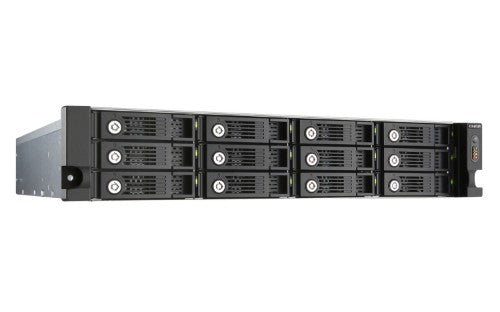

QNAP TVS-1271U-RP NAS Rack (2U) Ethernet LAN Black, Grey i5-4590S

3GHz Intel Core i5-4590S, 16 GB DDR3 RAM, 12x HDD/SSD (2.5''/3.5''), 4x Gigabit RJ-45 Ethernet, 4x USB 3.0, 4x USB 2.0, 1x HDMI, 1x PCIe Gen3 x8, 1x PCIe Gen3 x4, 2U Rack, 500W, QTS 4.1

Description

The QNAP TVS-1271U-RP, featuring the easy-to-use QTS operating system, provides a reliable and scalable NAS solution to fulfill data backup, file synchronization and remote access. The TVS-1271U-RP is 10GbE-ready, delivers exceptional performance, and supports cross-platform file sharing, comprehensive backup solutions, iSCSI and virtualization applications, and many practical business functions, making it the ideal choice for SMBs to secure important business data. It also includes abundant multimedia applications backed by its powerful hardware specifications.

- 3,300+ MB/s throughput and 162,000+ IOPS
- Two internal cache ports for IO acceleration
- Scalable design, up to 1120TB raw capacity
- Virtualization-ready, centralized data storage, backup, sharing and disaster recovery

Breakthrough performance

The TVS-1271U-RP supports SATA 6Gbps hard drives driving over 3,300 MB/s throughput and 162,000 IOPS *. The TVS-1271U-RP is powered by an Intel® Haswell processor with numerous options including Pentium®, Core™ i3, Core™ i5 and Core™ i7 for users to flexibly choose based on their demands, greatly enhancing the efficiency of CPU-consuming tasks and serving more concurrent tasks at the same time.

Internal cache port for IO acceleration

The TVS-1271U-RP supports two on-board internal cache ports. By installing mSATA flash modules (optional purchase), the IOPS performance of storage volumes can be remarkably boosted. It is perfect for improving the overall workflow of random IOPS demanding applications such as databases and virtualization. The internal cache port design does not require the space of a hard drive tray to allow for more storage capacity.

10GbE ready

The TVS-1271U-RP offers four inbuilt Gigabit Ethernet ports and supports 10 Gigabit high speed networks by installing a 10GbE network adapter. The 10GbE-ready TVS-1271U-RP delivers lightning-fast data throughput and coupled with the support for a large storage capacity is perfect for data centers to store big data, excel in fast data transmission, and for editing large size videos on-the-fly without transferring the videos between the TVS-1271U-RP and desktop computers.

Seamless capacity expansion

The TVS-1271U-RP supports online capacity expansion by cascading multiple QNAP RAID expansion enclosures to meet the needs of growing business data. With the QNAP scale-up solution, raw storage capacity can be gradually expanded on demand. It is especially useful for video surveillance, data archiving, TV broadcast storage, and other large-data applications.

Use your TVS-1271U-RP with exclusive QvPC Technology

QNAP's exclusive QvPC Technology consolidates a number of high-end technologies including VM integration, multimedia transcoding, HDMI output, cloud integration and NAS connection technologies, allowing users to operate the TVS-1271U-RP when they plug in a keyboard, mouse and monitor. With QvPC Technology, the TVS-1271U-RP is transformed into a cost-effective PC substitute for users to directly access stored data, run multiple applications using Windows/Linux/UNIX/Android-based VMs, surf the web on Google Chrome or Mozilla Firefox, enjoy 4K or 1080p videos with up to 7.1 channel audio with XBMC, monitor Surveillance Station in real time with local display, and much more.

QTS - Simple and efficient

Thanks to QTS' intuitive user interface, system operations of the TVS-1271U-RP are smooth and handy. Its intelligent desktop allows you to find desired functions quickly, create desktop shortcuts or group shortcuts, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently, bringing greater working efficiency.

Powerful QNAP flexible volume

QNAP's flexible volume provides an easier and more secure way to store NAS data. This next-generation volume offers powerful features such as storage pooling with multiple RAID group protection, thin provisioned volume with space reclaim, block-level iSCSI LUN, and online capacity expansion. The QTS Storage Manager neatly presents tools and options for managing system storage which simplifies the process of NAS capacity expansion and QNAP RAID expansion enclosure management.

Cross-platform file sharing, centralized data storage

The TVS-1271U-RP supports SMB/CIFS, NFS, and AFP protocols for file sharing across Windows, Mac, and Linux/UNIX networks. Data, logs and ISO images of CDs and DVDs can be centrally stored on the Turbo NAS and protected by an integrated antivirus solution. The Windows AD and LDAP services enable system administrators to configure user permissions by using existing Windows AD server, LDAP server or NAS build-in LDAP services.

Well-rounded backup solutions to secure data

The QNAP NetBak Replicator supports real-time and scheduled data backup on Windows including Outlook email archiving. Apple Time Machine is also supported to provide Mac OS X users with a solution to effortlessly back up data to the TVS-1271U-RP.

Disaster recovery solutions brings peace of mind

The TVS-1271U-RP offers various data recovery options. RTRR (Real-Time Remote Replication) supports real time or scheduled data backup to a remote Turbo NAS or FTP server and synchronizes files to a remote folder from a local folder with better backup efficiency and reduced backup time. The TVS-1271U-RP also supports rsync protocol to back up data to another remote server on a scheduled basis. Data can also be backed up to and restored from a range of cloud storage services, including Amazon® S3, Amazon Glacier, Microsoft® Azure, ElephantDrive®, Symform®, Dropbox® and Google® Drive.

Comprehensive security options

In an open network environment, business data may be exposed in a potential hack. The TVS-1271U-RP provides numerous security options, such as encrypted access, IP blocking, and more. Besides, IT administrators can control the access rights of each user to different folders, preventing unauthorized access to important files. The TVS-1271U-RP is validated with military level FIPS 140-2 AES 256-bit encryption, preventing sensitive business data from unauthorized access and breach even if the hard drives or the entire system were stolen.

Full NAS encryption technology ensures data security

QNAP's full NAS encryption by volume-based technology effectively ensures data security by encrypting all of the files stored in the default shared folders on the TVS-1271U-RP. Even if the TVS-1271U-RP is encrypted, all the files can still be accessible via Windows SMB/CIFS, iSCSI, and NFS protocols. Users without permission to access the TVS-1271U-RP will be unable to access the stored files, hence data security risks and privacy leaks can be avoided.

Storage for comprehensive virtualization applications

The TVS-1271U-RP supports VMware® and Citrix®, and is compatible with Microsoft® Hyper-V™ and Windows Server 2012, benefiting flexible deployment and management in the virtualization environments. The TVS-1271U-RP supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced operational efficiency and management in virtualization applications.

Run multiple OS' on the TVS-1271U-RP

The Virtualization Station transforms the TVS-1271U-RP into a 2-in-a-box NAS that can function as an all-in-one NAS and a virtualization platform that supports multiple operating systems, fast virtual machine creation, virtual machine import/export, snapshot, and enables desktop operations on web browsers. With an easy-to-use interface, you can centrally manage all of the virtual machines created on the TVS-1271U-RP with minimal effort. You can also download VMs on demand from online VM markets and import them to TVS-1271U-RP without any complex procedure.

Optimize IT assets management with the IT Management Station

The IT Management Station, powered by Mandriva® Pulse, provides a flexible IT system management solution for managing multi-OS and multi-site IT assets for businesses of all sizes. By installing the IT Management Station on the TVS-1271U-RP, you can centrally manage multiple IT resources with numerous business applications including comprehensive inventory, centralized software deployment & updates, imaging, remote management & support, backup & restore, and more tasks with greater flexibility and productivity.

Highly-efficient storage solution for video editing

Digital film and video production produces a vast amount of data that requires high-performance RAID storage with sustainable throughput to balance with the demanding output of video editing. The TVS-1271U-RP fulfills storage and video editing needs with a high speed 10GbE network interface. Digital videos can be quickly stored and edited on the TVS-1271U-RP directly over the network.

File synchronization across multiple devices

The Qsync utility turns your TVS-1271U-RP into a safe data center for file synchronization with a large storage capacity. Any file uploaded to the TVS-1271U-RP will be made available for all linked devices, such as computers, laptops or mobile devices. Qsync is especially useful for frequent travelers to manage files and always have the most updated files on different devices. Qsync provides multiple ways of file synchronization and group file sharing, greatly enhancing the flexibility of collaboration.

Comprehensive surveillance solution with 24/7 security

The TVS-1271U-RP's Surveillance Station offers a professional surveillance solution with a user-friendly management interface, a wide range of over 2,700 compatible IP camera models, and expandable IP camera channel licenses. It supports real-time monitoring, video & audio recording and playback with a wide range of customizable settings. You can also install the Vmobile app on your iOS® or Android™ mobile devices to manage the monitoring channels anytime and anywhere to safeguard your office environment, or install the Vcam app to turn your mobile device into a network camera to instantly record any moment around you to your TVS-1271U-RP.

Install-on-demand apps extend NAS features

The TVS-1271U-RP has a built-in App Center that provides over 100 install-on-demand apps developed by QNAP and third-party developers, including tools for backup/sync, business, content management, communications, download, entertainment, and much more. It is also a centralized location for managing & updating installed apps. In addition, QNAP's development platform embraces the open-source spirit to enable developers to create their own apps, adding potentially limitless potential for the TVS-1271U-RP.

Specifications

Storage
Storage drives installed	No
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Number of storage drives supported	12
Hot-swap drive bays	Yes
RAID support	Yes
Supported file systems	ext3, ext4, FAT32, HFS+, NTFS
RAID levels	0, 1, 5, 6, 10, JBOD
Supported storage drive interfaces	Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
Processor
Processor generation	4th gen Intel® Core™ i5
Processor manufacturer	Intel
Thermal Design Power (TDP)	65 W
Tcase	71.35 °C
System bus rate	5 GT/s
Stepping	C0
Scalability	1S
Processor threads	4
Processor socket	LGA 1150 (Socket H3)
Processor package size	37.5 x 37.5 mm
Processor operating modes	64-bit
Processor lithography	22 nm
Processor codename	Haswell
Processor code	SR1QN
Processor cache type	Smart Cache
Processor cache	6 MB
Processor boost frequency	3.7 GHz
PCI Express slots version	3.0
PCI Express configurations	1x16, 2x8, 1x8+2x4
On-board graphics card model	Intel® HD Graphics 4600
ECC supported by processor	No
CPU configuration (max)	1
Bus type	DMI
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	25.6 GB/s
Conflict-Free processor	Yes
Processor ARK ID	80816
Processor frequency	3 GHz
Processor family	Intel® Core™ i5
Processor model	i5-4590S
Processor cores	4
L3 cache	6 MB
Memory
Internal memory type	DDR3
Internal memory	16 GB
Maximum RAM supported	32 GB
Memory slots	4
Flash memory	512 MB
Network
Link aggregation	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Wi-Fi	No
Wake-on-LAN ready	Yes
Supported network protocols	CIFS/SMB, SMB2.1, SMB3.0, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, SMSC
Jumbo frames support	Yes
iSCSI support	Yes
DHCP server	Yes
DHCP client	Yes
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 2.0 ports quantity	4
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	4
Hard drive
RAID support	Yes
Supported file systems	ext3, ext4, FAT32, HFS+, NTFS
RAID levels	0, 1, 5, 6, 10, JBOD
Graphics
On-board graphics card model	Intel® HD Graphics 4600
On-board graphics card ID	0x412
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	11.1
On-board graphics card base frequency	350 MHz
Maximum on-board graphics card memory	1.024 GB
Number of displays supported (on-board graphics)	3
Design
Cooling type	Active
Fan diameter	7 cm
Drive bay locking	Yes
Product colour	Black, Grey
Number of fans	3 fan(s)
LED indicators	Yes
Chassis type	Rack (2U)
Technical details
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Product colour	Black, Grey
Number of users	30 user(s)
Noise level	45 dB
Multilingual support	Yes
LED indicators	Yes
Chassis type	Rack (2U)
Buzzer	Yes
Number of fans	3 fan(s)
Performance
Built-in UPnP AV media server	Yes
Built-in FTP server	Yes
System log	Yes
Share folder access right management	Yes
Share folder	CIFS/SMB
S.M.A.R.T. support	Yes
Hot spare	Yes
Browser supported	Microsoft Internet Explorer 10+, Mozilla Firefox 8+, Apple Safari 4+, Google Chrome
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
On/off switch	Yes
Windows operating systems supported	Windows XP Professional
Server operating systems supported	Windows Server 2003
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Web-based management	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
Reset button	Yes
Operating system version	4.1
Operating system installed	QNAP Turbo System
Number of users	30 user(s)
Noise level	45 dB
Multilingual support	Yes
Buzzer	Yes
Access Control List (ACL)	Yes
Cooling
Cooling type	Active
Fan diameter	7 cm
Number of fans	3 fan(s)
Security
Drive bay locking	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
Access Control List (ACL)	Yes
Software
Windows operating systems supported	Windows XP Professional
Server operating systems supported	Windows Server 2003
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Operating system version	4.1
Operating system installed	QNAP Turbo System
Management features
On/off switch	Yes
Web-based management	Yes
Reset button	Yes
Power
Output current	7 A
Power supply location	Built-in
Power supply unit (PSU) capacity	500 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	174.64 W
Power consumption (sleep)	88.91 W
Number of power supply units	1
Power management	Yes
Weight & dimensions
Width	482 mm
Depth	534 mm
Height	89 mm
Weight	16.1 kg
Packaging content
Number of screws	28
Quick installation guide	Yes
Cables included	AC, LAN (RJ-45)
Processor special features
Thermal solution specification	PCG 2013C
Thermal Monitoring Technologies	Yes
Maximum number of PCI Express lanes	16
Intel® Wireless Display (Intel® WiDi)	Yes
Intel® Turbo Boost Technology	2.0
Intel® Smart Cache	Yes
Intel® Secure Key	Yes
Intel® Quick Sync Video Technology	Yes
Intel® OS Guard	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	0.00
Intel TSX-NI	No
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel Stable Image Platform Program (SIPP)	Yes
Intel Small Business Advantage (SBA) version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Intel FDI Technology	Yes
Intel Enhanced Halt State	Yes
Intel 64	Yes
Idle States	Yes
Graphics & IMC lithography	22 nm
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Embedded options available	Yes
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM
System requirements
Windows operating systems supported	Windows XP Professional
Server operating systems supported	Windows Server 2003
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Packaging data
Cables included	AC, LAN (RJ-45)
Other features
Processor ARK ID	80816
Power management	Yes
