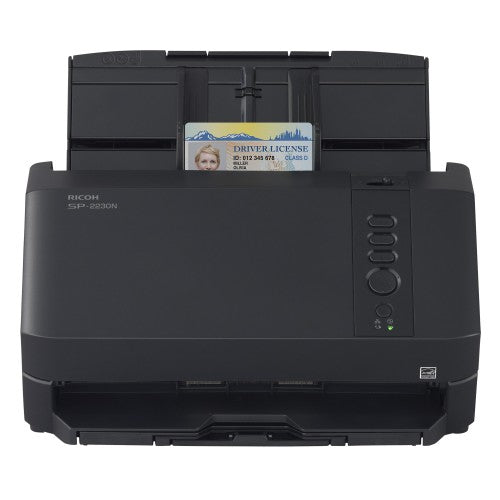

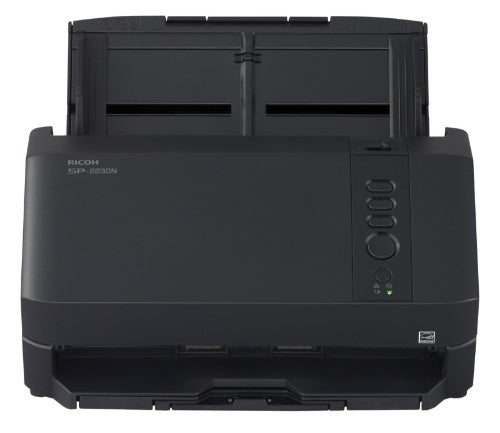

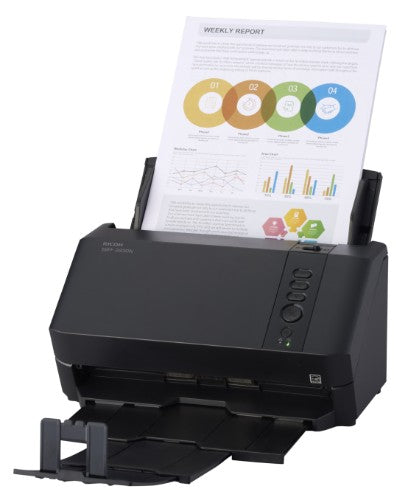

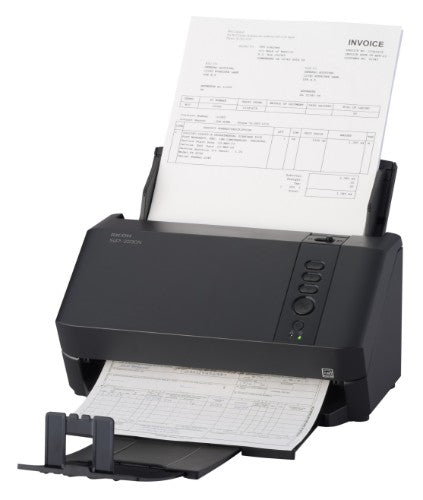

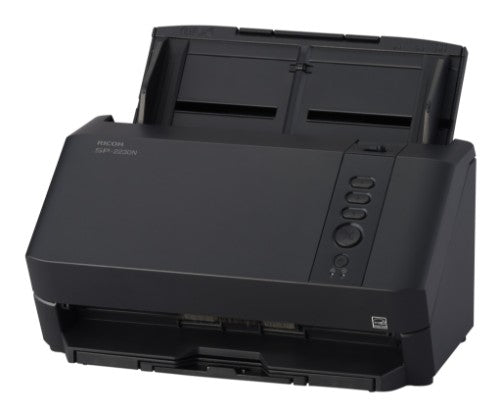

Ricoh SP-2230N ADF scanner 600 x 600 DPI A4 Black

30 ppm/60 ipm A4 Duplex ADF Gigabit Ethernet USB 3.2 LED Workgroup Scanner.

Reasons To Buy

Best in class performance

One of the best value scanners in its category incorporating image monitoring paper protection to safeguard documents.

Handles the widest range of documents

From till receipts to heavy folders and plastic cards to folded A3 documents. This scanner handles documents up to 216 x 360 mm in size, and weighing from 27 g/m² to 413 g/m².
There's also no need to pre-sort documents.
The 80-sheet capacity feeder can handle a mixture of many different document types - eliminating the requirement for batch sorting.

Class-leading quality

Clear Image Capture + PaperStream IP clean up and optimise every scan, delivering top-rated OCR accuracy and state-of-the-art image quality for PC-Based operation.
Similarly, Clear Image Capture + iiGA SoC technology deliver full OCR capability and unmatched results for PC-Free scanning

Scan direct to the Cloud

Enhanced PaperStream ClickScan technology means scans can be uploaded direct to the Cloud at the touch of a button.

PC-Free scanning for multiple users

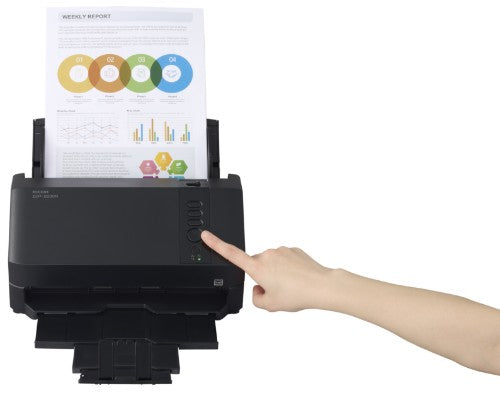

DirectScan enables any user to instantly scan & deliver searchable PDFs to up to three pre-programmed destinations simply by pressing one of the buttons on the scanner itself.

Description

Whether scanning to cloud, network or PC, the RICOH SP-2230N Scanner combines affordability and class-leading performance. State-of-the-art image quality leads to top-rated OCR accuracy. This model also boasts image-monitoring paper protection and the ability to handle a wide range of document types. The RICOH SP-2230N delivers compact, efficient and reliable PC-based or PC-free scanning at 30 ppm.

Specifications

Scanning
Output greyscale depth	8 bit
Output monochrome depth	1 bit
Background colours	White
Maximum scan size	215.9 x 6096 mm
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Output colour depth	24 bit
ADF scan speed (b/w, A4)	30 ppm
Duplex ADF scan speed (b/w, A4)	60 ipm
Sensor type	Dual CIS
Light source	RGB LED
Design
Built-in display	No
Scanner type	ADF scanner
Product colour	Black
Performance
Sensor type	Dual CIS
Light source	RGB LED
Ultrasonic sensor	Yes
Input capacity
Auto document feeder (ADF) input capacity	80 sheets
Paper handling
Maximum scan length	6.1 m
Maximum ISO A-series paper size	A4
Scanning media types supported	Plain paper, Business Card, Post Card(JPN)
Letter	Yes
Legal	Yes
ISO B-series sizes (B0...B9)	B5, B6
ISO A-series sizes (A0...A9)	A4, A5, A6
Long-paper mode	Yes
Card thickness (max)	1.4 mm
Paper tray media weight	27 - 413 g/m²
Ports & interfaces
USB port	Yes
USB version	3.2 Gen 1 (3.1 Gen 1)
Network
Ethernet LAN	Yes
Software
Windows operating systems supported	Windows 11 x64
Server operating systems supported	Windows Server 2022, Windows Server 2016, Windows Server 2019
Bundled software	PaperStream IP, PaperStream Capture, PaperStream ClickScan, PaperStream Central Admin, PaperStream Central Admin Agent, Software Operation Panel, Error Recovery Guide
Power
Power consumption (typical)	15 W
Power consumption (standby)	0.1 W
Input voltage	100 - 240 V
Power supply type	AC
AC input frequency	50/60 Hz
Weight & dimensions
Width	292 mm
Depth	163 mm
Height	150 mm
Weight	3.3 kg
Package weight	4.7 kg
Packaging data
Package weight	4.7 kg
Quantity per pack	1 pc(s)
Packaging content
Cables included	USB
Bundled software	PaperStream IP, PaperStream Capture, PaperStream ClickScan, PaperStream Central Admin, PaperStream Central Admin Agent, Software Operation Panel, Error Recovery Guide
Media formats
Letter	Yes
Legal	Yes
ISO B-series sizes (B0...B9)	B5, B6
ISO A-series sizes (A0...A9)	A4, A5, A6
Sustainability
Sustainability certificates	ENERGY STAR
Technical details
Scanner type	ADF scanner
Product colour	Black
Sustainability certificates	ENERGY STAR
System requirements
Windows operating systems supported	Windows 11 x64
Server operating systems supported	Windows Server 2022, Windows Server 2016, Windows Server 2019
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	15 - 80%
Other features
Background colours	White
Ethernet LAN	Yes
Scanner type	ADF scanner
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
