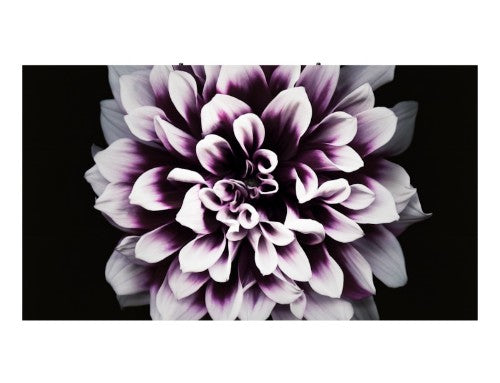

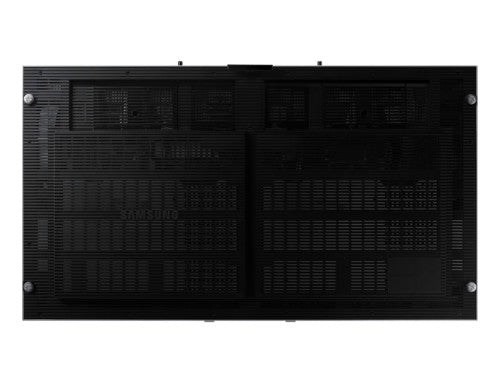

Samsung LH012IWJMWS LED Indoor

IP20, 1.26 mm, 640x360, Flip-chip RGB LED (225*125), 800 nit, 10000:1, 160/140°, 6500K+-500K (floating Bin), 50/60Hz, 100~240VAC, 410.1 W/㎡, 3840Hz

Key Features

• See the Greatness
• Ultra Chroma Technology
• Quantum HDR Technology

Description

See the Greatness
The Wall is a new generation of display technology delivering an exclusive experience. Inspired by emotion. Powered by intelligence.

Black Seal Technology
The fusion of an exceptionally black base with specialized Black Seal Technology, delivers deep black levels for intense contrast and immaculate detail. This technology also helps protects the screen from impact and dust, even at close proximity.

Ultra Chroma Technology
The Wall’s Ultra Chroma Technology produces vibrant, yet natural colours for a true-to-life visual experience. A narrower wavelength of colour results in higher colour purity, approximately two times better than Samsung conventional LEDs, for more precise and accurate colour presentation.

Quantum HDR Technology
The Wall utilizes advanced HDR picture refinement technologies – LED HDR, HDR10+ support and Multi-link HDR – to render optimum peak brightness and contrast in every single scene for precise, true-to-life imagery.

Infinity design
The Wall seamlessly blends into its surroundings with a slim, bezel-less design. Furthermore, The Wall’s frame features a refined, subtle-but sleek finish.

Modular technology
A modular form factor allows The Wall’s size, shape and ratio to be customized to your spatial and aesthetic needs. Whether it’s a spacious lobby or a private home theater, The Wall gives creative freedom to make optimal use of any space.

Total ecosystem
The Wall provides a total display solution for any business. Samsung’s MagicINFO solution provides device and content management capabilities for convenient access and operation.

Specifications

Display
Display technology	LED
Display resolution	640 x 360 pixels
LED backlighting type	Direct-LED
Pixel pitch	640 x 360 mm
Display brightness	800 cd/m²
Contrast ratio (typical)	10000:1
Native refresh rate	3840 Hz
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	High Dynamic Range 10+ (HDR10 Plus), Quantum HDR
Viewing angle, horizontal	160°
Viewing angle, vertical	140°
Design
Placement supported	Indoor
Orientation	Horizontal
Wall mountable	Yes
VESA mounting	No
International Protection (IP) code	IP20
Product colour	Black
Purpose	Universal
Ports & interfaces
HDMI ports quantity	2
DVI port	No
Ethernet LAN	Yes
USB port	No
Wi-Fi	No
Power
Power consumption (typical)	120 W
Power consumption (standby)	150 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Heat dissipation	410 BTU/h
Technical details
Package volume	0.11 cm³
Harmonized System (HS) code	85285210
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 45 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 95%
Logistics data
Harmonized System (HS) code	85285210
Sustainability
Certification	EMC Class B, Safety 60950-1
Weight & dimensions
Width	806.4 mm
Depth	72.2 mm
Height	453.6 mm
Weight	12.2 kg
Packaging data
Mounting kit	Yes
Package width	940 mm
Package depth	587 mm
Package height	199 mm
Package weight	16.6 kg
