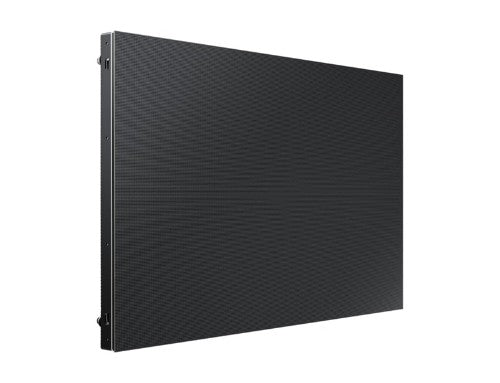

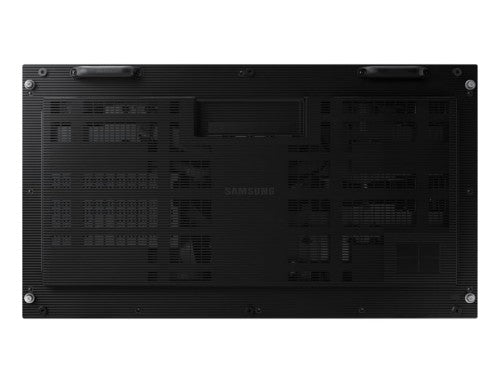

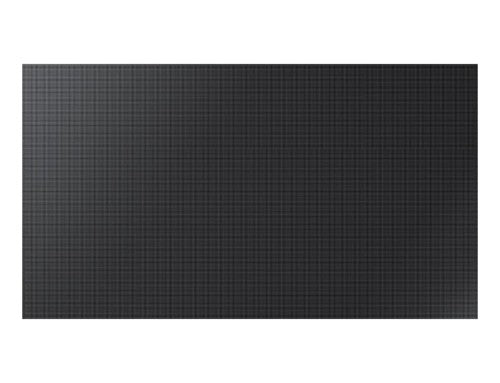

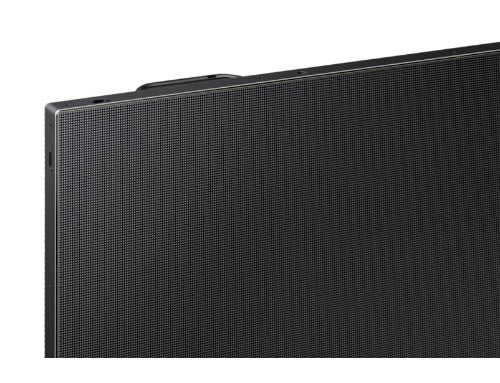

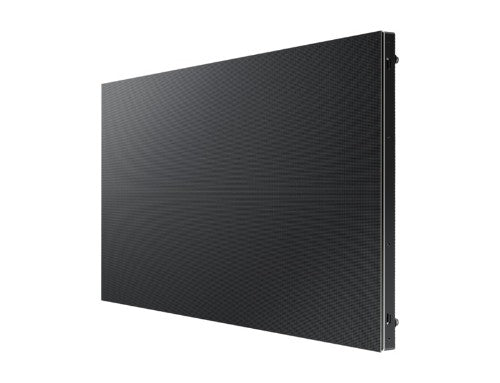

Samsung LH025IERKLS Transparent (mesh) LED Indoor

IER Indoor LED, 384 x 216 px, 2.5 x 2.5 mm, 600 cd/m², 6500 K, 3840 Hz, 160°/160°

Key Features

• Captivate potential customers
• Easier, cost-saving installation
• Flexible design

Description

Captivate potential customers
Samsung’s IER series LED displays deliver stunning picture quality at a cost-efficient price point. These displays can be custom-fit for the specific space requirements, giving customers a more immersive experience.

Easier, cost-saving installation
The IER series supports two cabinet types. One version features a larger, lighter screen compared to conventional cabinets, simplifying installation. The other is a quarter of the size and provides more flexibility in design.

Flexible design
The IER series’ advanced design provides flexibility for any indoor retail or other business environment. With support of portrait and landscape orientation — and even curved and l-shaped installations — content can be displayed to meet the preferred layout for any store location.

Clearly refined visuals
LED HDR leverages advanced refinement technologies for true-to-life picture presentation. Dynamic Peaking and Inverse Tone Mapping enhance content to optimum peak brightness levels with improved contrast and without shine, and in-depth Colour Mapping ensures an accurate expression of colours.

Accurate colour in low brightness arenas
Conventional LED displays struggle to present red, green and blue colour hues accurately in low grayscale settings. The IER series overcomes these challenges through a unique algorithm that maintains R/G/B gradation and delivers precise, detail-rich hues in low-brightness indoor environments.

Fine-tuned uniformity
Rigorous factory calibration and real-time DSLR camera sub-pixel calibration fine-tune all sub-pixels for uniform brightness and colour chromaticity. When coupled with the Samsung LED Signage Manager’s advanced picture settings, this enhanced treatment produces an excellent presentation.

Streamlined UHD content delivery
Samsung’s compatible S-Box condenses the delivery of compelling content to a single, centralised device. The S-Box transmits UHD content across multiple IER series displays without requiring external boxes or splitters, helping businesses enjoy faster and more cost-efficient operations.

Manage content and devices anywhere
Compatibility with the MagicINFO platform enables IER series users to create, schedule and deploy content across an entire signage network. Users likewise can monitor and adjust display settings and troubleshoot potential performance issues from any location via remote access.

Specifications

Display
Display technology	Transparent (mesh) LED
Display resolution	384 x 216 pixels
Pixel pitch	2.5 x 2.5 mm
Display brightness	600 cd/m²
Colour temperature (max)	6500 K
Contrast ratio (typical)	3000:1
Native refresh rate	3840 Hz
Viewing angle, horizontal	160°
Viewing angle, vertical	160°
Design
Placement supported	Indoor
Orientation	Horizontal
Stackable	Yes
International Protection (IP) code	IP20
Power
Power consumption (max)	365 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
