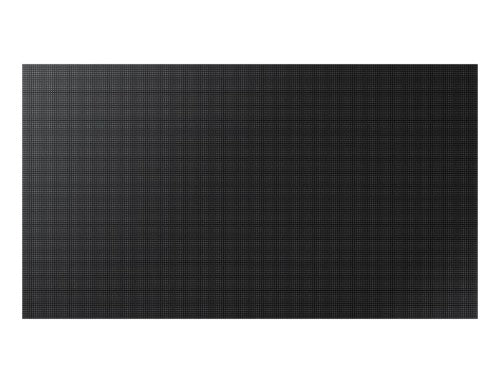

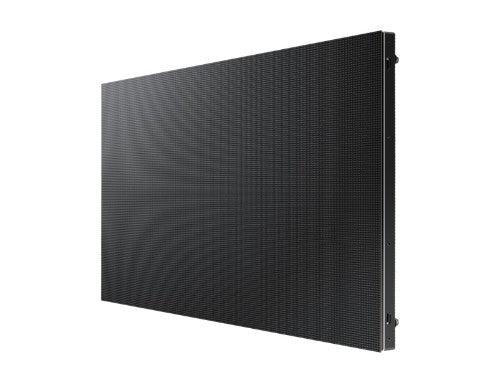

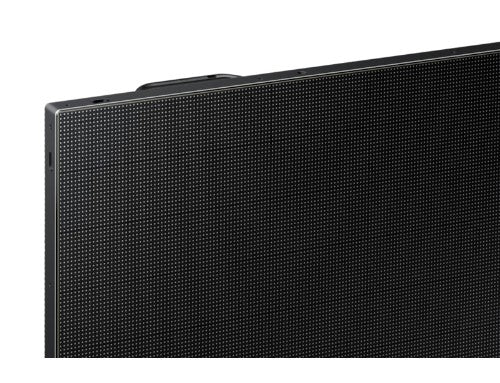

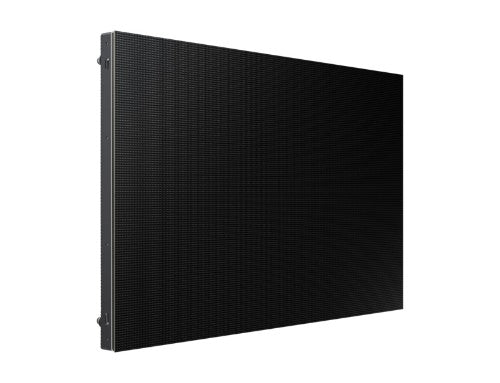

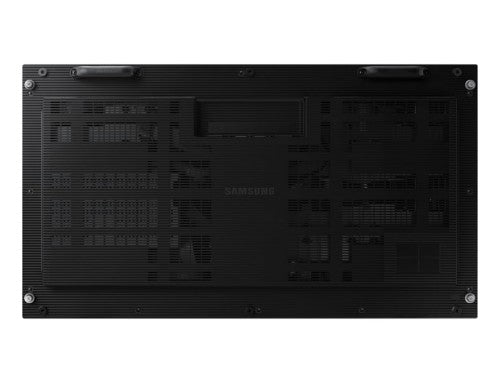

Samsung LH040IFRBLS Transparent (mesh) LED Indoor

IFR Indoor LED, 240 x 135 px, 4 x 4 mm, 900 cd/m², 6500 K, 3840 Hz, 160°/160°

Key Features

• Best-in-class picture quality
• Flexible design
• Efficient operation

Description

Completely captivating. Fully flexible.
LED signage has become an increasingly popular tool for businesses to deliver compelling messages to customers. Samsung’s IFR series combines best-in-class LED picture quality, flexible design options and efficient operation in any environment.

Best-in-class LED picture quality
Drawing on Samsung’s industry leadership experience and years of innovation in visual display technology, the displays produce images with vivid colour expression, reduced noise and a full range of greys and blacks.

Clearly refined visuals
LED HDR turns any content into HDR-level without requiring special metadata. Dynamic Peaking and Inverse Tone Mapping enhance content to optimum brightness levels while avoiding glare, and Colour Mapping ensures an accurate colour presentation.

Pin-sharp clarity, bright or dark
Discover the true beauty no matter how bright or dark a scene is. The IFR series supports HDR10+ which optimises brightness and contrast ratio scene-by-scene to ensure each frame looks exactly as intended.

HDR experience in large scale
With Multi-link HDR technology, IFR series delivers more impactful content than ever before, providing HDR quality content up to 8K resolution. Multi-link HDR turns any content into HDR-level and is a flexible solution that can be applied to various layouts and screen sizes with less cabling.

Flexible design for any location
IFR series features two cabinet types of differing sizes to provide more flexibility in design. With support of portrait, landscape, curved and L-shaped installations, businesses can have ultimate control to create the ideal display for their space.

Screen uniformity all the time
On-site PC and mobile calibration combined with multi-step factory calibration tunes the whole screen of LED displays to uniform brightness and colour. Colour Expert LED Mobile provides a quick and easy calibration, requiring nothing more than a mobile phone and a Wi-Fi connection.

Seamless, smooth content playback
Frame rate synchronization guarantees smooth content without screen tearing when multiple S-boxes are connected. This means users can enjoy almost perfectly smooth playback even when combining or splitting content across cabinets.

Specifications

Display
Display technology	Transparent (mesh) LED
Display resolution	240 x 135 pixels
Pixel pitch	4 x 4 mm
Display brightness	900 cd/m²
Colour temperature (max)	6500 K
Contrast ratio (typical)	5000:1
Native refresh rate	3840 Hz
Viewing angle, horizontal	160°
Viewing angle, vertical	160°
Design
Placement supported	Indoor
Orientation	Horizontal
Stackable	Yes
International Protection (IP) code	IP20
Power
Power consumption (max)	510 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
