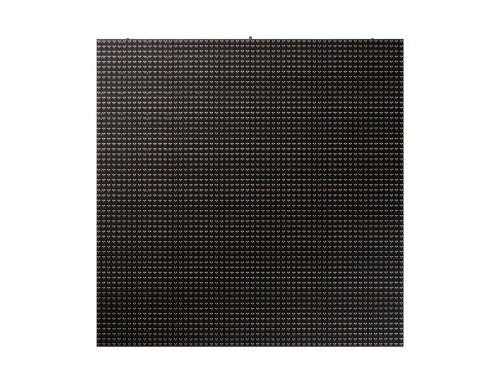

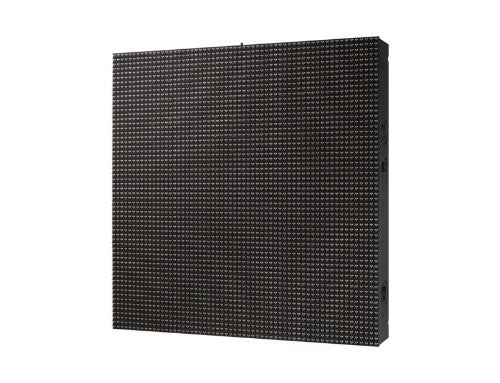

Samsung LH160XPRTAE LED Outdoor

4200W, 15A, 1000 x 1000 x 272.6 mm, 42.8 kg

Key Features

• Enhanced visual solution for outdoors
• Exceptional picture quality
• Fully customizable design

Description

Proven visuals. Built to perform.
Samsung’s XPR series is ideal for a wide range of outdoor applications, from sports stadiums to dynamic outdoor advertising environments. This display features clear visibility with even more reliability.

Exceptional picture quality
The XPR series delivers clear, brilliant images and prevents distortion and interruptions, no matter where they are installed. Eye-catching brightness combined with a high refresh rate, means visuals are clearly visible in any weather or lighting conditions.

Fully customisable design
With support for customised design, you can get the exact shape, size and bend for your display to meet any specifications. Curved walls, L-shaped or completely bespoke – with the XPR series, you have endless options.

Integrated operational safeguards

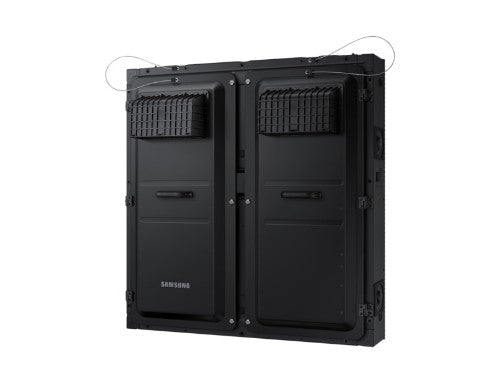

The XPR series features multiple operational safeguards to prevent errors and interruptions. Even if there’s an issue with the control board, the displays will not black out. The displays also protect against power disruption as each power supply unit is coupled with a back-up.

Built for the elements

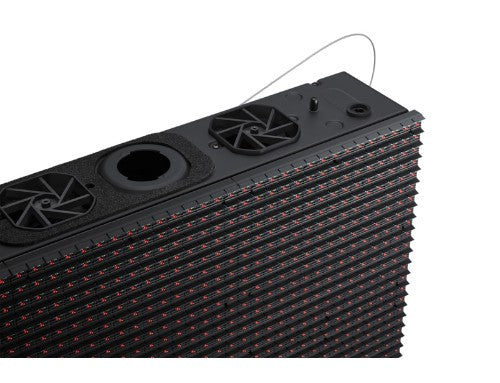

The XPR series features an advanced heat dissipation mechanism to prevent overheating. The cabinets are also IP66 rated both front and back, while the cabinet and components inside are waterproof for added reliability in any weather conditions.

Rigorous performance testing
The XPR series has been rigorously tested against the elements including accelerated lifecycle test, real-life operation tests in wet environments and simulations replicating the harshest sunlight to ensure the displays can withstand even the toughest environments.

Specifications

Display
Display technology	LED
Display diagonal	4.06 m (160")
Display resolution	60 x 60 pixels
Active display area (W x H)	3.9 x 3 mm
Pixel pitch	16 x 16 mm
Native refresh rate	60 Hz
Design
Placement supported	Outdoor
Orientation	Horizontal
International Protection (IP) code	IP66
Product colour	Black
Power
Power consumption (max)	4200 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Operational conditions
Operating temperature (T-T)	-40 - 55 °C
Storage temperature (T-T)	-40 - 55 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	1000 mm
Depth	272.6 mm
Height	1000 mm
Weight	42.8 kg
