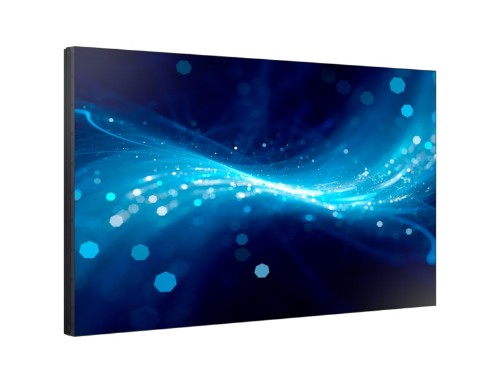

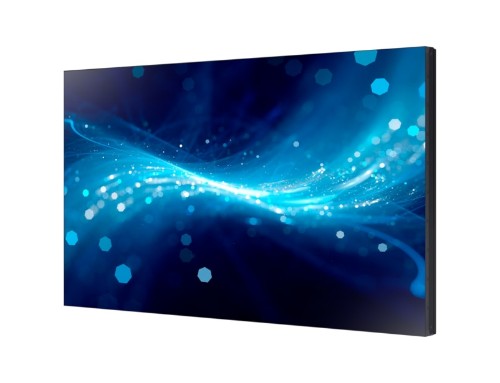

Samsung LH46UMNHLBB/EN video wall display Direct view LED (DVLED) Indoor

46", 1920 x 1080, 500 nit, 148.5 MHz, 8 ms, HDMI x 2, USB x 1

Key Features

• Deliver deeper visual impact
• Amplify image clarity in any environment
• Extend content presentation capabilities

Description

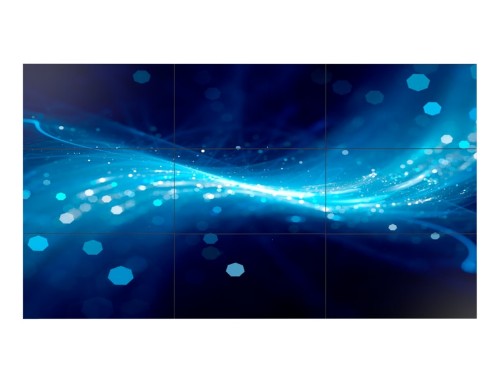

Deliver deeper visual impact Samsung’s narrow bezel video wall features bezel–to-bezel width of 1.7 mm that minimizes the visual distraction of video walls to elicit impacting imagery of products. The display produces a near-seamless picture across multiple screens without interruption, captivating and impressing customers. Amplify image clarity in any environment Combined with a non-glare panel, the extreme narrow bezel video wall display is designed to help businesses create memorable content presentation even under ambient light. This panel evenly distributes light throughout the screen, eliminating glare while maintaining content vibrancy and accuracy. Extend content presentation capabilities Samsung†s video wall offers a powerful UHD viewing experience with minimal effort or additional equipment. As the first in the industry to have up to 5x5 wall configuration based on the use of DisplayPort 1.2 and HDMI ports, the display can project UHD content across multiple screens simultaneously. Share accurate and uniform content Samsung’s multi-step factory calibration process tunes video walls to uniform brightness and color throughout multiple displays. In addition to rigorous factory calibration, users can also manage brightness and color uniformity with Samsung†s Color Expert Pro, a powerful free software program. Cost saving mobile calibration with ease Samsung’s Color Expert Pro Mobile solution provides a quick and easy video wall calibration through a mobile camera. With the solution’s intuitive UI, even non-expert users can adjust up to 5x5 video wall’s white balance simultaneously without the need for additional equipment. Enjoy continuous, long-term performance Samsung’s extreme narrow bezel video walls are engineered for long-term performance, eliminating maintenance expenses for users. The display features durable panels that offset backlight discrepancies while simultaneously protecting the display against heat and dust exposure. Reliable content delivery for business Designed to maintain performance in various indoor environment conditions, Samsung†s video wall produces an engaging viewing experience with the elevated contrast ratios and brightness. With continuous 24/7 operations, the display enables vivid and reliable content delivery for every business need. All-in-one box with versatile usability Backed by a Quad Core CPU, Signage Player Box allows for multi-source switching and a media player to coexist in a single box. Leveraging the embedded Samsung SMART Signage Platform, the box transforms video walls for faster information processing and easy content management with MagicINFO solution. Highly configurable wall mounts The user-friendly special wall mounts ensure easy installation of video walls through minimal steps. Sized to the dimensions of the video wall, the wall mount allows users to install the mount first and fit into the video wall, eliminating tedious efforts to measure and adjust the wall mount size.

Specifications

Display
Display technology	Direct view LED (DVLED)
Display diagonal	116.8 cm (46")
Display resolution	1920 x 1080 pixels
HD type	Full HD
Pixel pitch	0.53 x 0.53 mm
Display brightness	500 cd/m²
Contrast ratio (typical)	4000:1
Response time	8 s
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Colour gamut	72%
Design
Placement supported	Indoor
Bezel width (top)	1.15 mm
Bezel width (side)	1.15 mm
Bezel width (bottom)	0.55 mm
VESA mounting	Yes
Panel mounting interface	600 x 400 mm
Ports & interfaces
HDMI ports quantity	2
HDMI input ports quantity	2
DVI port	Yes
VGA (D-Sub) input ports	1
DisplayPorts quantity	1
DisplayPorts in	1
Ethernet LAN (RJ-45) ports	1
USB port	Yes
RS-232C	Yes
USB ports quantity	1
Power
Power consumption (typical)	143 W
Power consumption (standby)	0.5 W
Energy efficiency class (SDR)	A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Weight & dimensions
Width	1020 mm
Depth	96.3 mm
Height	574.6 mm
Weight	15.7 kg
Packaging data
Package width	1153 mm
Package depth	295 mm
Package height	719 mm
Package weight	21.6 kg
