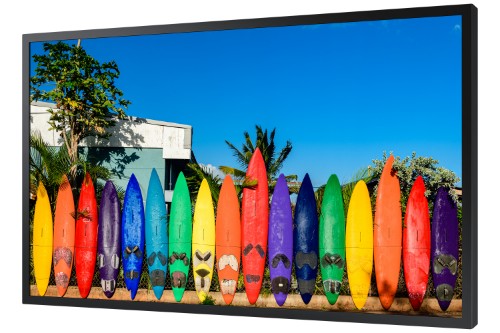

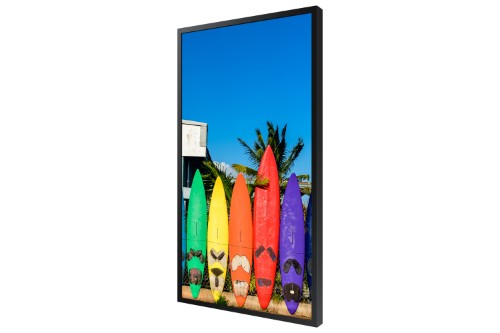

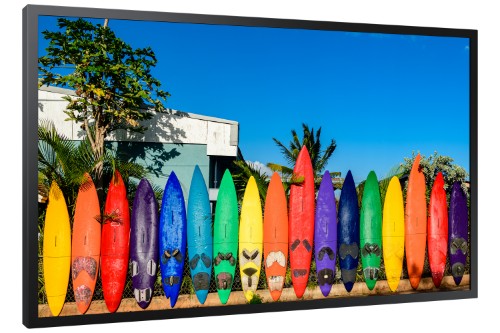

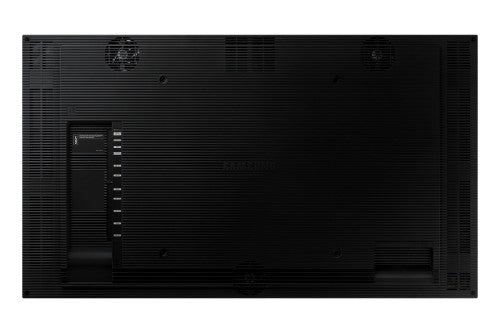

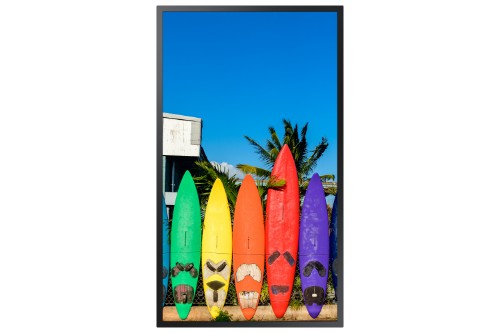

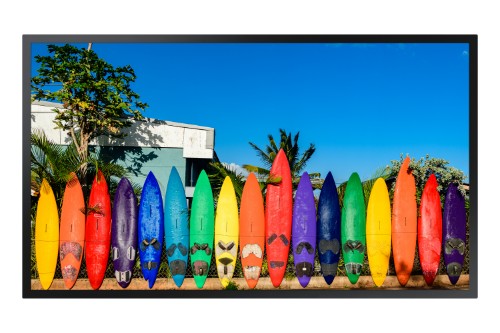

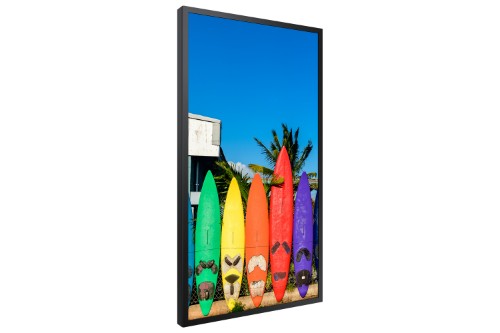

Samsung OM55B Digital signage flat panel 139.7 cm (55") LCD Wi-Fi 3000 cd/m² 4K Ultra HD Black Built-in processor Tizen 5.0 24/7

Promote content in any storefront window
Samsung’s OM46B was designed with a storefront window display in mind. It projects clear, bright images that attract and engage audiences, increasing the probability of an in-store visit.

Foster brilliant presentation for all
Even in direct sunlight, the OM46B delivers exceptional picture quality with optimal brightness and high contrast ratio for an uncompromised customer

Marvel at the lifelike colour expression
Dynamic Crystal Display
Immerse your customers in every picture with a wider range of colour. Dynamic Crystal Display creates lifelike images allowing the viewer to see even the subtlest details.

Modernise space with slim design
Supporting the best-in-class picture quality is a slim design that complements the surroundings of any retail environment, while freeing up valuable space for all those latest products.

Streamline content management
Samsung’s embedded MagicINFO Player boosts performance, simplifies content management and offers seamless content playback.

Durable Performance
With IP5X-validated dust protection and embedded, proprietary functionality that mitigates overheating, the OMB series continuously provides robust durability.

Clutter-Free Configuration
Cable guide and embedded Wi-Fi provide clean, organised look and allow for content and firmware updates without the need for additional messy cables.

,

Display
Panel type	ADS
Dynamic contrast ratio marketing name	Mega Contrast
Touchscreen	No
Display technology	LCD
Colour gamut	72%
Display diagonal	139.7 cm (55")
Display resolution	3840 x 2160 pixels
Display brightness	3000 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.315 x 0.315 mm
Vertical scan range	24 - 75 Hz
Horizontal scan range	15 - 135 kHz
Haze rate	1%
RGB colour space	NTSC
Pixel frequency (max)	594 MHz

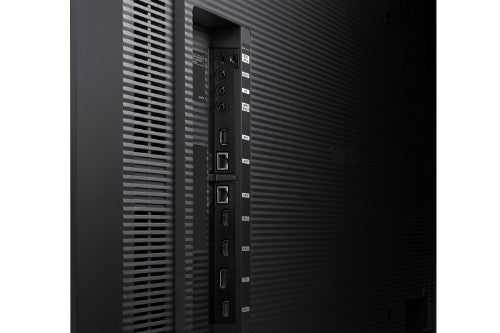

Ports & interfaces
Remote (IR) input	1
DisplayPort version	1.2
USB port	Yes
DisplayPorts in	1
HDMI version	2.0
Infrared data port	Yes
Wi-Fi	Yes
DisplayPorts quantity	1
Ethernet LAN	Yes
HDMI ports quantity	2
DVI port	No
Ethernet LAN (RJ-45) ports	2
RS-232 interface	Yes
USB ports quantity	1
HDMI input ports quantity	2
Design
Product design	Digital signage flat panel
Bezel width (top)	1.91 cm
Bezel width (side)	1.91 cm
Bezel width (bottom)	1.91 cm
Product colour	Black
Panel mounting interface	400 x 400 mm
Certification	EMC Class A, Safety 60950-1
VESA mounting	Yes
Screen shape	Flat
Bezel colour	Dark Blue Gray
Wall mountable	Yes
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
HDCP	Yes
HDCP version	2.2
Wi-Fi	Yes
Power
Power consumption (sleep)	0.5 W
Power consumption (typical)	450 W
AC input voltage	100 - 240 V
AC input frequency	50 / 60 Hz
Computer system
Computer system	Yes
Computer system type	System on Chip (SoC)
Operating system installed	Tizen 5.0
Built-in processor	Yes
Weight & dimensions
Display width	1253.4 mm
Display depth	54.5 mm
Display height	724.2 mm
Display weight	23.1 kg
Packaging data
Package width	1420 mm
Package depth	178 mm
Package height	879 mm
Package weight	29.1 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Certificates
Certification	EMC Class A, Safety 60950-1
Technical details
VESA mounting	Yes
Panel type	ADS
DisplayPort version	1.2
RJ-45 output ports	1
RJ-45 input ports	1
Video out	Yes
DisplayPorts in	1
RS-232 output ports	1
RS-232 input ports	1
Audio out (mini jack)	Yes
Audio in (mini jack)	No
Thin Client
Operating system installed	Tizen 5.0
Features
Wall mountable	Yes
Other features
Panel type	ADS
DisplayPort version	1.2
RJ-45 output ports	1
RJ-45 input ports	1
Video out	Yes
DisplayPorts in	1
RS-232 output ports	1
RS-232 input ports	1
Wi-Fi	Yes
Flash memory	8000 MB
Display technology	LCD
Bezel width (top)	1.91 cm
Bezel width (side)	1.91 cm
Bezel width (bottom)	1.91 cm
