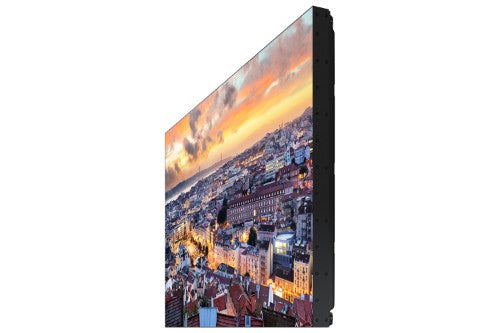

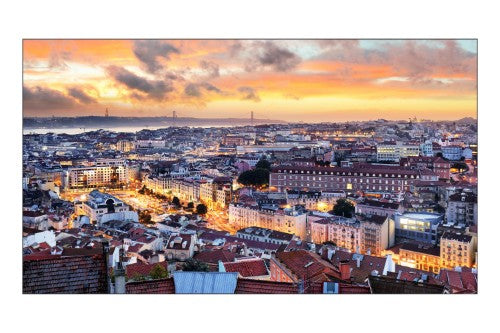

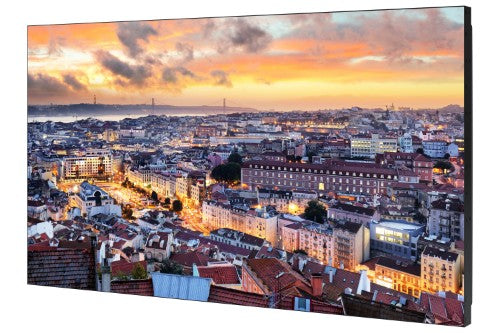

Samsung VH55B-E LCD Indoor

55", Full HD (1920 x 1080), 0.63 x 0.63, 1000:1, 178/178, AC 100 - 240 V, 50/60 Hz, 250 W, VESA 600 x 400, 1212.2 x 683 x 70.4 mm

Key Features

• An extreme narrow 1.74mm bezel-to-bezel design creates seamless visual experience
• 700 nit brightness and non-glare panel provide high visibility 24/7
• Wide viewing angles enable clear image presentation for more viewers in large spaces
• Picture enhancement technology delivers optimized visuals

Description

Always-on, space-saving solution with extreme-narrow bezels
See an immersive and dependable viewing experience, 24/7 with Samsung’s VHB-E series. The display’s slim depth and 700 nit brightness ensures highly visible images and legible messages in a wide range of locations from shopping malls to lobbies, meeting rooms, control rooms and more.

Transform any space with high impact visuals
The slender design and 70.4mm cabinet depth provide flexibility for installation and an extreme-narrow 1.74mm bezel-to-bezel width creates a seamless picture opening endless possibilities for designing a captivating visual experience.

View content from any angle
Wide viewing angles mean content is easily visible even if viewers aren’t standing directly in front of the display. Audiences can get clear details and vivid colors regardless of where the screen is located.

Vibrant images in any light
Non-glare panels evenly distribute light across the screen to maintain vibrant and accurate content. Combined with a high contrast ratio and 24/7 operation, visuals are vivid and eye-catching any time of the day or night — regardless of ambient light.

Image enhancement
Samsung’s powerful picture enhancement technology ensures all content is vibrant and clear. With Picture Enhancer mode, color saturation and contrast are improved by adjusting the gamma curve. Using Black Equalizer mode, dark images are lightened, making details easier to see.

Comprehensive calibration to fit your needs
Multi-step factory tuning provides uniform brightness and color. Users can also fine-tune advanced settings with free powerful Color Expert Pro software. For quick and simple calibration, Color Expert Pro Mobile enables white balance adjustments for displays up to 5x5 using a mobile camera.

Advanced presentation, simplified operation
Utilizing daisy chain design through DisplayPort 1.2 or HDMI ports enables the display to present UHD content on multiple screens without an external graphic card. Samsung's UHD Signage Player Box streamlines functionality by combining the media player and content management software.

Industry standard certified
The VHB-E series is EMC class B compliant, meeting strict standards of electromagnetic wave emission, while IP5x certification protects the display against dust and other conditions. The display packaging also passed a rigorous 2-step, ISTA-certified test to minimize possible damage during delivery.

Specifications

Display
Display technology	LCD
Display diagonal	139.7 cm (55")
Display resolution	1920 x 1080 pixels
HD type	Full HD
Panel type	IPS
Pixel pitch	0.63 x 0.63 mm
Display brightness	700 cd/m²
Contrast ratio (typical)	1000:1
Response time	0.008 s
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Colour gamut	72%
Operating hours (hours/days)	24/7
Haze rate	28%
Contrast ratio (dynamic)	140000:1
Horizontal scan range	57.3 - 70 kHz
Vertical scan range	47 - 63 Hz
Design
Placement supported	Indoor

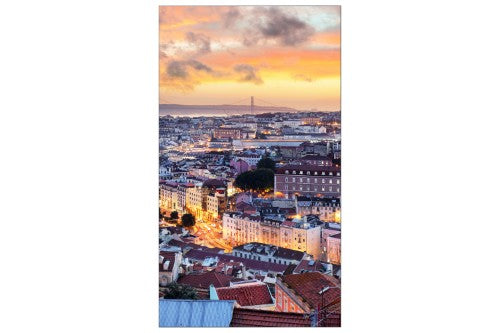

Orientation	Horizontal/Vertical
Bezel width (side)	0.44 mm
Bezel width (bottom)	1.3 mm
VESA mounting	Yes
Panel mounting interface	600 x 400 mm
International Protection (IP) code	IP5X
Panel colour	Black
Product colour	Black

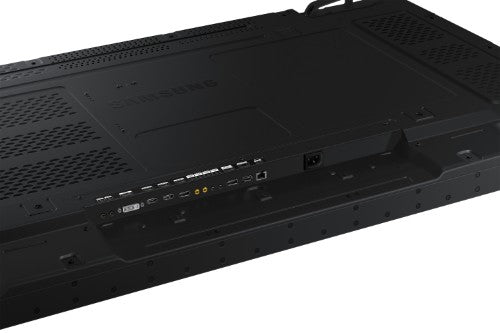

Ports & interfaces
HDMI ports quantity	2
DVI port	Yes
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
USB port	Yes
RS-232C	Yes
USB ports quantity	1
USB version	2.0
HDCP version	2.2
HDCP	Yes
RS-232 output ports	1
RS-232 input ports	1
IR input ports quantity	1
Audio output	Yes
Audio input	Yes
HDMI version	2.0
DisplayPort version	1.2
Power
Power consumption (typical)	250 W
Energy efficiency class (SDR)	G
Energy consumption (SDR) per 1000 hours	186 kWh
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Sustainability
Certification	FCC (USA) Part 15, Subpart B Class B CE (Europe) : EN 55032:2015+A11:2020 / EN 55035:2017+A11:2020 / EN IEC 61000-3-2:2019 / EN 61000-3-3:2013+A1:2019 VCCI (Japan) : VCCI-CISPR32 : 2015 KC (Korea) : KS C 9832 / KS C 9835 RCM (Australia/ Newzealand) : AS/NZS CISPR32:2015 CCC (China) : GB/T 9254-2008, GB 17625.1-2012 BSMI (Taiwan) : CNS 13438
Weight & dimensions
Width	1212.2 mm
Depth	70.4 mm
Height	683 mm
Weight	19.5 kg
Packaging data
Package width	1398 mm
Package depth	257 mm
Package height	844 mm
Package weight	27.1 kg
