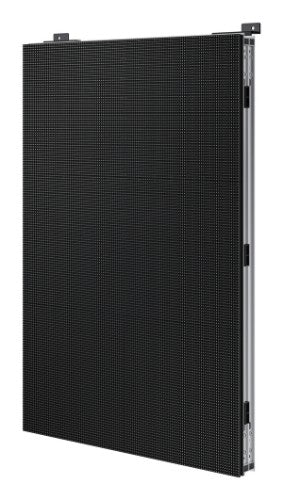

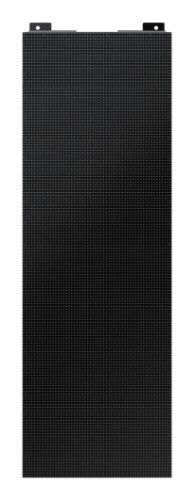

Samsung XHB100-EA

XHB100-E, 64 x 96 Pixel, 10.78 x 10.78 mm, XDC-Cu, 7000 cd/m², 7000:1, 160° / 107°, 6500K, 7680Hz, 50/60 Hz, 100~240VAC, IP66

Key Features

• Exceptionally clear and stunning picture quality even in the sun
• Business friendly energy saving for sustainable operations
• Reliable performance even in the toughest environments
• Easy and flexible installation for any scenario

Description

Make a lasting impression
Introducing Samsung XHB series: a reliable, attention-grabbing outdoor display designed to perform in any scenario. With consistently high brightness, XHB is the ideal solution to deliver clear and brilliant visuals day and night, whether it’s sunny or stormy.

Exceptionally clear, even in the sun
Enjoy stunning picture quality at all times. Featuring consistent brightness day and night, the XHB series illuminates the surrounding area, creating long-lasting impressions with crystal-clear content in any weather or lighting conditions.

Superior visuals powered by proprietary S-box
Experience crisp, controlled images in every scene. Equipped with Samsung’s powerful S-box full of the latest technology, the XHB series delivers immersive content to delight spectators anytime, anywhere.

Increase energy efficiency for sustainable operations
Make operations more efficient without compromising performance. XHB series runs at just 700 W/㎡, reducing power consumption up to 22.2% compared with conventional products. Its improved energy efficiency allows for a more sustainable business operation.

Reliable performance anywhere in the world
Protect against the elements. The IP66 waterproof design, rated for both the outside cabinet and internal components, ensures reliable use during downpours. Combined with fan-less, heat dissipation technology, XHB maintains performance even in direct sunlight for consistency in any outdoor environme

Tested to the extremes for guaranteed performance
The XHB series has been rigorously tested against the elements including accelerated lifecycle test, real-life operation tests in wet environments and simulations replicating the harshest sunlight to ensure the displays can withstand even the toughest environments.

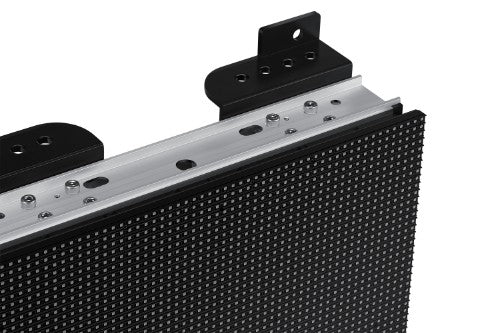

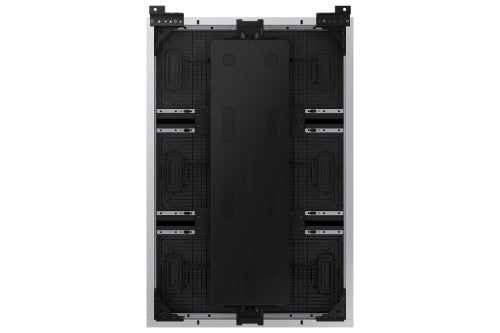

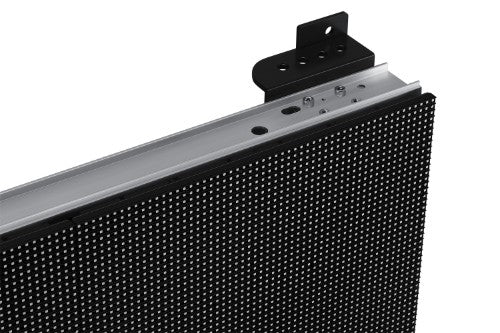

Twice as thin cabinet design
Set up and save time at half the size. The XHB series is now more than twice as thin and 1.7 times lighter than previous models. Its ultra-slim 99.4mm cabinet weighing just 23.8kg provides one-man handling for fast setup of the solution.

Flexible designs for any scenario

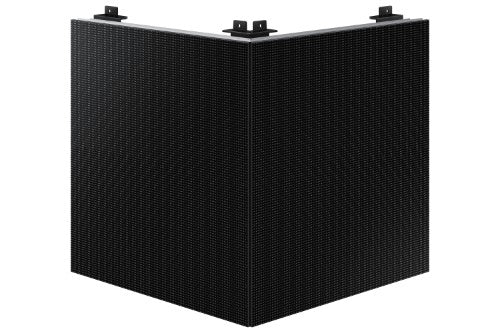

The XHB series provides endless design possibilities for any business environment. Thanks to a variety of bespoke cabinet options, including Flat, L-Type, Curve and Fascia, businesses can get the optimal shape, size and bend for their display to naturally blend into the environment.

Specifications

Display
Display resolution	64 x 96 pixels
Pixel pitch	10.78 x 10.78 mm
Display brightness	7000 cd/m²
Contrast ratio (typical)	7000:1
Native refresh rate	7680 Hz
Viewing angle, horizontal	160°
Viewing angle, vertical	107°
Colour temperature	6500 K
Diode type	XDC-Cu, 3-in-1 2727, Cu Pd
Design
International Protection (IP) code	IP66
Power
Power consumption (max)	840 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Technical details
Compliance certificates	Electromagnetic Compatibility (EMC), UL
Operational conditions
Operating temperature (T-T)	-40 - 55 °C
Operating relative humidity (H-H)	5 - 95%
