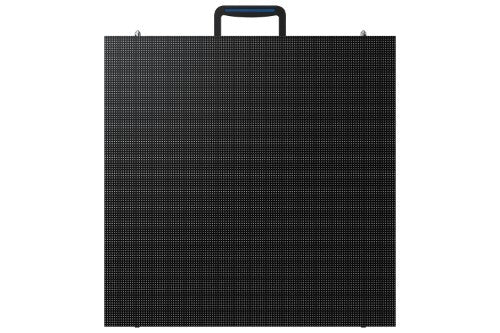

Samsung XR039B-X LED Outdoor

3.9 mm x 3.9 mm, 128 x 128, 5000 nit, 3840 Hz, 6500K±500K, 160/160°, IP 65, 100-240V 50/60Hz

Key Features

• Easy Maintenance
• Flexible designs
• High brightness

Description

Mesmerize passers-by with brilliant content
Meet the XRB series, the outdoor display optimized for delivery of information at a close distance. With crisp, clear visibility enabled by brilliant picture quality, the display captivates audiences while easy installation and maintenance improves business operation efficiency.

Clear, brilliant visuals
Catch the eye of passers-by with vibrant visuals. Featuring 5,000nit brightness, the XRB series is clearly visible even in direct sunlight, providing flawless content when viewed from close distance whether a customer is just passing by or walking into the store.

Compact design that allows for effortless installation
Install with ease. Samsung’s XRB series now offers much simpler and easier installation, meaning the display can be up and running quicker than ever before. The two cabinets, weighing only 7.8kg or 14kg, are super slim at just 64mm thick, allowing one-man handling for even faster setup.

Flexible installation for any location
A variety of installation options make the XRB series an optimal solution for any business needing an outdoor display. Multiple accessories are provided to enable easy setup of displays across a versatile range of environments, including hanging, stacking and L-type installation.

Simple, practical maintenance
With all components being detachable – from the power box to the modules – the XRB series supports full front and rear service, making maintenance simpler and more practical even in limited spaces, while ensuring minimal business downtime.

Optimum performance in any environment
Built to withstand the elements. With a full outdoor IP65/65 validated design, the XRB series delivers continuous performance regardless of the environment. The display is also equipped with UV-resistant materials, preventing further penetration of UV light to preserve its appearance.

Specifications

Display
Display technology	LED
Display resolution	128 x 128 pixels
Pixel pitch	3.9 x 3.9 mm
Display brightness	5000 cd/m²
Contrast ratio (typical)	4000:1
Native refresh rate	3840 Hz
Viewing angle, horizontal	160°
Viewing angle, vertical	160°
LED backlight	Yes
Display refresh rates supported	50 Hz, 60 Hz
Colour temperature	6500 K
Diode type	SMD1921
Design
Placement supported	Outdoor
Orientation	Vertical
Easily replaceable modular parts	Yes
International Protection (IP) code	IP65
Product colour	Black
Power
Power consumption (max)	760 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Operational conditions
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Depth	64 mm
Weight	7.8 kg
