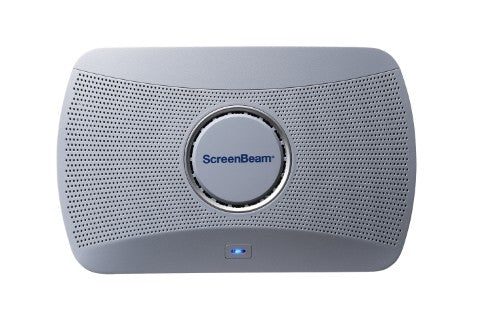

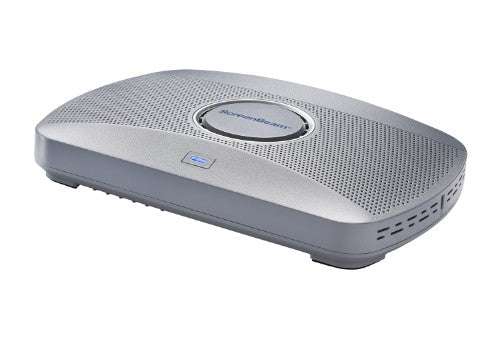

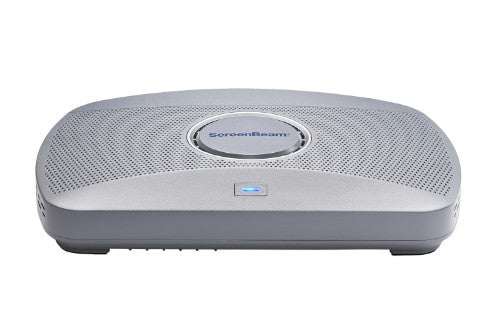

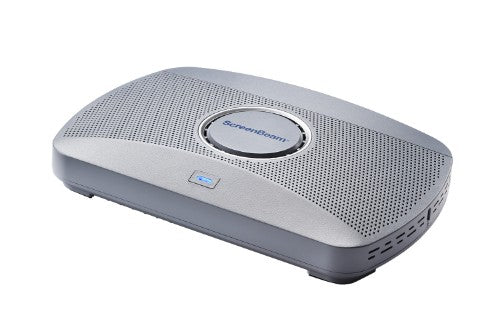

ScreenBeam 1000 EDU Gen 2 wireless presentation system HDMI + USB Type-A Desktop

Miracast, Airplay, Google Cast, 4K60, Wi-Fi, 220mm x 144mm x 37.5mm

Key Features

• Wireless display receiver for Windows, MacOS, iOS and ChromeOS
• Duplicate screen or extend mirroring up to 4K resolution
• Compatible with HID touchscreens for Windows Miracast touchback
• Integrated widgets for IFP including Whiteboard, Name Picker, Timer and more…
• Moderate student Windows & Chromebooks for wireless display with Orchestrate Lite
• Digital signage player for externally hosted HTML5-compatible content
• Deploy, manage, oversee, and log usage activities with ScreenBeam CMS Enterprise

Description

The ScreenBeam 1000 EDU Gen 2 is our next-generation smart wireless presentation platform designed for modern classrooms. It offers more than wireless display – empowering teachers to move freely, engage students, and get the most out of their technology investments.

App-less and dongle-less screen mirroring
Screen sharing from any device without the need to download an app or keep dongle nearby. ScreenBeam leads with OS-native Wi-Fi Miracast, AirPlay and Google Cast for familiarity and mitigate user training.

Extended desktop
Windows and macOS users can mirror desktop or extend screen to ensure content privacy.

Touch display support
Windows users can markup content directly on room displays, instantly capturing changes in Microsoft Office 365 applications.

Integrated Whiteboard
An integrated Whiteboard application enables a collaborative experience that launches directly from the interactive flat panel display without changing sources, pushing buttons or re-connecting to the display.

Name Picker & Timer
Tools frequently used by teachers to help engage students, randomly select students and time projects and tasks. These integrated applications are available for classrooms with IFP display.

Orchestrate (Lite)
Basic orchestration capabilities for Windows and Chromebooks. Teachers can easily and securely preview and approve student screen sharing for a moderated experience.

Multi-view
Teachers can display up to four student device screens simultaneously making it easy for classroom collaboration and discussion.

Signage Player
Idle displays in classrooms and meeting spaces can be optimized to convey information with integrated HTML-based digital signage capability.

Centralized Management
ScreenBeam CMS Enterprise included for monitor, manage, and update.

Specifications

Design
Form factor	Desktop
Product colour	White
Certification	FCC, RED, RoHS, UL
Features
AirPlay mirroring	Yes
Miracast	Yes
Google Cast	Yes
Network
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.1x
Supported network protocols	IEEE 802.1x, WPA-PSK (TKIP), WPA2-PSK (AES), PEAP-MSCHAPv2, EAP-TLS
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Dual-band	Yes
Bluetooth	Yes
Ports & interfaces
Interface	HDMI + USB Type-A
Number of HDMI outputs	1
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
DC-in jack	Yes
3.5 mm (1/8-inch) out	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Power
Power source type	DC
Input voltage	12 DC
Power consumption (max)	24.8 W
Power consumption (typical)	8.4 W
Input current	3 A
System requirements
Windows operating systems supported	Windows 10, Windows 11
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Mobile operating systems supported	Android 8.0, Android 8.1, Android 9.0, iOS 13, iOS 13.4, iOS 14, iOS 14.5, iOS 15, iOS 16
Mac compatibility	Yes
Other operating systems supported	ChromeOS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	20 - 85 °C
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	220 mm
Depth	144 mm
Height	37.5 mm
Weight	453.5 g
Packaging content
Cables included	HDMI
