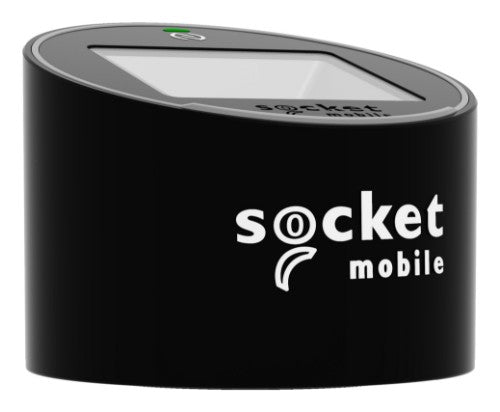

Socket Mobile SocketScan S370 Fixed bar code reader 1D/2D Black

SocketScan S370, Combination 1D/2D Barcode & NFC Mobile Wallet Reader

Key Features

• Multi-Device Compatibility Apple® Certified for iOS devices (iPhone®, iPad®) and compatible with Android® and Windows® 11.
• Versatile Reading Reads Apple Wallet® & Google Wallet Passes, Fast NFC, and RFID Reader (HF tags, labels, smart devices).
• Exceptional Form Factor Small, sturdy, and fits in areas with limited counter or table space.
• Writing Write/Encode, lock, and unlock tags.
• Long-Lasting Battery Scanner features rechargeable and field-replaceable battery that lasts a full shift.
• Bluetooth LE Support Enables dependable, low-power wireless connectivity for extended battery life and fast pairing through Bluetooth Low Energy.
• Intuitive User Indicators LED lights that indicate successful data read/write and battery charging status.
• Audible Feedback Multiple feedback tones to indicate successful data read/write and other important action confirmations.
• Easy App Integration Socket Mobile's CaptureSDK (version 2.0.29 or higher) enables easy integration in your applications to improve business productivity with fast, efficient, and reliable data transfer over Bluetooth wireless technology. Data reader works out of the box for apps that have already integrated CaptureSDK, with support for Bluetooth LE devices.
• Easy Updates Firmware can be updated over Bluetooth using an iOS or Android app.
• Developer Support Our support team is available to assist with set-up and operation.

Description

The S370 is a universal NFC & QR Code Mobile Wallet Reader that supports 1D and 2D barcode scanning on-screen and tap-and-go NFC Reading.

The SocketScan S370 is designed to facilitate mobile wallet applications via on-screen scanning or tap-and-go NFC Reading. It combines the latest 13.56 MHz Near Field Communication (NFC) contactless technology with barcode scanning and Bluetooth LE connectivity. Built for limited counter space and all-day reliability, its compact form factor is ideal for retail, loyalty, pop-up selling, events, or ticket or ID verification.

The S370 supports the following NFC profiles:

- Basic Mode (sometimes called HID, human interface device mode, or Keyboard Emulation Mode).
- Smart Reader (default mode).
- PCSC Coupler Reader/Writer. (The latter two are for customer app development using our CaptureSDK.)

The SocketScan S370 Universal NFC & QR Code Mobile Wallet Reader is portable, fits almost anywhere, can run on a battery or be plugged into power, and can read almost any credentials. Continuously and easily scans popular 1D and 2D barcodes from paper, label, and screen, like QR Code, PDF417, and Data Matrix. For the NFC/RFID world, the S370 also supports all NFC Forum tag types and devices compliant with the ISO 18092 standard, in addition to ISO 14443 Type A and B smart cards, ISO 15693 tags, MIFARE®, FeliCa®, NPX, and STMicro tags. It complies with both Apple and Google NFC protocols on iPhone and Android devices.

Digital ID / mDL (Mobile Driver's License) Reader:

The S370 was created with the new age of digital IDs and mDLs in mind and simplifies the mDL reading process. Many states and countries have already begun to roll out systems for mDL usage, and Socket Mobile is helping industries such as retail, commercial services, and government move into this new digital ID ecosystem. Ready to read mDLs out of the box, the S370 can read credentials following ISO18013-5, the standard being adopted in many jurisdictions.

Having both QR Code and NFC reading capabilities, the S370 improves user experience and allows retail app providers to choose the types of credentials they want to support. The result is efficient customer experiences when accessing services with mDL or other digital IDs (e.g., to meet entry requirements, store requirements, or industry regulations) by hovering or tapping a smart device. They can then use the information on consumer’s mobile device to instantly verify age, membership, loyalty and other customer-related services.

Specifications

Scanning
Type	Fixed bar code reader
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, JAN-8, JAN-13, EAN-13, EAN-8, GS1 DataBar Expanded, GS1 Databar Limited, GS1 DataBar Omnidirectional, Industrial 2 of 5, Interleaved 2 of 5, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Han Xin, MaxiCode, MicroPDF417, Micro QR Code, PDF417, QR Code
Scanner type	1D/2D
Ports & interfaces
Connectivity technology	Wireless
Standard interfaces	Bluetooth
Near Field Communication (NFC)	Yes
Performance
LED indicators	Yes
Product colour	Black
Country of origin	China
Design
Type	Fixed bar code reader
LED indicators	Yes
Product colour	Black
Power
Power source type	Battery
Battery life	25 h
Charging time	4 h
Battery voltage	3.7 V
Number of reads per charge	300
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	1800 mAh
Weight & dimensions
Width	92.7 mm
Depth	92.7 mm
Height	74.2 mm
Technical details
Type	Fixed bar code reader
LED indicators	Yes
Windows operating systems supported	Yes
Mobile operating systems supported	Android, iOS
Product colour	Black
Compliance certificates	RoHS, Federal Communications Commission (FCC), UL, CE, UKCA
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	1800 mAh
Battery weight	39 g
Battery capacity	3.7 Wh
Rechargeable battery	Yes
Number of battery cells	1
Other features
Windows operating systems supported	Yes
Mobile operating systems supported	Android, iOS
