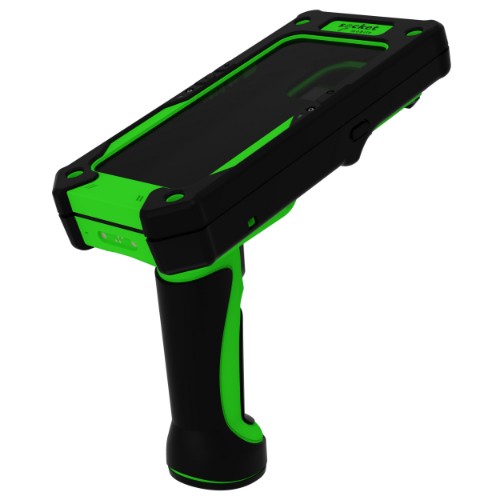

Socket Mobile XtremeScan Grip XG940 Handheld bar code reader 1D/2D LED Black, Green

XtremeScan Grip XG940, Rugged Performance 1D/2D Barcode Scanner w/Pistol Grip, (Cable Only), Not included (data reader only)

Key Features

• Rapid Scanning Fast 1D/2D scanning for both printed and on-screen barcodes, featuring omnidirectional capability for intuitive, rapid scanning.
• Rugged Design Built to withstand drops and harsh environments, with an IP67 sealed housing for protection from dust, water exposure, and water immersion.
• Pistol Grip Handle Comfortable point-and-shoot barcode reading.
• Charging Case charges both devices (Apple iPhone & Socket Mobile scanner).
• One-Handed Solution Easily combine the mobile device and data reader for a one-handed scanning solution.
• Long-Lasting Battery Scanner features rechargeable and field-replaceable battery that lasts a full shift.
• Intuitive User Indicators LED lights that indicate successful data read/write and battery charging status.
• Audible Feedback Multiple feedback tones to indicate successful data read/write and other important action confirmations.
• Bluetooth Classic Wireless Integration Dependable Bluetooth connection to host devices.
• Easy App Integration Socket Mobile's CaptureSDK (version 2.0.29 or higher) enables easy integration in your applications to improve business productivity with fast, efficient, and reliable data transfer over Bluetooth wireless technology. Data reader works out of the box for apps that have already integrated CaptureSDK, with support for Bluetooth LE devices.
• Developer Support Our support team is available to assist with set-up and operation.

Description

The scanner's integration with a heavy-duty case is designed to withstand demanding industrial environments, and the pistol grip handle provides an extra level of comfort and convenience for constant scanning during long shifts. The XtremeScan case provides IP67-sealed housing for protection from dust, water exposure, and water immersion. It includes an integrated wireless charger, so you can charge the iPhone without removing it from the case.

With a compatible iPhone, the XtremeScan Grip XG940 1D/2D Universal barcode scanner becomes a versatile and powerful mobile solution that can be used with a variety of industrial applications. The XG940 features fast 1D/2D, omnidirectional scanning for printed or on-screen barcodes with a highly visible and safe LED aimer. Depending on the barcode symbology, width, size, and label media, the XG940 can scan from 1.5 inches to 19.5 inches (3.8 to 49.5 cm). The industrial-grade, rugged housing can handle multiple drops onto concrete.

Specifications

Scanning
Type	Handheld bar code reader
Linear (1D) barcodes supported	Codabar, Code 128, Code 93, Code 39, EAN-8, EAN-13, JAN-13, JAN-8, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, Interleaved 2 of 5, ISBT 128, Trioptic, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, DotCode, Grid Matrix Code, Han Xin, MaxiCode, MicroPDF417, Micro QR Code, PDF417, QR Code
Tilt reading angle	33.5 - 44.5°
Sensor type	LED
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 100000 lx
Optical sensor resolution (W x H)	1280 x 960 pixels
Ports & interfaces
Wireless range	10 m
Connectivity technology	Wireless
Bluetooth version	2.1+EDR
Standard interfaces	Bluetooth
Performance
Protection features	Drop resistant
LED indicators	Yes
International Protection (IP) code	IP67
Product colour	Black, Green
Country of origin	China
Light levels (direct sunlight)	0 - 100000 lx
Design
Type	Handheld bar code reader
Protection features	Drop resistant
LED indicators	Yes
International Protection (IP) code	IP67
Product colour	Black, Green
Power
Power source type	Battery
Battery life	25 h
Charging time	8 h
Battery voltage	3.7 V
Number of reads per charge	500
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	700 mAh
Charging port type	USB Type-C
Technical details
Type	Handheld bar code reader
Protection features	Drop resistant
LED indicators	Yes
Mobile operating systems supported	iOS
International Protection (IP) code	IP67
Product colour	Black, Green
Warranty period	1 year(s)
Compliance certificates	UKCA, RoHS, Federal Communications Commission (FCC), CE
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 60%
Drop resistance	3.1 m
Light levels (direct sunlight)	0 - 100000 lx
Battery
Battery weight	12.5 g
Battery capacity	2.59 Wh
Rechargeable battery	Yes
Number of battery cells	1
Other features
Mobile operating systems supported	iOS
