Description

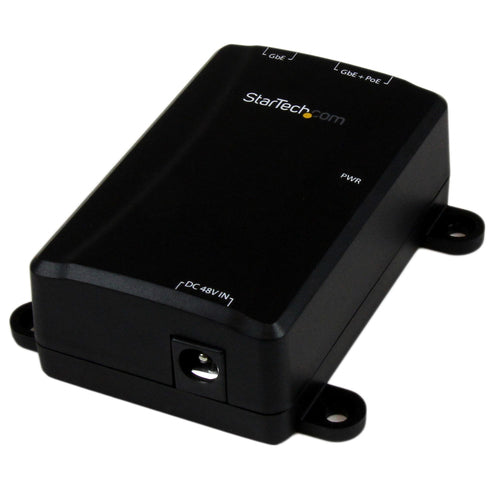

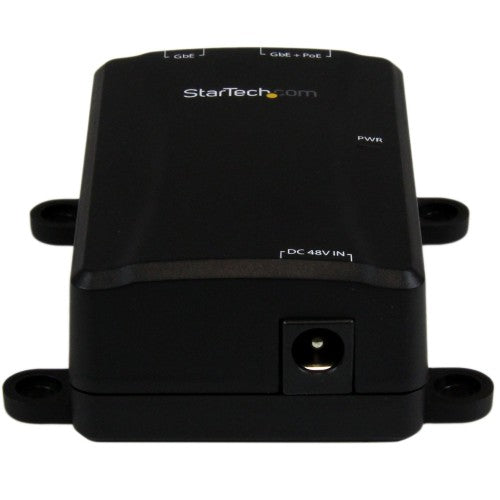

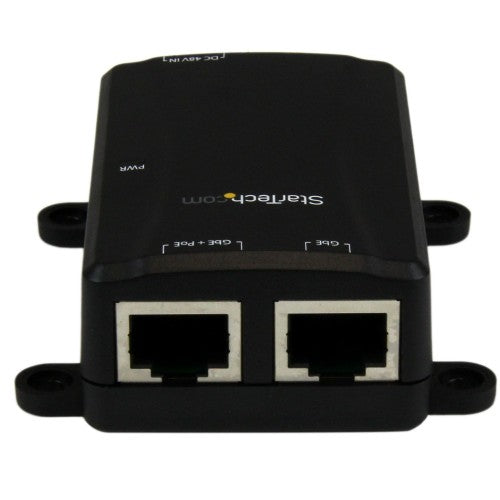

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using standard Ethernet cable, at distances of up to 100 m (330 ft.).
The PoE midspan is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.
Convenience and cost savings
This versatile PoE injector lets you connect a PoE-powered device (PD) to a non-PoE network switch, so you can avoid the expense and aggravation of replacing your existing switch with a PoE-enabled model. It supplies up to 30 watts of power, so you can easily power and access a high-power PoE-compliant device, such as an IP camera or a wireless access point (WAP), using traditional copper (RJ45) Ethernet cable. The midspan injector makes it easy to extend data and power connectivity to your PoE+ device across long distances, even in a remote location where a typical power outlet isn’t available.
Easy to set up in mixed environments
You can integrate this compact injector discreetly into a variety of environments. It features a surface-mountable housing that’s perfect for installing on walls or under a desk, but it’s also palm-sized, for use on desktop surfaces.
Plus, with plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.
Intelligent power allocation
Not sure which class your PoE device is? The Gigabit PoE+ injector automatically detects the power requirements of your connected PoE PD, and delivers the appropriate level of power without damaging your device.
The POEINJ1GW is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
,
| Network | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Duplex system | Full |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Cable types supported | Cat5 |
| Power over Ethernet (PoE) voltage | 48 V |
| Features | |
| Plug and Play | Yes |
| Maximum operating distance | 100 m |
| Product colour | Black |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| LED indicators | Power |
| Ports & interfaces | |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Output power | 30 W |
| Output current | 0.64 A |
| Power consumption (max) | 36 W |
| Power over Ethernet (PoE) voltage | 48 V |
| Input voltage | 100 - 240 V |
| Input current | 0.75 A |
| Technical details | |
| Package width | 230 mm |
| Package height | 76 mm |
| Power over Ethernet (PoE) | Yes |
| Input voltage | 100 - 240 V |
| Input current | 0.75 A |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Harmonized System (HS) code | 85044095 |
| Compliance certificates | CE, RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Package weight | 1 kg |
| Package depth | 190 mm |
| Package width | 230 mm |
| Package height | 76 mm |
| Weight | 50 g |
| Width | 63 mm |
| Depth | 70 mm |
| Height | 25 mm |
| Packaging data | |
| Package weight | 1 kg |
| Package depth | 190 mm |
| Package width | 230 mm |
| Package height | 76 mm |
| Packaging content | |
| Power cord included | Yes |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Indication | |
| LED indicators | Power |
| Logistics data | |
| Master (outer) case width | 400 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 260 mm |
| Products per master (outer) case | 12 pc(s) |
| Harmonized System (HS) code | 85044095 |
