StarTech.com 1-Port Gigabit PoE+ Extender - 802.3at and 802.3af - 100 m (330 ft)

StarTech.com 1 Port Gigabit PoE+ Extender 802.3at & 802.3af - 100m (330ft) - Power over Ethernet Extender - PoE Repeater Network Extender

Description

This Gigabit PoE+ extender spans your Power over Ethernet (PoE) device over longer distances, letting you double the 100m limitations of a traditional PoE infrastructure.

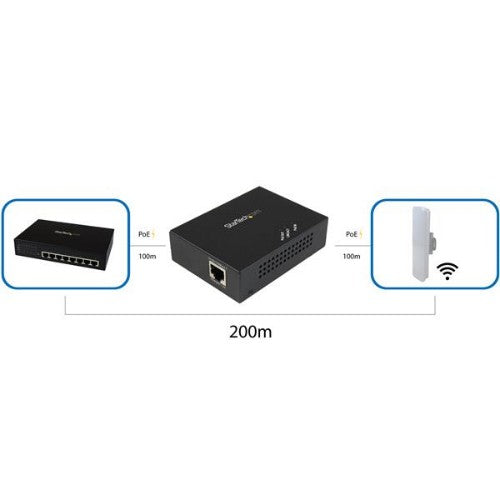

Now you can connect your Gigabit PoE device up to a maximum of 200m away, so it’s easy to install a remote IP camera or access point. Plus the extender can be daisy-chained for more scalability.

Unrestricted PoE+ range and convenience
Need more distance? This convenient PoE+ repeater maximizes range and flexibility by extending your PoE connection by an extra 100m (330ft), while providing 24-watt power output to compatible devices.

Simply connect the extender to your power sourcing equipment (PSE) and your PoE-powered device (PD) and you’re all set. The extender is compliant with the 802.3at/af standard, so it will work with existing PSE, such as a StarTech.com PoE+ injector (POEINJ1G) or PoE+ switch (IES81000POE).

Daisy chain for longer distance and flexibility
Still need more distance? If an extra 100m isn’t enough, this full-featured PoE extender offers daisy chain capability.

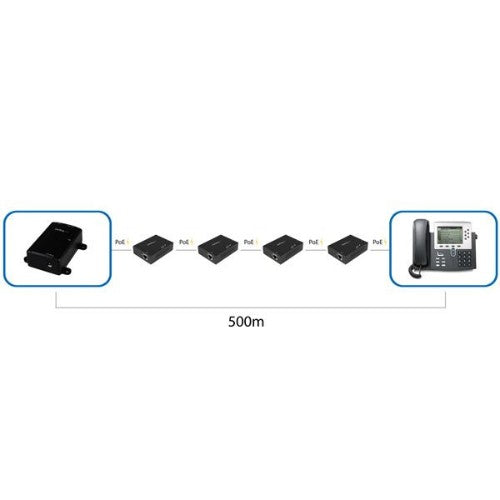

You can easily connect four extenders together, letting you install your PoE+ PD up to 500m (1640ft) away. It’s perfect for business, education, and retail environments (output wattage is dependent on the number of daisy-chained extenders used).

Convenient installation options and durable construction
Get up and running quickly. This Gigabit PoE+ extender can be positioned right where you need it, with a wall-mountable design that requires no external power adapter.

You can enjoy reliable performance with little worry of downtime or failure, the extender features a rugged metal housing with built-in ESD and surge protection.

The POEEXT1GAT is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Performance
Jumbo frames support	No
Duplex system	Full, Half
Plug and Play	Yes
Type	Network repeater
Maximum transfer distance	100 m
Power over Ethernet (PoE)	Yes
Data transfer rate	2000 Mbit/s
Mean time between failures (MTBF)	50000 h
Auto MDIX IEEE	Yes
Auto-negotiation	Yes
Technical details
Jumbo frames support	No
Duplex system	Full, Half
Plug and Play	Yes
LED indicators	Activity, Link, PoE
Type	Network repeater
Maximum transfer distance	100 m
Power over Ethernet (PoE)	Yes
Data transfer rate	2000 Mbit/s
Auto MDIX IEEE	Yes
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Network
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Ports & interfaces
Power over Ethernet (PoE) ports quantity	2
Design
Housing material	Steel
LED indicators	Activity, Link, PoE
Certification	CE, FCC, TAA, REACH
Product colour	Black
Power
Power consumption (max)	3.2 W
Power over Ethernet (PoE)	Yes
AC input voltage	52 - 56 V
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	69 mm
Depth	94 mm
Height	25 mm
Weight	193 g
Colour
Product colour	Black
Endurance
Mean time between failures (MTBF)	50000 h
Certificates
Certification	CE, FCC, TAA, REACH
Packaging content
Manual	Yes
Packaging data
Package width	135 mm
Package depth	205 mm
Package height	70 mm
Package weight	343 g
Logistics data
Harmonized System (HS) code	85176990
