StarTech.com | SKU:
MCM110ST2GB
StarTech.com 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km
€72.70
Unit price
/
Unavailable
Shipping calculated at checkout.
StarTech.com 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.

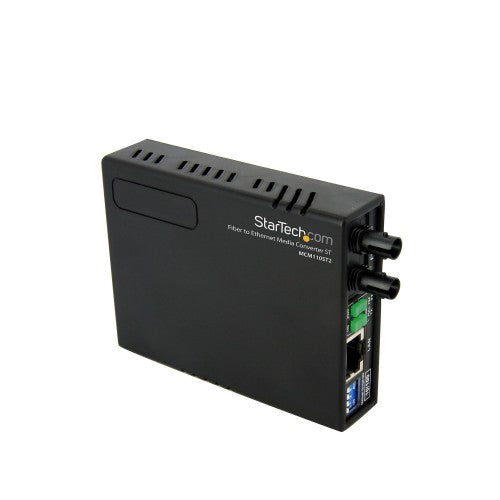

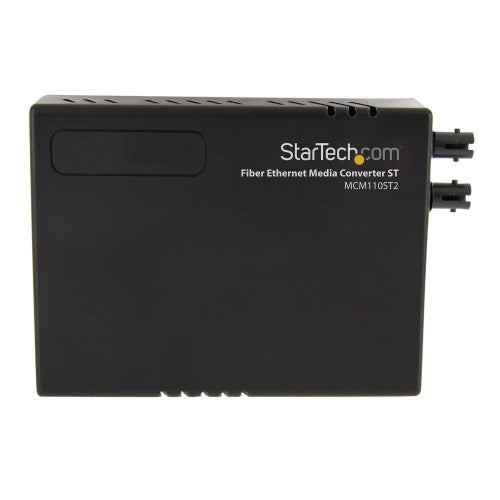

StarTech.com 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km - UTP to 100Base-Fx - Fiber Optic Media Converter MM (MCM110ST2GB)
This Ethernet to MM Fiber Media Converter creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.
Easy to setup and install, this compact, value-conscious media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
The StarTech.com Advantage
Key Features
- 1310nm wavelength
- Auto detects half/full duplex transfer mode from the TX port.
- Auto negotiation or Force 10/100 Mbps and MDI/MDI-X (Crossover for TX port).
- Compatible with 3COM™, Cisco™, Lucent™ and Nortel™ networks
- Forward 9K jumbo packets in converter mode
- It’s compact design and weight makes it portable and unobtrusive to carry
- LED Indicators for simple Ethernet/Fiber network link monitoring
- Provides switch configuration of half/full duplex transfer mode for FX port.
- Support flow control (Pause)
- Supports a maximum multi mode fiber optic cable distance of 2 km
Description
Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiberThis Ethernet to MM Fiber Media Converter creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.
Easy to setup and install, this compact, value-conscious media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
The StarTech.com Advantage
Specifications
| Network | |
|---|---|
| Fiber optic connector | ST |
| Jumbo frames support | Yes |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Jumbo frames | 9000 |
| Converter input interface | 10Base-T |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Converter output interface | 100Base-FX |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 100 Mbit/s |
| Technical details | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 2000 m |
| Fiber mode structure | Multi-mode |
| Internal | No |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | CE, RoHS |
| Performance | |
| Jumbo frames support | Yes |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Wavelength-division multiplexing (WDM) | No |
| Wavelength | 1310 nm |
| Maximum transfer distance | 2000 m |
| Fiber mode structure | Multi-mode |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | ST |
| DC-in jack | Yes |
| Indication | |
| LED indicators | Activity, Link, Power, Speed |
| Design | |
| LED indicators | Activity, Link, Power, Speed |
| Product colour | Black |
| Internal | No |
| Power | |
| Power plug type | Type M |
| Input voltage | 100 - 240 V |
| Output voltage | 12 V |
| Output current | 0.2 A |
| Power consumption (typical) | 2.4 W |
| External power adapter | Yes |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Width | 75 mm |
| Depth | 95 mm |
| Weight | 90.5 g |
| Height | 20 mm |
| Package depth | 175 mm |
| Package width | 145 mm |
| Package height | 65 mm |
| Package weight | 300 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging data | |
| Package depth | 175 mm |
| Package width | 145 mm |
| Package height | 65 mm |
| Package weight | 300 g |
| Packaging content | |
| AC adapter included | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case width | 390 mm |
| Master (outer) case length | 480 mm |
| Master (outer) case height | 300 mm |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Full duplex | Yes |
