Description

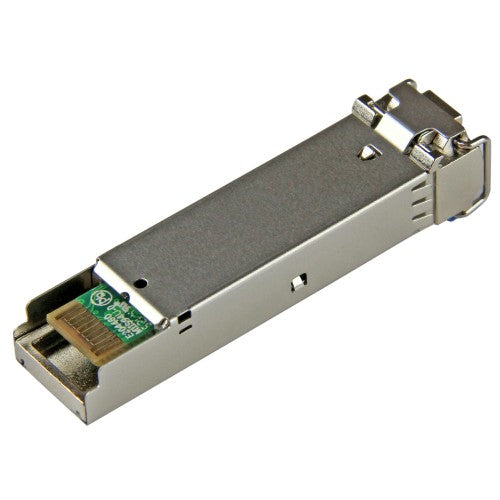

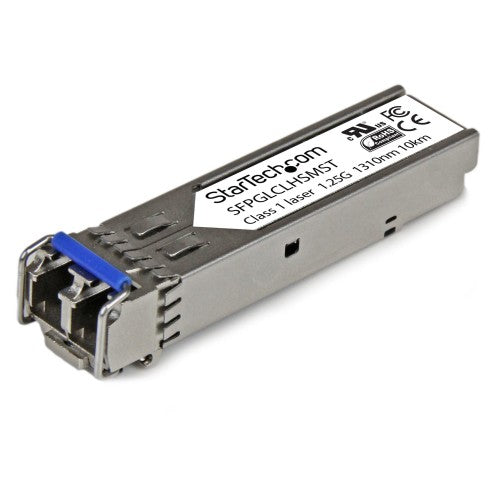

1000 Mbps (1 Gbps) | Single & Multi Mode Fiber | LC | 10 km (6.2 mi) | Lifetime WarrantyThe GLCLHSM10PST is a Cisco GLC-LH-SM compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LX/LH compliant networks, with a maximum distance of up to 10 km (6.2 mi).Technical Specifications:• Wavelength: 1310 nm• Maximum Data Transfer Rate: 1.25 Gbps• Type: Single Mode / Multi Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 10 km (6.2 mi)• MTBF: 3,092,408 hours• Power Consumption: Less than 1 Watt• Digital Diagnostics Monitoring (DDM): NoThis SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage,
| Network | |
|---|---|
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Fiber ports quantity | 1 |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Technical details | |
| Package width | 125 mm |
| Package height | 36 mm |
| Hot-swap | Yes |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Duplex system | Full |
| Sustainability certificates | RoHS |
| Ports & interfaces | |
| Fiber ports quantity | 1 |
| Performance | |
| Product colour | Silver |
| Housing material | Steel, Aluminium |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 3092408 h |
| SFP transceiver type | Fiber optic |
| Digital Diagnostics Monitoring (DDM) | No |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Fiber ports quantity | 1 |
| Duplex system | Full |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | LH, LX |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Silver |
| Housing material | Steel, Aluminium |
| Hot-swap | Yes |
| Certification | CE, FCC, UL |
| Mean time between failures (MTBF) | 3092408 h |
| Power | |
| Power consumption (typical) | 1 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 13.7 mm |
| Depth | 56.6 mm |
| Height | 12.5 mm |
| Weight | 25 g |
| Package depth | 182 mm |
| Package width | 125 mm |
| Package height | 36 mm |
| Package weight | 250 g |
| Packaging data | |
| Package depth | 182 mm |
| Number of products included | 10 pc(s) |
| Package width | 125 mm |
| Package height | 36 mm |
| Package weight | 250 g |
| Certificates | |
| Certification | CE, FCC, UL |
| Packaging content | |
| Number of products included | 10 pc(s) |
| Logistics data | |
| Master (outer) case width | 362 mm |
| Master (outer) case length | 416 mm |
| Master (outer) case height | 347 mm |
| Products per master (outer) case | 50 pc(s) |
| Harmonized System (HS) code | 85369010 |
