StarTech.com | SKU:
MPO8LCPL10M
StarTech.com 10m (30ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable, OFNP Plenum, 40G Networks, Low Insertion Loss - Fiber Jumper Cord
€57.73
Unit price
/
Unavailable
Shipping calculated at checkout.
StarTech.com 10m (30ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable, OFNP Plenum, 40G Networks, Low Insertion Loss - Fiber Jumper Cord is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
StarTech.com 10m (30ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable, 40G, Fiber Jumper Cord

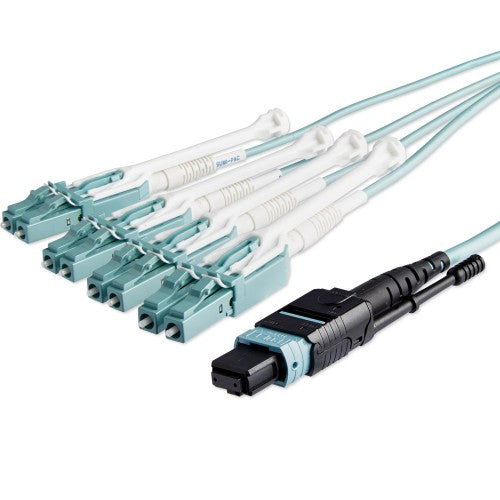

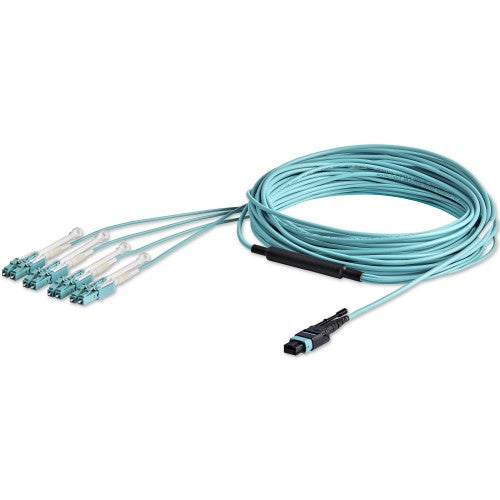

This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.

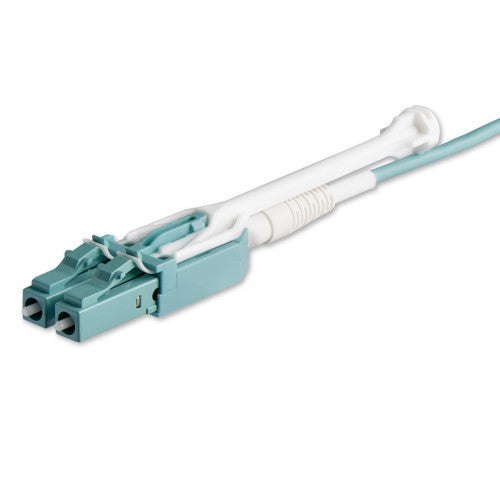

The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.

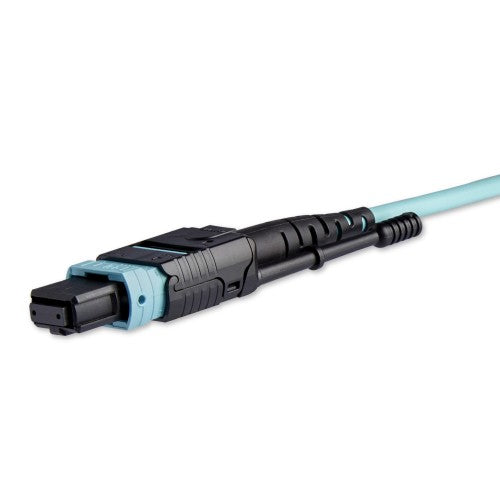

The MPO cable is housed in a plenum-rated jacket and is ideal for in-wall installations or anywhere CMP fire rating is required.

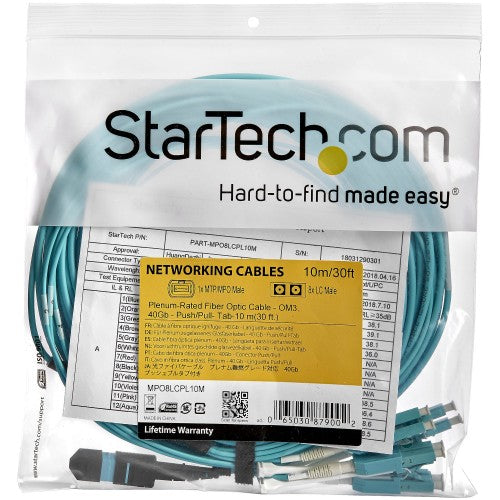

Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.
The MPO8LCPL10M from StarTech.com is backed by a lifetime warranty.
The StarTech.com Advantage
Description
Plenum Rated | OFNP Fiber | Ideal for SANs, data servers, QSFP+This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.
The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.
The MPO cable is housed in a plenum-rated jacket and is ideal for in-wall installations or anywhere CMP fire rating is required.
Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.
The MPO8LCPL10M from StarTech.com is backed by a lifetime warranty.
The StarTech.com Advantage
Specifications
| Technical details | |
|---|---|
| Fiber mode structure | Multi-mode |
| Connector 1 | MPO/MTP |
| Connector 2 | 8x LC |
| Cable length | 10 m |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Compliance certificates | RoHS |
| Features | |
| Fibre optic type | OM3 |
| Fiber mode structure | Multi-mode |
| Connector 1 | MPO/MTP |
| Connector 2 | 8x LC |
| Cable length | 10 m |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Data transfer rate | 40 Gbit/s |
| Harmonized System (HS) code | 85447000 |
| Product colour | Aqua colour |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Data transmission | |
| Data transfer rate | 40 Gbit/s |
| Weight & dimensions | |
| Cable length | 10 m |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 10 mm |
| Weight | 991.4 g |
| Package weight | 114 g |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 10 mm |
| Package weight | 114 g |
| Logistics data | |
| Master (outer) case width | 230 mm |
| Master (outer) case length | 385 mm |
| Master (outer) case height | 190 mm |
| Products per master (outer) case | 20 pc(s) |
| Harmonized System (HS) code | 85447000 |
