StarTech.com | SKU:
WALLMOUNTH1
StarTech.com 1U 19in Hinged Wall Mounting Bracket for Patch Panels
€26.71
Unit price
/
Unavailable
Shipping calculated at checkout.
StarTech.com 1U 19in Hinged Wall Mounting Bracket for Patch Panels is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
StarTech.com 1U Hinged Wall Mount Patch Panel Bracket - 4 inch Deep - 19" Patch Panel Swing Rack for Shallow Network Equipment- 17lbs (WALLMOUNTH1)

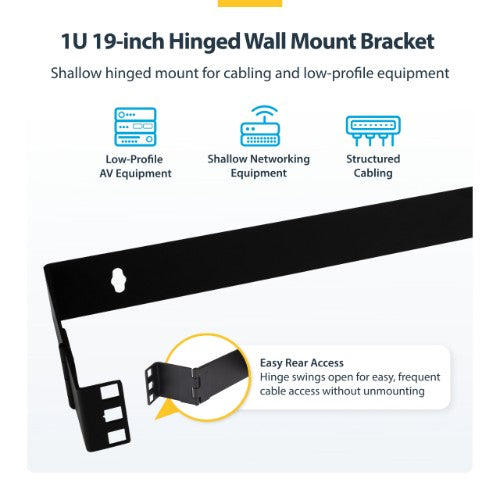

The WALLMOUNTH1 1U 19in Hinged Wall Mounting Bracket for Patch Panels is 4in deep and sturdily designed to provide a dependable solution for mounting a patch panel, or other slim 19in networking equipment to a wall.
The patch panel wall mount features a hinged design for easy access to configuration buttons, ports and cables. The wall mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common wall-frame stud spacing.
Backed by a StarTech.com 2-year warranty.
The StarTech.com Advantage
Key Features
- STURDY CONSTRUCTION: The 1U 19in hinged wall mounting bracket for patch panels is 4in deep and sturdily designed to mount a patch panel, or other slim 19in networking/data/IT equipment to a wall
- OPTIMIZED WORKSPACE: This durable 1U 19in hinged wall mounting bracket has a maximum mounting depth of 5.8in [14.8cm] and a maximum weight capacity of 17.7lb [8kg]
- EASY CABLE MANAGEMENT: The patch panel swing bracket features a hinged design for easy access to configuration buttons, ports and cables, and to the rear of the equipment for easy adjustment
- STANDARDIZED HOLE SIZING: The mounting holes on the 1U network rack are 16in apart, exactly matching standard drywall construction framework to ensure simple and secure wall-stud anchoring
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this wall mounting bracket is backed for life, including free lifetime 24/5 multi-lingual technical assistance
Description
Wall mount a patch panel or network switch while providing hinged access to the back of the deviceThe WALLMOUNTH1 1U 19in Hinged Wall Mounting Bracket for Patch Panels is 4in deep and sturdily designed to provide a dependable solution for mounting a patch panel, or other slim 19in networking equipment to a wall.
The patch panel wall mount features a hinged design for easy access to configuration buttons, ports and cables. The wall mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common wall-frame stud spacing.
Backed by a StarTech.com 2-year warranty.
The StarTech.com Advantage
Specifications
| Features | |
|---|---|
| Certification | RoHS |
| Number of fans | 0 fan(s) |
| Type | Wall mounted rack |
| Size (imperial) | 48.3 cm (19") |
| Rack capacity | 1U |
| Maximum weight capacity | 8 kg |
| Product colour | Black |
| Compliance industry standards | EIA-310-D |
| Mounting hole shape | Square |
| Frame type | Open |
| Castor wheels | No |
| Harmonized System (HS) code | 85389099 |
| Cooling | |
| Number of fans | 0 fan(s) |
| Weight & dimensions | |
| Package width | 200 mm |
| Package height | 60 mm |
| Package depth | 515 mm |
| Package weight | 843 g |
| Mounting depth (min) | 15.2 cm |
| Width | 501 mm |
| Weight | 579.5 g |
| Size (imperial) | 48.3 cm (19") |
| Height | 44 mm |
| Depth | 152 mm |
| Maximum weight capacity | 8 kg |
| Packaging data | |
| Package width | 200 mm |
| Package height | 60 mm |
| Package depth | 515 mm |
| Package weight | 843 g |

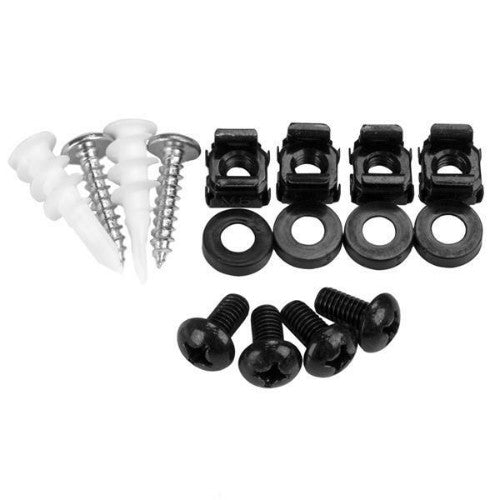

| Packaging content | |
| Screws included | Yes |
| Nuts included | Yes |
| Number of screws | 6 |
| Number of nuts | 4 |
| Technical details | |
| Type | Wall mounted rack |
| Size (imperial) | 48.3 cm (19") |
| Rack capacity | 1U |
| Colour | |
| Product colour | Black |
| Logistics data | |
| Harmonized System (HS) code | 85389099 |
