StarTech.com 2 Port USB HDMI KVM Switch with Audio and USB 2.0 Hub

Share a keyboard, mouse and HDMI monitor between 2 multimedia computers

The SV231HDMIUA 2-port USB HDMI KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).

A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.

Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.

The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Eliminate duplicate display expense by sharing one set of peripherals and a single Display or TV between a Game console (Xbox360 or Playstation PS3) and PC
- Versatile audio support for both HDMI audio and 3.5mm analog audio
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices,

Technical details
Product colour	Black
Rack mounting	No
On Screen Display (OSD)	No
Video
HD type	Full HD
Maximum resolution	1920 x 1200 pixels
Ports & interfaces
Console USB ports quantity	4
Console ports	3.5mm headphone, 3.5mm mic, HDMI, USB A
Number of microphone inputs	3
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
Headphone outputs	3
Performance
Daisy chain	No
HD type	Full HD
Maximum resolution	1920 x 1200 pixels
Design
Mean time between failures (MTBF)	126813 h
Product colour	Black
Rack mounting	No
Certification	R0HS
Display
On Screen Display (OSD)	No
Power
Input current	0.8 A
Output current	1.5 A
Power plug type	Type M
DC input voltage	12 V
AC input voltage	100 - 240 V
Power consumption (typical)	18 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	125 mm
Depth	70 mm
Height	40 mm
Weight	634 g
Package width	188 mm
Package depth	250 mm
Package height	100 mm
Package weight	1.1 kg
Packaging data
Package width	188 mm
Package depth	250 mm
Package height	100 mm
Package weight	1.1 kg

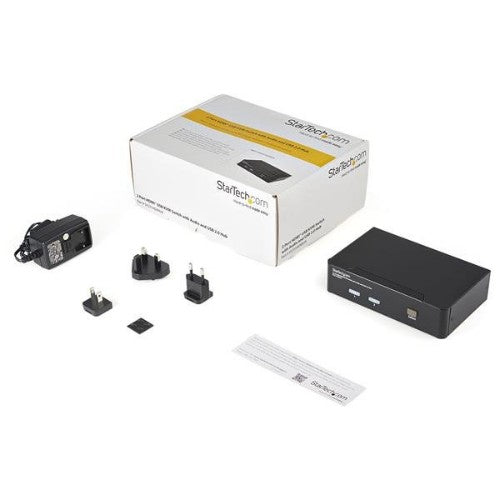

Packaging content
Rubber feet	Yes
Manual	Yes
AC adapter included	Yes
Certificates
Certification	R0HS
Logistics data
Harmonized System (HS) code	85176200
Other features
Connectivity technology	Wired
Power requirements	AC 110 - 240 V
Ports quantity	2
Dimensions (WxDxH)	124.8 x 70 x 40 mm
I/O ports	1x HDMI (F) 4x USB A (F) 6x 3.5mm (F) 2x USB B (F) 2x mini-HDMI (F)
