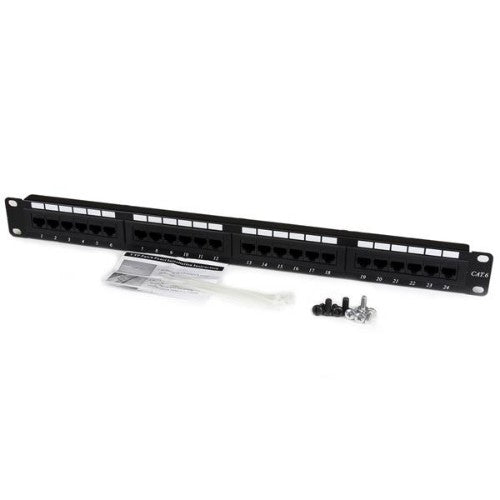

StarTech.com 24 Port 1U Rackmount Cat 6 110 Patch Panel

Organize up to 24 Cat6 patch cables

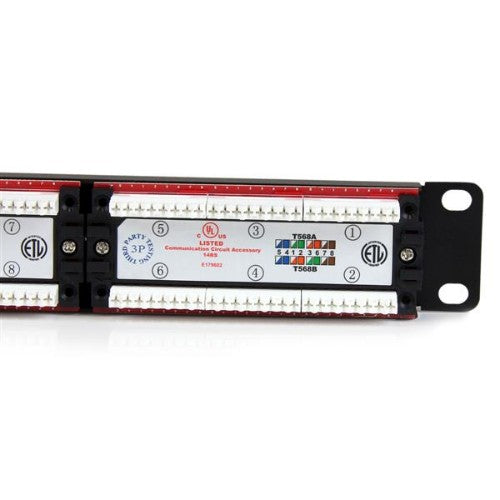

The C6PANEL24 24-port 110-type Rack Mount Cat 6 Patch Panel is color coded for both T568A and T568B wiring providing the perfect solution for any voice or LAN application.

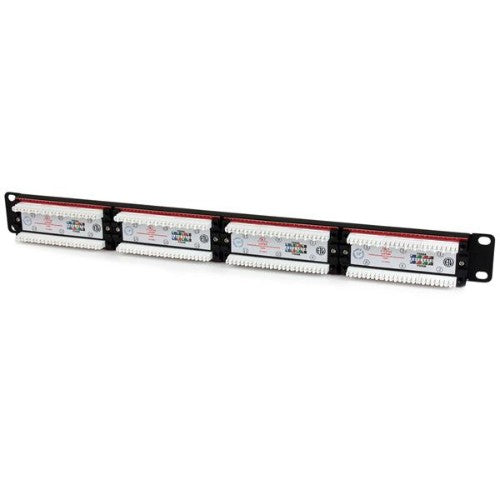

For hassle-free connections, the patch panel offers straight Cat 6 ports with 110-type termination, making it easy to insert and remove your cables. The 24-port patch panel also offers a quick and easy way to identify your cable runs, with port numbers clearly marked on the back of each RJ45 port, and a writeable/erasable marking surface for each port on the front of the panel for efficient system management.

Durably constructed of only top quality materials, this 24-port Network Patch Panel is backed by StarTech.com’s 2-year warranty.

The StarTech.com Advantage

- Organize up to 24 Cat6 patch cables

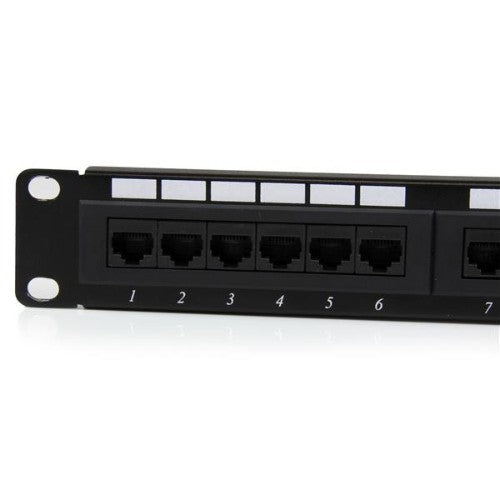

- Clearly numbered RJ45 ports make it easy to identify your cable runs
- Label each cable run on the writable / erasable marking surface of each port located on the front of the panel for efficient system management,

Network
Ports quantity	24
Connector(s)	RJ-45
Features
Mounting	Rack mounting
Rack capacity	1U
Product colour	Black
Certification	CE, ETl, UL
Technical details
Mounting	Rack mounting
Operating temperature (T-T)	-10 - 60 °C
Package width	55 mm
Package height	45 mm
Sustainability certificates	RoHS
Harmonized System (HS) code	85371098
Design
Mounting	Rack mounting
Rack capacity	1U
Product colour	Black
Certification	CE, ETl, UL
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	10 - 65%
Colour
Product colour	Black
Certificates
Certification	CE, ETl, UL
Weight & dimensions
Width	483 mm
Weight	581 g
Height	34 mm
Depth	44 mm
Package weight	678 g
Package width	55 mm
Package height	45 mm
Packaging data
Package weight	678 g
Package depth	490 mm
Package width	55 mm
Package height	45 mm
Logistics data
Harmonized System (HS) code	85371098
