StarTech.com  |  SKU: MPEX1394B3

StarTech.com 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter

€28.24
Shipping calculated at checkout.

Delivery and Shipping

Products shipped within 2 working days from date of order.

Costs

0-24.99kg €14.50

25kg – 50kg €35.00

50kg and Up €60.00

No Customs Charges

Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.

StarTech.com 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter

Description

Add 2 FireWire-800 and 1 FireWire-400 port through a Mini PCI Express slot

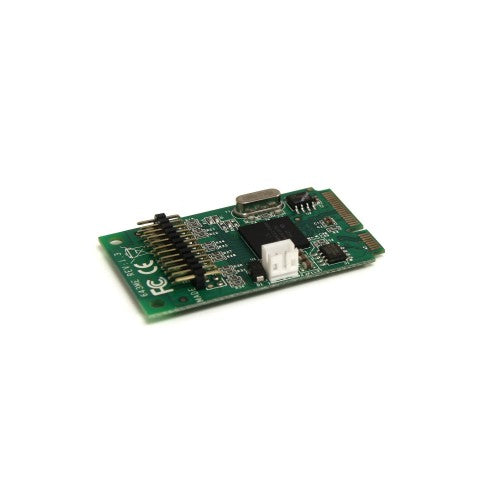

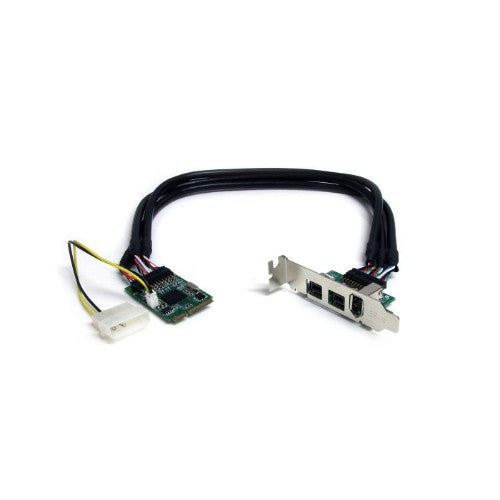

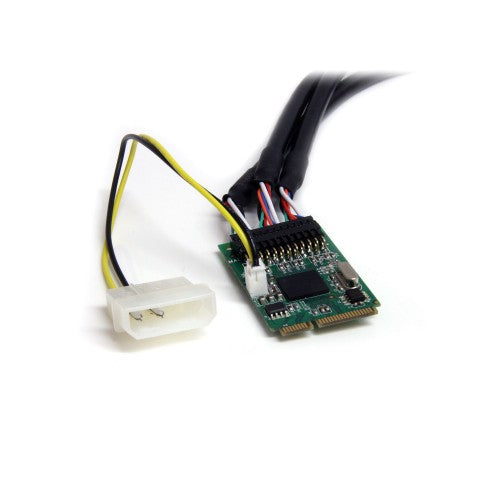

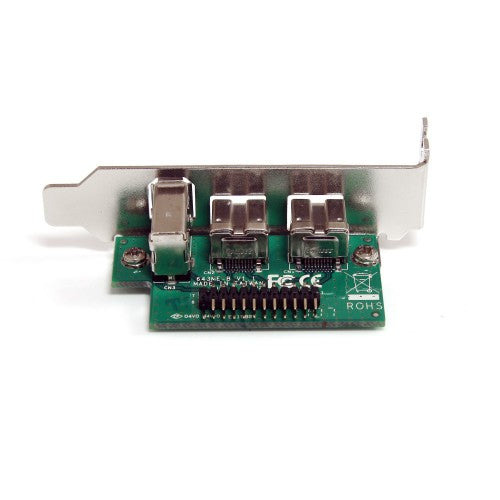

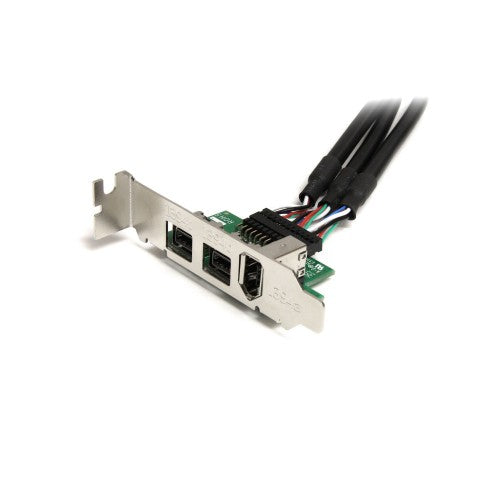

The MPEX1394B3 3-Port Mini PCI Express FireWire Card is a PCI Express to FireWire-800/FireWire-400 adapter that enables you to add external FireWire connectivity on very small form factor or embedded systems. The PCIe FireWire card provides two FireWire-800 ports and one FireWire-400 port, this adapter card supports the latest external FireWire storage devices at data transfer speeds of up to 800 Mbps. Using the Mini PCI Express (Mini Card) form factor, this adapter card is designed for use in the latest very small form factor computer systems, such as Mini-ITX or custom embedded solutions where a full-sized PCI Express card would not fit. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Ports & interfaces
Internal Yes
Output interface IEEE 1394/Firewire
Firewire (IEEE 1394) ports 3
Host interface PCIe
Expansion card form factor Full-height / Low-profile
Expansion card standard PCIe 1.1
Technical details
Plug and Play Yes
Chipset Texas Instruments - XIO2213B
Data transfer rate (max) 0.8 Gbit/s
Sustainability compliance Yes
Compliance certificates CE, RoHS
Performance
Hot-swap Yes
Plug and Play Yes
Chipset Texas Instruments - XIO2213B
Data transfer rate (max) 0.8 Gbit/s
Product colour Black, Stainless steel
Harmonized System (HS) code 84733020
Colour
Product colour Black, Stainless steel
Design
Hot-swap Yes
Internal Yes
Product colour Black, Stainless steel
Features
Plug and Play Yes
Chipset Texas Instruments - XIO2213B
Data transfer rate (max) 0.8 Gbit/s
Harmonized System (HS) code 84733020
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -54 - 150 °C
System requirements
Windows operating systems supported Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported Yes
Server operating systems supported Windows Server 2008 R2, Windows Server 2012, Windows Server 2019
Weight & dimensions
Width 30 mm
Depth 50 mm
Height 4 mm
Weight 91 g
Package width 175 mm
Package depth 145 mm
Package height 32 mm
Package weight 198 g
Packaging data
Mounting brackets included Yes
Manual Yes
Package width 175 mm
Package depth 145 mm
Package height 32 mm
Package weight 198 g
Logistics data
Products per master (outer) case 25 pc(s)
Master (outer) case width 280 mm
Master (outer) case length 663 mm
Master (outer) case height 202 mm
Harmonized System (HS) code 84733020

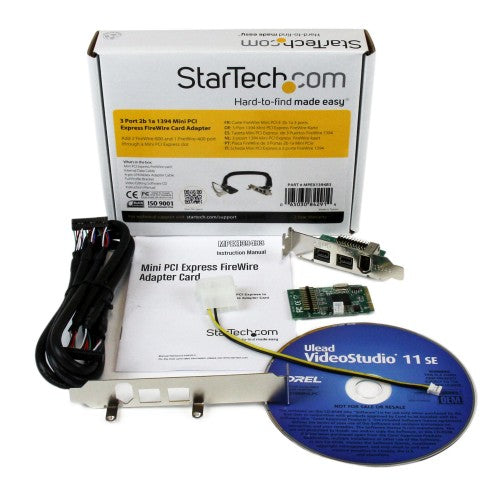

Packaging content
Mounting brackets included Yes
Manual Yes
Other features
Chipset Texas Instruments - XIO2213B
