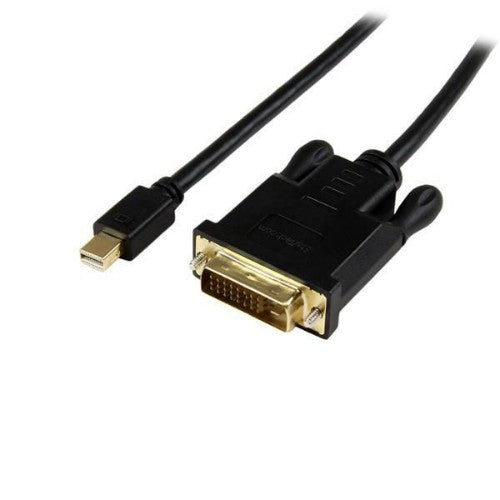

StarTech.com 3ft (0.9m) Mini DisplayPort to DVI Cable - Active Mini DP to DVI Adapter Cable - 1080p Video - mDP 1.2 to DVI-D Single Link - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor

StarTech.com 3ft (0.9m) Mini DisplayPort to DVI Cable - Active Mini DP to DVI Adapter Cable - 1080p Video - mDP 1.2 to DVI-D Single Link - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor (MDP2DVIMM3BS)

Description

Eliminate excess cable clutter with a short 3ft Mini DisplayPort to DVI active adapter

The MDP2DVIMM3BS 3ft. active Mini DisplayPort to DVI adapter cable lets you directly connect your Mini DP video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) directly to a nearby DVI monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable.

For guaranteed compatibility with virtually any Mini DisplayPort output the active Mini DP to DVI adapter supports dual-mode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the MDP2DVIMM3BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.

Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports resolutions up to 1920 x 1200.

The MDP2DVIMM3BS is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Note:

This adapter is not compatible for use with the Apple Cinema Display.

The StarTech.com Advantage

Specifications

Features
Converter type	Active
Chipset	Parade - PS171
DisplayPort version	1.2
Product colour	Black
Cable length	0.9 m
Connector 1	Mini DisplayPort
Connector 2	DVI-D
Connector 1 gender	Male
Connector 2 gender	Male
Maximum resolution	1920 x 1200 pixels
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Supported video modes	1080p
Plug and Play	Yes
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Dual Link DVI	No
Maximum refresh rate	30 Hz
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	40 - 85%
Other features
Width	40 mm
Height	15 mm
Depth	920 mm
Weight & dimensions
Width	40 mm
Height	15 mm
Depth	920 mm
Weight	82 g
Package width	200 mm
Package depth	220 mm
Package height	15 mm
Package weight	82.2 g
Packaging data
Package width	200 mm
Package depth	220 mm
Package height	15 mm
Package weight	82.2 g
Quantity per pack	1 pc(s)
Technical details
Harmonized System (HS) code	84733080
Compliance certificates	RoHS, CE
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	420 mm
Master (outer) case length	415 mm
Master (outer) case height	435 mm
Products per master (outer) case	180 pc(s)
Harmonized System (HS) code	84733080
