Description

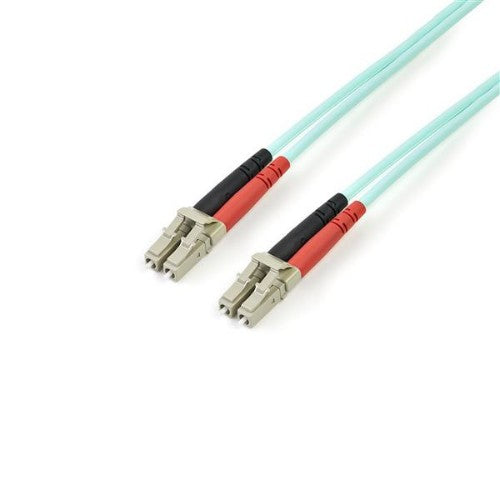

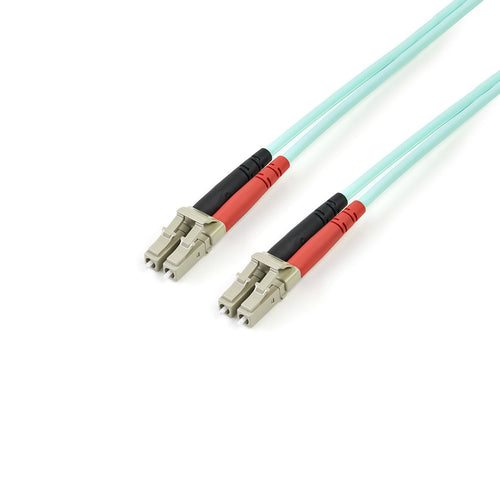

LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+The A50FBLCLC3 3m 850nm Laser-Optimized Multimode Fiber (LOMMF) Aqua Cord features 50/125 micron fiber for high-speed, high bandwidth data transmissions over 10 Gigabit Ethernet and Fiber Channel networks - the perfect solution for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment.This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.Each Duplex 50/125 (OM3) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.The StarTech.com Advantage,
| Technical details | |
|---|---|
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 3 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Sustainability certificates | REACH, RoHS |
| Doesn't contain | Halogen |
| Features | |
| Fibre optic type | OM3 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 3 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Data transfer rate | 100 Gbit/s |
| Certification | CE |
| Wavelengths supported | 850 nm |
| Harmonized System (HS) code | 85447000 |
| Product colour | Turquoise |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Data transmission | |
| Data transfer rate | 100 Gbit/s |
| Certificates | |
| Certification | CE |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Cable length | 3 m |
| Package width | 120 mm |
| Package depth | 95 mm |
| Package height | 32 mm |
| Weight | 24 g |
| Package weight | 52 g |
| Packaging data | |
| Package width | 120 mm |
| Package depth | 95 mm |
| Package height | 32 mm |
| Package weight | 52 g |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 403 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case height | 403 mm |
| Products per master (outer) case | 200 pc(s) |
| Harmonized System (HS) code | 85447000 |
| Quantity per pack | 1 pc(s) |
