StarTech.com | SKU:
HSB4SATSASBA
StarTech.com 4 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD
€94.61
Unit price
/
Unavailable
Shipping calculated at checkout.
StarTech.com 4 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.

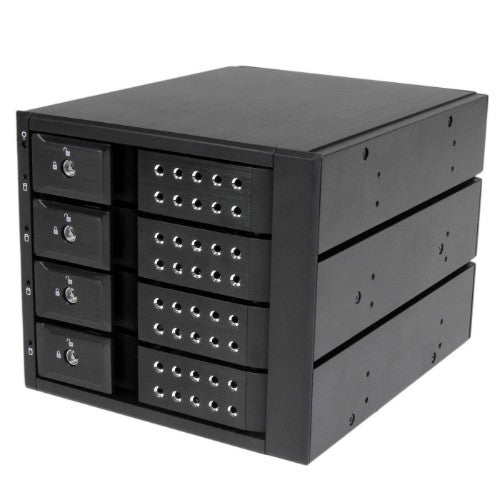

StarTech.com 4 Drive Bay Aluminum Trayless Hot Swap Mobile Rack Backplane with Fan & Lock for 3.5in SAS II / SATA III - 6 Gbps Hard Drive
The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.
The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Description
Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer system in three 5.25” bays, with support for transfer speeds up to 6 GbpsThe HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.
The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Features | |
|---|---|
| LED indicators | Activity, Power |
| Certification | CE, FCC |
| Hot-swap | Yes |
| Key lock | Yes |
| Number of fans | 1 fan(s) |
| Fan diameter | 7 cm |
| Data transfer rate | 6 Gbit/s |
| Product colour | Black |
| Material | Aluminium |
| Technical details | |
| LED indicators | Activity, Power |
| Certification | CE, FCC |
| Hot-swap | Yes |
| Operating relative humidity (H-H) | 5 - 85% |
| Key lock | Yes |
| Operating temperature (T-T) | 0 - 55 °C |
| Number of fans | 1 fan(s) |
| Fan diameter | 7 cm |
| Data transfer rate | 6 Gbit/s |
| Product colour | Black |
| Material | Aluminium |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 385 mm |
| Master (outer) case length | 516 mm |
| Master (outer) case height | 281 mm |
| Package width | 254 mm |
| Package height | 180 mm |
| Package depth | 164 mm |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| External SATA ports quantity | 4 |
| Weight & dimensions | |
| Width | 145 mm |
| Weight | 1.3 kg |
| Height | 124 mm |
| Depth | 197 mm |
| Packaging data | |
| Package weight | 1.59 kg |
| Package width | 254 mm |
| Package height | 180 mm |
| Package depth | 164 mm |
| Packaging content | |
| Screws included | Yes |
| Manual | Yes |
| Cables included | SATA |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Logistics data | |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 385 mm |
| Master (outer) case length | 516 mm |
| Master (outer) case height | 281 mm |
| Harmonized System (HS) code | 84733080 |
