Description

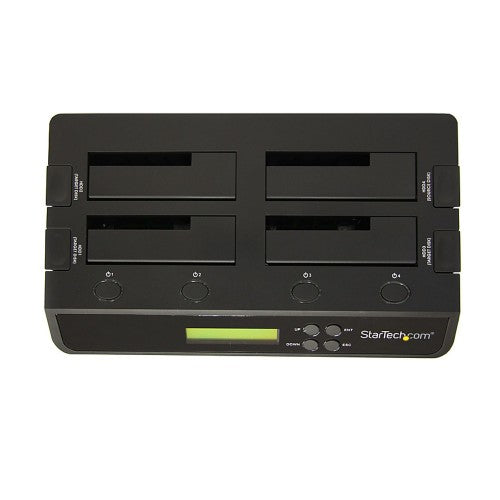

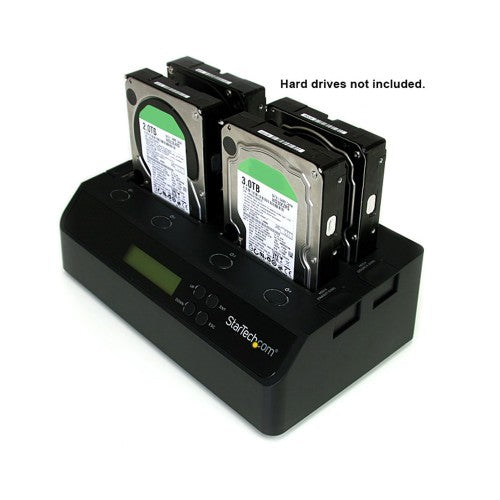

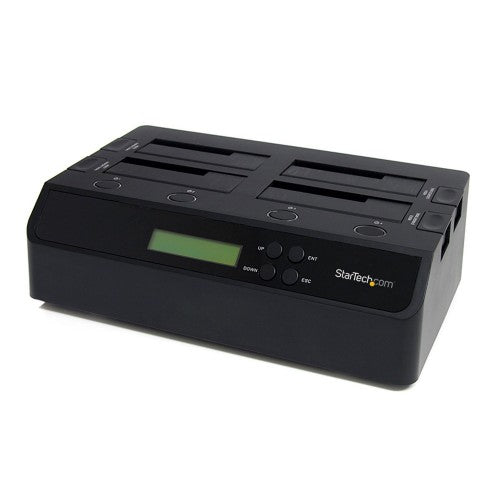

The SATDOCK4U3RE USB 3.0 and eSATA 1-to-3 Hard Drive Duplicator docking station enables you to duplicate/clone a single SATA hard drive to up to three other SATA drives simultaneously, as a standalone device. The duplicator can also function as a regular 4-bay hard drive docking station, by connecting to a host computer system. Large capacity drives (tested with up to 4TB 3.5" and 1TB 2.5" drives per bay) can be used to greatly enhance your computer's storage/backup capabilities.
Able to perform 1:3 sector duplication, including HPA, from a single SATA drive onto three others simultaneously (at a rate of up to 72 MBps), the duplicator/docking station can save you time and effort. As an external HDD dock, it can be connected to your host computer through USB 3.0 or eSATA, providing data transfer speeds up to 5 Gbps or 3Gbps respectively, from the hard drives to your computer system.
Features Quick and Secure Erase functions and support for IDE hard drives using the included SATA to IDE hard drive adapter (SAT2IDEADP).
The StarTech.com Advantage
- Create 3 exact copies of a source SATA drive simultaneously, without having to connect to a computer

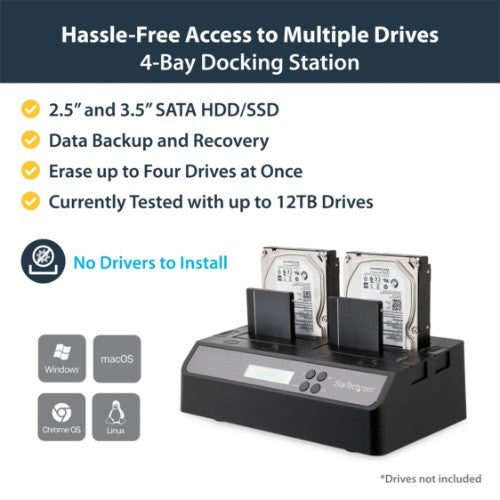

- Access up to 4 SATA hard drives simultaneously over a single USB 3.0 or eSATA connection
- Dual, variable speed fans allows you to adjust the amount of cooling for any kind of environment or drive type,
| Technical details | |
|---|---|
| Product type | HDD duplicator |
| Chipset | JMicron - JMB394 + JMS539 |
| Port multiplier | Yes |
| Number of fans | 2 fan(s) |
| LED indicators | Activity, Power |
| Fan diameter | 6 cm |
| Housing material | Plastic |
| USB connector type | USB Type-B |
| Plug and Play | Yes |
| Maximum supported storage capacity | 16 TB |
| Package width | 170 mm |
| Package height | 215 mm |
| Number of simultaneous copies | 3 copies |
| Interface | USB/eSATA |
| Duplicator operating modes | Copy |
| Product colour | Black |
| Package depth | 343 mm |
| Master (outer) case width | 364 mm |
| Master (outer) case length | 368 mm |
| Master (outer) case height | 475 mm |
| Products per master (outer) case | 4 pc(s) |
| Sustainability certificates | RoHS |
| Hard drive | |
| Supported HDD sizes | 2.5,3.5" |
| Supported HDD interfaces | Serial ATA, Serial ATA II |
| Software | |
| Compatible operating systems | Windows 2000/ XP(32/64-bit)/ Server 2003(32/64-bit)/ Vista(32/64-bit)/ 7(32/64-bit)/ Server 2008 R2, Mac OS X, Linux |
| Power | |
| Output voltage | 12 V |
| Output current | 6.5 A |
| AC input voltage | 110-240 V |
| Included power plug types | EU, NA, UK |
| Power consumption (typical) | 78 W |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 5 - 80 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Weight & dimensions | |
| Weight | 1.1 kg |

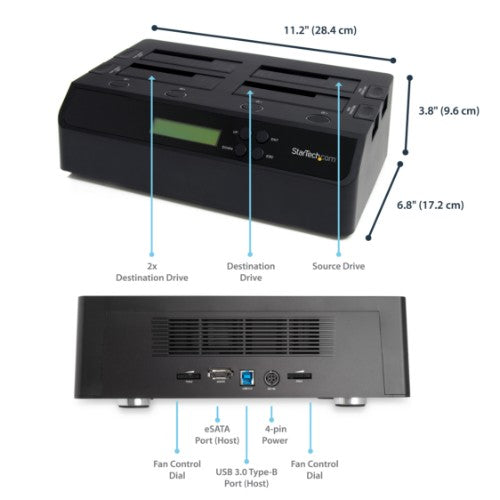

| Dimensions (WxDxH) | 285 x 170 x 94 mm |
| Display | |
| Display | LCD |
| Colour | |
| Product colour | Black |
| Packaging data | |
| Manual | Yes |

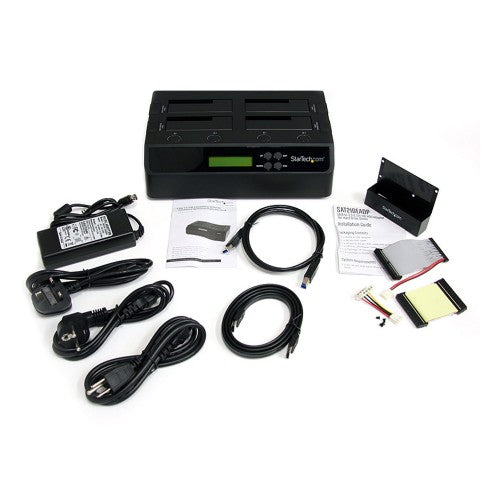

| Cables included | SATA, USB, eSATA |
| AC adapter included | Yes |
| Package width | 170 mm |
| Package height | 215 mm |
| Package weight | 2.73 kg |
| Package depth | 343 mm |
| Certificates | |
| Certification | CE |
| Other features | |
| Output voltage | 12 V |
| Logistics data | |
| Master (outer) case width | 364 mm |
| Master (outer) case length | 368 mm |
| Master (outer) case height | 475 mm |
| Products per master (outer) case | 4 pc(s) |
