Description

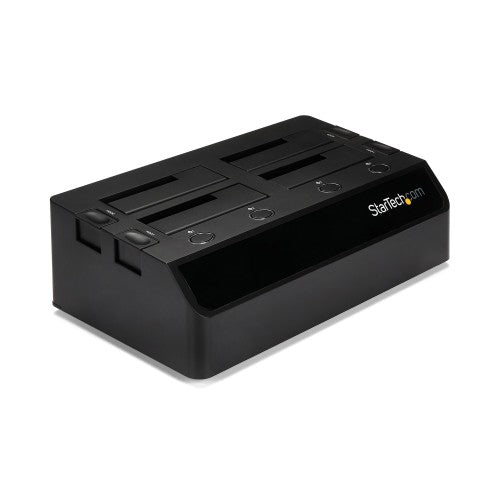

Our SDOCK4U33 Quad-Bay USB 3.0 to SATA Hard Drive Docking Station enables access to up to four 2.5/3.5" SATA drives from your desktop or laptop computer over USB 3.2 Gen 1 (5 Gbps) .
Each drive loads directly into a tray-less top slot, no additional enclosures or tools are required. This dock enables quick access to drives file transfers, troubleshooting purposes, or system configuration/deployment - ideal for technicians and IT professionals.
This hard drive dock features independently powered SATA controllers. These controllers enable the hot-swapping of idle drives, without impacting the function of active drives, saving you time and resources. Two adjustable 40mm cooling fans keep your drives operating at optimal temperatures for performance and reliability.
Extend the compatibility of this HDD/SDD docking station with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), for easy docking of legacy 2.5 or 3.5in. IDE hard drives.
Compatible with Any Capacity or File Format
Compatible with 2.5" and/or 3.5" SATA HDDs and SSDs of any capacity and file format recognized by your host system. This dock works with any Operating System. Drivers and software are not required.
SDOCK4U33 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
,
| Hard drive | |
|---|---|
| Storage media type | HDD, SSD |
| Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Number of storage drives supported | 4 |
| Maximum storage capacity | 8 TB |
| Ports & interfaces | |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
| DC-in jack | Yes |
| Technical details | |
| UASP support | Yes |
| Package width | 214 mm |
| Package height | 170 mm |
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
| Maximum data transfer rate | 6 Gbit/s |
| Product colour | Black |
| Material | Plastic |
| Chipset | VL812+ASM1053E |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | RoHS |
| Features | |
| UASP support | Yes |
| Maximum data transfer rate | 6 Gbit/s |
| LED indicators | Activity, Power |
| Product colour | Black |
| Material | Plastic |
| Certification | CE, FCC |
| Chipset | VL812+ASM1053E |
| Cooling | |
| Number of fans | 2 fan(s) |
| Fan diameter | 4 cm |
| Built-in fan | Yes |
| Power | |
| AC input voltage | 100-240 V |
| Input current | 2.5 A |
| Output voltage | 12 V |
| Output current | 6.5 A |
| Software | |
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Width | 171.2 mm |
| Depth | 285 mm |
| Height | 85 mm |
| Weight | 1.03 kg |
| Packaging data | |
| Package depth | 341 mm |
| Package width | 214 mm |
| Package height | 170 mm |
| Package dimensions (WxDxH) | 168 x 340 x 213 mm |
| Package weight | 2.18 kg |
| Packaging content | |
| Included power plug types | AU, EU, NA, UK |
| AC adapter included | Yes |
| Cables included | USB |
| Manual | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Certificates | |
| Certification | CE, FCC |
| Indication | |
| LED indicators | Activity, Power |
| Ethernet LAN features | |
| LED indicators | Activity, Power |
| Other features | |
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
| Chipset | VL812+ASM1053E |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 361 mm |
| Master (outer) case length | 473 mm |
| Master (outer) case height | 357 mm |
| Products per master (outer) case | 4 pc(s) |
| Harmonized System (HS) code | 84733080 |
