StarTech.com 5 Port Unmanaged Industrial Gigabit PoE Switch with 4 Power over Ethernet ports

StarTech.com 5 Port Unmanaged Industrial Gigabit PoE Switch with 4 15.4W Power over Ethernet ports - Wall Mountable PoE Network Switch

Description

Connect Gigabit Ethernet and power to 4 PoE-enabled devices, with 15.4W per-port output

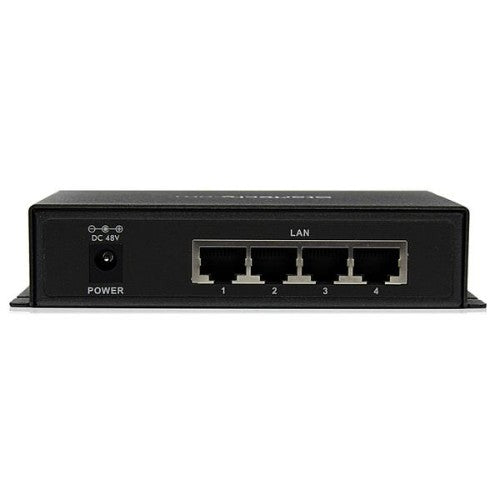

The IES51000POE 5-Port Gigabit PoE Switch with 4 PSE ports lets you connect Gigabit Ethernet and power to up to 4 PoE-enabled devices, or a mixture of PoE and non-PoE components.

Giving you the freedom to place your equipment in locations where power outlets are not available, this compact Power over Ethernet switch complies with IEEE 802.3af standards and supplies up to 15.4 W per port, with a total power budget of 62W. A true unmanaged switching solution, the 4 PSE (Power Sourcing Equipment) ports sense whether the connected devices are PoE-ready or require data connectivity only, while all 5 ports auto-negotiate between 10/100/1000 Mbps network speed and duplex.

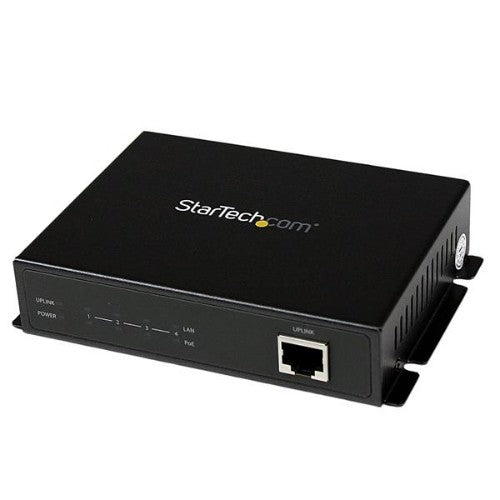

The Gigabit Ethernet switch features a sturdy, wall-mountable metal enclosure for durability, and front panel LEDs for quick indication of connection speed and status.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Power your devices without running electrical wiring with a full 15.4 W power per port
- Reduce expenses by using existing standard Cat5/5e/6 Ethernet cabling to deliver power and data
- Provides durable performance in harsh environments with a sturdy steel construction

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	5
Power connector	DC-in jack
Copper ethernet cabling technology	1000BASE-TX, 100BASE-TX, 10BASE-T
Network
Copper ethernet cabling technology	1000BASE-TX, 100BASE-TX, 10BASE-T
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Auto MDI/MDI-X	Yes
10G support	No
Optical fiber
Fiber ethernet cabling technology	100BASE-FX
Data transmission
Switching capacity	2 Gbit/s
Store-and-forward	Yes
Design
Product colour	Black
LED indicators	Yes
Housing material	Steel
Rack mounting	No
Power
AC input voltage	100 - 240 V
Output power	64.8 W
Number of power supply units	1
Input current	2 A
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet (PoE)	Yes
Other features
Power LED	Yes
Operational conditions
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	90 mm
Depth	130 mm
Height	28 mm
Weight	366 g
Packaging content
Manual	Yes
Cables included	AC
Packaging data
Package width	201 mm
Package depth	370 mm
Package height	74 mm
Package weight	1.41 kg
Manual	Yes
Cables included	AC
Technical details
Product colour	Black
Housing material	Steel
Rack mounting	No
Indication
Power LED	Yes
LED indicators	Yes
