StarTech.com | SKU:
SV831DUSBAU
StarTech.com 8 Port Rackmount USB VGA KVM Switch w/ Audio (Audio Cables Included)
€383.94
Unit price
/
Unavailable
Shipping calculated at checkout.
StarTech.com 8 Port Rackmount USB VGA KVM Switch w/ Audio (Audio Cables Included) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
StarTech.com 8 Port Rackmount USB VGA KVM Switch w/ Audio (Audio Cables Included)

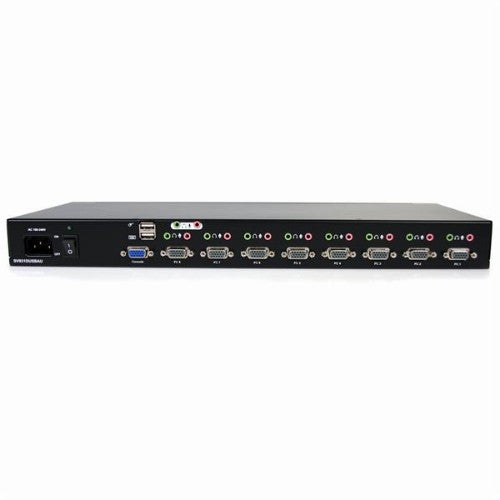

Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary.
To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Rugged, rack mountable 1U metal chassis is ideal for any environment
- User friendly access through the OSD saves configuration time and frustration
- Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver
Description
The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features Audio and Microphone ports to switch between audio signals as well as PC ports.Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary.
To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Rugged, rack mountable 1U metal chassis is ideal for any environment
- User friendly access through the OSD saves configuration time and frustration
- Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver
Specifications
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub) |
| USB connector type | USB Type-A |
| Number of microphone inputs | 8 |
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| USB 2.0 ports quantity | 2 |
| Headphone outputs | 8 |
| DC-in jack | Yes |
| Performance | |
| Daisy chain | Yes |
| Plug and Play | Yes |
| Maximum resolution | 1920 x 1440 pixels |
| Number of users | 1 user(s) |
| Maximum analog resolution | 1920 x 1440 pixels |
| Technical details | |
| Product colour | Black |
| Rack mounting | Yes |
| Plug and Play | Yes |
| On Screen Display (OSD) | Yes |
| Number of users | 1 user(s) |
| LED indicators | Yes |
| IP control | No |
| Audio support | Yes |
| Cascadable | Yes |
| Compliance certificates | RoHS |
| Design | |
| Product colour | Black |
| Rack mounting | Yes |
| LED indicators | Yes |
| Certification | CE, FCC, UL |
| Cascadable | Yes |
| Rack capacity | 1U |
| Housing material | Steel |
| Display | |
| On Screen Display (OSD) | Yes |
| Power | |
| Input current | 1.8 A |
| Output current | 4 A |
| Power plug type | Type M |
| Output voltage | 12 V |
| Power consumption (typical) | 48 W |
| Input voltage | 110-240 V |
| Video | |
| Maximum resolution | 1920 x 1440 pixels |
| Maximum analog resolution | 1920 x 1440 pixels |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 540 mm |
| Depth | 180 mm |
| Height | 45 mm |
| Weight | 2.6 kg |
| Package width | 123 mm |
| Package depth | 591 mm |
| Package height | 264 mm |
| Package weight | 4.7 kg |
| Packaging data | |
| Package width | 123 mm |
| Package depth | 591 mm |
| Package height | 264 mm |
| Package weight | 4.7 kg |
| Packaging content | |
| Rubber feet | Yes |
| Cables included | AC |
| Manual | Yes |
| AC adapter included | Yes |
| Certificates | |
| Certification | CE, FCC, UL |
| Other features | |
| IP control | No |
| Audio support | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
