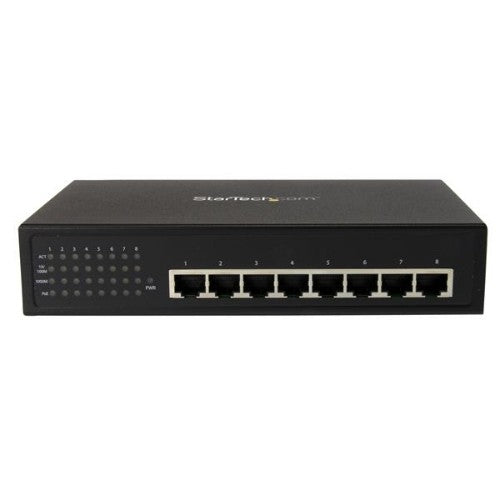

StarTech.com 8 Port Unmanaged Industrial Gigabit Power over Ethernet Switch - 802.3af/at PoE+ Switch - Wall Mountable

StarTech.com 8 Port Unmanaged Industrial Gigabit Power over Ethernet Switch - 802.3af/at PoE+ Switch - Wall Mountable - PoE Network Switch

Description

Connect power and Gigabit Ethernet data to 8 PoE-enabled devices, with 30W per-port output - Wall Mountable

The IES81000POE 8-Port Gigabit Power over Ethernet Switch lets you connect Gigabit Ethernet and power to up to eight PoE-enabled devices, or a mixture of PoE and non-PoE components.

Giving you the freedom to place your equipment in locations where power outlets are not available, this PoE+ switch complies with IEEE 802.3af and 802.3at standards and supplies up to 30 W per port, with a total power budget of 120 W.

A true unmanaged switching solution, the 8 PSE (Power Sourcing Equipment) ports sense whether the connected devices are PoE-ready or require data connectivity only, and also auto-negotiate between 10/100/1000 Mbps network speed and duplex.

The Gigabit Ethernet switch features a sturdy, wall-mountable metal enclosure for durability, and front panel LEDs for quick indication of connection speed and status.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Position your network devices where power outlets aren’t available, with 30 Watts per-port from the switch
- Reduce expenses by using existing standard Cat5/5e/6 Ethernet cabling to deliver power and data
- Provides durable performance in harsh environments with a sturdy steel construction

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
Packet buffer memory	0.128 MB
Switching capacity	2 Gbit/s
Design
Product colour	Black
LED indicators	Activity, Link, PoE
Rack mounting	No
Power
AC input voltage	110 - 240 V
Power consumption (typical)	120 W
Input current	2 A
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-20 - 90 °C
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	188 mm
Depth	119 mm
Height	38 mm
Weight	750 g
Packaging content
Manual	Yes
Packaging data
Package width	197 mm
Package depth	371 mm
Package height	69 mm
Package weight	1.75 kg
Manual	Yes
Performance
Packet buffer memory	0.128 MB
Technical details
Product colour	Black
Rack mounting	No
Memory
Packet buffer memory	0.128 MB
Indication
LED indicators	Activity, Link, PoE
