StarTech.com Dual M.2 NGFF SATA Adapter with RAID

StarTech.com Dual M.2 NGFF SATA Adapter with RAID

Description

Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 solid-state drives in a single 2.5” drive bay and configure a powerful RAID array.

Build a RAID array to enhance system performance
The dual M.2 to SATA adapter supports multiple RAID modes (RAID 0, 1, BIG) helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another.

Maximize file transfer speeds
The dual SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SSDs in place of a platter drive reduces your data transfer bottlenecks and gives you file transfer speeds of up to 6 Gbps. M.2 SSDs also save you money by reducing your power consumption over regular platter drives.

The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.

Get dependable drive protection
The M.2 to SATA adapter features an enclosed housing that helps protect your NGFF (Next Generation Form Factor) SSD. The added protection gives you peace of mind when you are using your M.2 drives in applications that require an added level of durability such as hot-swap drive bays, or external SATA docking stations.

The 25S22M2NGFFR is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Ports & interfaces
Internal	No
Port multiplier	Yes
Output interface	M.2
SATA revision	3.0
Host interface	SATA
Technical details
Chipset	ASMedia - ASM1092R
RAID levels	0, 1, BIG, JBOD
Data transfer rate (max)	6 Gbit/s
Material	Plastic, Steel
Compliance certificates	RoHS
Performance
Port multiplier	Yes
Chipset	ASMedia - ASM1092R
RAID levels	0, 1, BIG, JBOD
Data transfer rate (max)	6 Gbit/s
Product colour	Black, Metallic, White, Yellow
Harmonized System (HS) code	84733020
Colour
Product colour	Black, Metallic, White, Yellow
Design
Mean time between failures (MTBF)	500000 h
Internal	No
Product colour	Black, Metallic, White, Yellow
Features
Chipset	ASMedia - ASM1092R
RAID levels	0, 1, BIG, JBOD
Data transfer rate (max)	6 Gbit/s
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 85 °C
Operating relative humidity (H-H)	5 - 95%

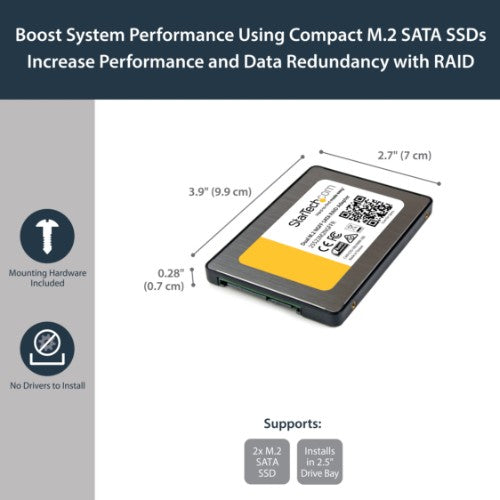

Weight & dimensions
Width	68 mm
Depth	98 mm
Height	8 mm
Weight	55 g
Package width	131 mm
Package depth	165 mm
Package height	31 mm
Package weight	118 g
Packaging data
Package width	131 mm
Package depth	165 mm
Package height	31 mm
Package weight	118 g
Quick installation guide	Yes
Logistics data
Harmonized System (HS) code	84733020
Other features
Material	Plastic, Steel
Chipset	ASMedia - ASM1092R

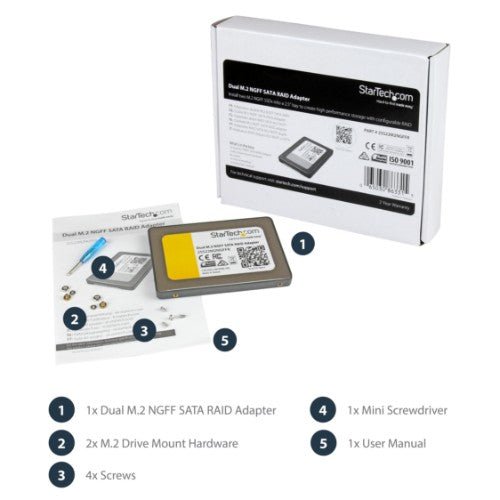

Packaging content
Quick installation guide	Yes
