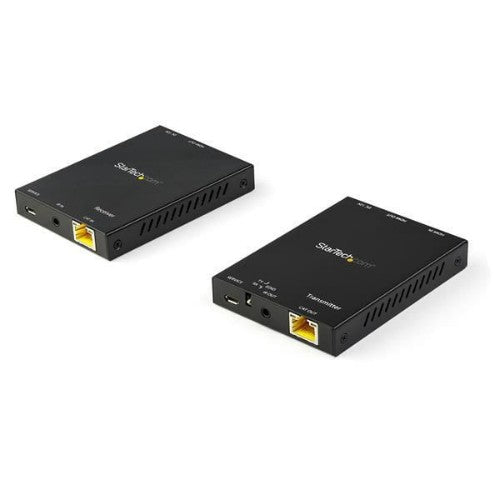

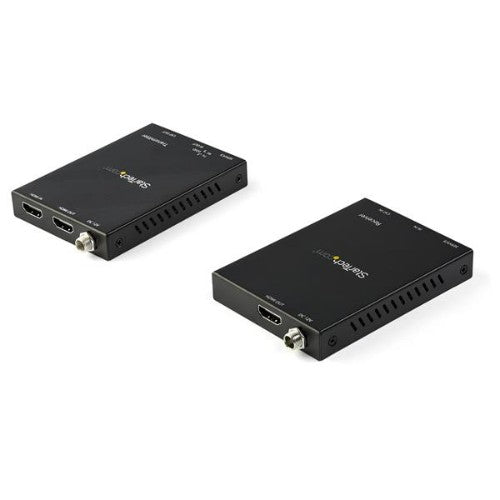

StarTech.com HDMI over CAT6 Extender Kit - 4K 60Hz

HDMI Balun Kit | HDR | 4:4:4 | 7.1 Audio Support | 165 ft. (50 m)

This HDMI over CAT6 extender lets you transmit your 4K 60Hz signal up to 165 ft. (50 m) over a single CAT6 cable, with the added benefit of a local HDMI output. The extender supports High Dynamic Range (HDR), providing high contrast images with enhanced video.

Astonishing 4K Picture Quality

This HDMI Ethernet extender supports a 4K 60Hz (3840 x 2160) resolution, providing four times the picture quality of high-definition (1080p). The extender supports HDMI 2.0 capabilities, offering 4:4:4 chroma subsampling. This ensures a crystal-clear picture that's ideal for delivering video content. With HDR support, you can enjoy increased contrast, color brightness and greater luminosity in your images.

Long-Distance Transmission

Extend an HDMI signal to up to 165 ft. (50 m) with the HDMI to CAT6 converter. Use your existing CAT6 cable infrastructure with a direct connection to the converter for an easy run through walls and ceilings, saving you on installation costs.

Compatible with HDCP 2.2 Devices

Connect your HDMI 2.0 devices and displays with confidence, knowing this extender is HDCP 2.2 compliant. This lets you harness the capabilities of HDMI-enabled devices such as Blu-ray players or online streaming devices in higher resolutions. It is also backward compatible with previous generations of HDMI and HDCP.

ST121HD20V is backed by 2-year StarTech.com warranty with free lifetime technical support.

The StarTech.com Advantage

- Crystal-clear picture quality with support for resolutions up to 4K 60Hz
- Compatible with HDR and 4:4:4 chroma subsampling for lifelike images
- Hassle-free setup with long-distance transmission over a reliable connection,

Features
HDCP	Yes
Audio output channels	7.1 channels
Maximum refresh rate	60 Hz
Certification	CE, FCC, REACH
Type	AV transmitter & receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat6
Maximum transfer distance	50 m
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
Product colour	Black
HDCP version	2.2
Technical details
HDCP	Yes
Audio output channels	7.1 channels
Maximum refresh rate	60 Hz
Certification	CE, FCC, REACH
Type	AV transmitter & receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat6
Maximum transfer distance	50 m
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
Product colour	Black
Connectivity technology	Wired
Sustainability certificates	RoHS
Harmonized System (HS) code	85176200
Ports & interfaces
RJ-45 input ports	1
RJ-45 output ports	1
HDMI in	1
Number of HDMI outputs	2
HDMI version	2.0
Connectivity technology	Wired
Power
Input current	0.3 A
Output current	1 A
Power plug type	Type M
Operating voltage (transmitter)	12 V
Operating voltage (receiver)	12 V
AC input voltage	100 - 240 V
Operational conditions
Operating relative humidity (H-H)	0 - 80%
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Width	70 mm
Package depth	220 mm
Height	13 mm
Depth	97 mm
Package width	130 mm
Package height	70 mm
Weight	156 g
Package weight	777 g
Packaging data
Package depth	220 mm
Package width	130 mm
Package height	70 mm
Package weight	777 g

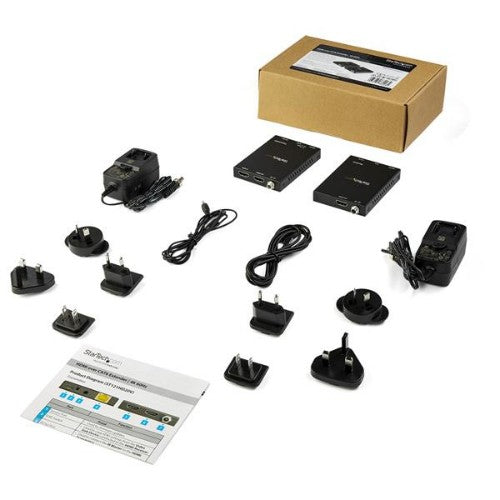

Packaging content
IR receiver included	Yes
IR blaster included	Yes
Quick start guide	Yes
Included power plug types	ANZ, EU, JP, NA, UK
Logistics data
Master (outer) case width	375 mm
Master (outer) case length	457 mm
Master (outer) case height	282 mm
Products per master (outer) case	20 pc(s)
Harmonized System (HS) code	85176200
