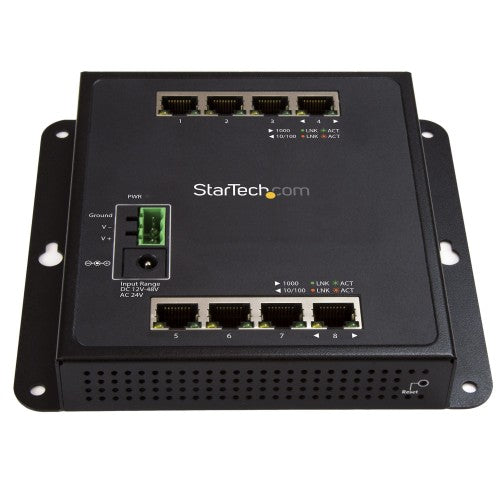

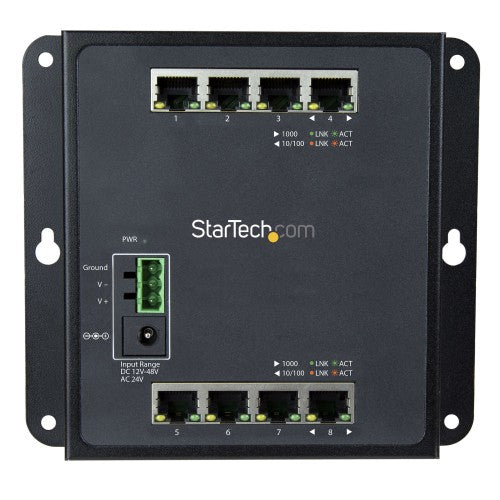

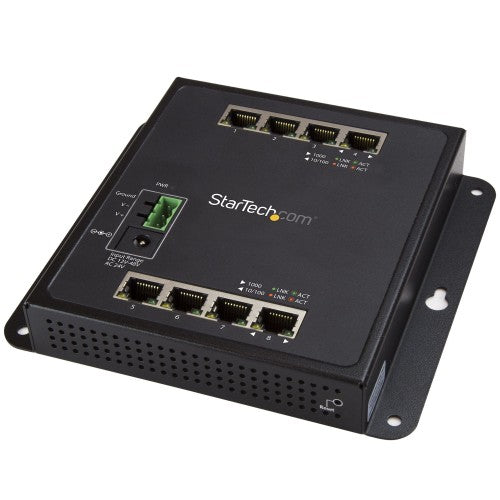

StarTech.com Industrial 8 Port Gigabit Ethernet Switch - Hardened Compact GbE Layer/L2 Managed Switch - Rugged Network Switch Din Rail/Wall Mountable RJ45/LAN Switch IP-30/-40C to +75C Temp

StarTech.com Industrial 8 Port Gigabit Ethernet Switch - Hardened Compact GbE Layer/L2 Managed Switch - Rugged Network Switch Din Rail/Wall Mountable RJ45/LAN Switch IP-30/-40C to +75C Temp (IES81GW)

Key Features

• Expands your network with 8 RJ45 ports in one Gigabit network switch
• Designed for harsh industrial environments with IP30 rugged metal housing and extended temperature range
• Easy access to ports and indicators with front-facing port configuration
• Install discreetly with the compact wall-mount or DIN-rail mount design
• Achieve optimal network performance with L2 management

Description

Industrial Managed Ethernet Switch | 10/100/1000Mbps | 8 RJ45 Ports | Wall-MountableAdd eight copper Gigabit Ethernet (GbE) connections with this 8-port Gigabit Ethernet switch, making it easy to deploy or scale your existing network.Expand Your NetworkThis versatile GbE switch adapts to your network needs by adding eight RJ45 Ethernet ports. The network switch allows you to connect up to eight RJ45 devices, so different users can share files and devices, such as printers and scanners, over a LAN connection.Intelligent Layer 2 ManagementThis Layer 2 switch delivers efficient and stable performance, with Layer 2 management capabilities. It controls packet traffic on a busy network and customizes settings to achieve optimal network performance.Reliable Network Performance✔ 10/100/1000 Mbps transfer speeds✔ Jumbo frames✔ Redundant 12-58V DC terminal block✔ Full/half-duplex auto-negotiation✔ Auto MDI/MDIX operation✔ IPv4 and IPv6 dual stack management✔ Link aggregation✔ VLAN tagging✔ Spanning tree protocolCompact, Mountable and Rugged DesignAt only 5.3 x 5.8 inches and 1.08 lb., it is designed to be wall or DIN-rail mounted in tight spaces that are exposed to significant electromagnetic interference while still providing easy port access. The IP30-rated metal housing and extended operating temperature range of -40°C to 75°C makes it ideal for harsh industrial environments.StarTech.com offers a wide variety of network switches, making it easy to expand your network connections and provide power to devices in hard-to-power locations. This wall-mount Ethernet switch is backed by a 2-year warranty and free lifetime North American based Technical Support.The StarTech.com Advantage

Specifications

Ports & interfaces
Terminal block port	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-TX
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Virtual LAN features
Virtual LAN features	Tagged VLAN
Power
Power connector	DC-in jack
Output voltage	12 V
Power plug type	Type M
Output current	1.5 A
Power supply included	Yes
DC input voltage	12 - 48 V
Technical details
Product colour	Black
Mean time between failures (MTBF)	100000 h
Housing material	Steel
Rack mounting	No
Management features
Switch type	Managed
Switch layer	L2
Network
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-TX
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Spanning tree protocol	Yes
Link aggregation	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
Virtual LAN features	Tagged VLAN
Data transmission
Jumbo frames	9000
Store-and-forward	Yes
Jumbo frames support	Yes
Security
Access Control List (ACL)	Yes
Protocols
Management protocols	IPv4, IPv6
Certificates
Certification	CE, FCC, RoHS, TAA
Design
Wall mountable	Yes
International Protection (IP) code	IP30
Product colour	Black
LED indicators	Activity, Link, Power
Housing material	Steel
Certification	CE, FCC, RoHS, TAA
Rack mounting	No
Performance
Maximum data transfer rate	2000 Mbit/s
Maximum cable length	100 m
Buffer size	512 KB
Plug and Play	Yes
Mean time between failures (MTBF)	100000 h
Harmonized System (HS) code	85176990
Indication
LED indicators	Activity, Link, Power
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 90 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	148 mm
Depth	134 mm
Height	25 mm
Weight	490 g
Packaging data
Terminal block included	Yes
AC adapter included	Yes
Washers included	Yes
Screws included	Yes
Pinlock included	Yes
Dust cap included	Yes
DIN rail included	Yes
Quick start guide	Yes
Package width	170 mm
Package depth	300 mm
Package height	90 mm
Package weight	1 kg
Logistics data
Master (outer) case width	480 mm
Master (outer) case length	420 mm
Master (outer) case height	365 mm
Products per master (outer) case	10 pc(s)
Other features
Terminal block port	Yes

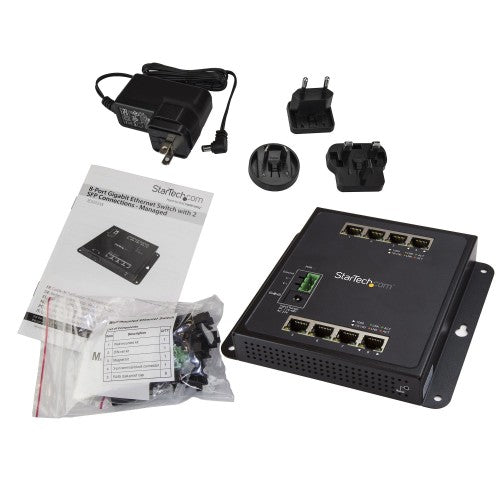

Packaging content
Terminal block included	Yes
AC adapter included	Yes
Washers included	Yes
Screws included	Yes
Pinlock included	Yes
Dust cap included	Yes
DIN rail included	Yes
Quick start guide	Yes
