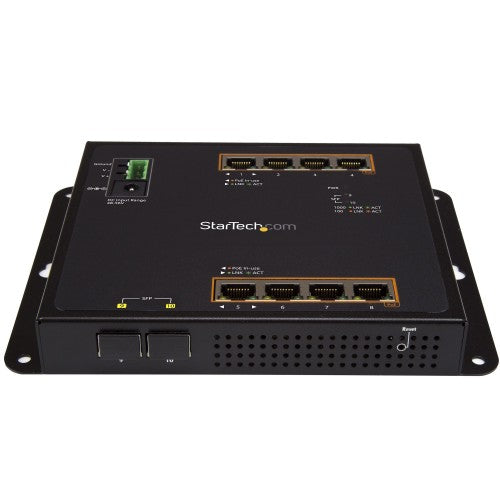

StarTech.com Industrial 8 Port Gigabit PoE+ Switch w/2 SFP MSA Slots - 30W - Layer/L2 Switch Hardened GbE Managed - Rugged High Power Gigabit Ethernet Network Switch IP-30/-40 C to 75 C

Add up to 10 different GbE devices to your network, using 8 RJ45 (PoE+) and 2 fiber-optic connections, with intelligent Layer 2 managementEasily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet ports (PoE+) and two fiber-optic SFP slots. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited.Expand your networkThis versatile switch adapts to your network needs by providing two open SFP slots and eight RJ45 Ethernet ports (PoE+), providing both fiber and copper connections in a single network device. The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch enables you to connect up to eight RJ45 PoE+ devices, so different users can share files and devices, such as printers and scanners, over a LAN connection.Supports PoE+ for flexible useDual power input (terminal block and DC plug) provides flexible power options. The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (200W budget).Wall-mountable with front accessWall-mount the compact Gigabit switch to provide convenient front access to ports and indicators. It’s ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.Efficient Layer 2 managementThe switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.Rugged IP30 industrial designThis rugged network switch features an IP30-rated metal housing and extended temperature range of -40°C to 75°C, which makes it ideal for a wide range of operating conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.Reliable connection for seamless network performanceWith support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.The IES101GP2SFW is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage,

Ports & interfaces
Terminal block port	Yes
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Virtual LAN features
Virtual LAN features	Tagged VLAN
Technical details
Product colour	Black
Mean time between failures (MTBF)	100000 h
Housing material	Steel
Rack mounting	No
Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Switch layer	L2
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
Spanning tree protocol	Yes
Link aggregation	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Virtual LAN features	Tagged VLAN
Data transmission
Store-and-forward	Yes
Security
Access Control List (ACL)	Yes
Certificates
Certification	CE, FCC, RoHS
Design
Wall mountable	Yes
International Protection (IP) code	IP30
Product colour	Black
LED indicators	Activity, Link
Housing material	Steel
Certification	CE, FCC, RoHS
Rack mounting	No
Performance
Maximum data transfer rate	2000 Mbit/s
Maximum cable length	100 m
Buffer size	512 KB
Mean time between failures (MTBF)	100000 h
Harmonized System (HS) code	85176990
Indication
LED indicators	Activity, Link
Power
Power plug type	Type M
Input voltage	12 - 48 V
Input current	1 A
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	200 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 90 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	178 mm
Depth	134 mm
Height	25 mm
Weight	618 g
Packaging data
Terminal block included	Yes
Quick start guide	Yes
Package width	170 mm
Package depth	300 mm
Package height	90 mm
Package weight	900 g
Logistics data
Master (outer) case width	325 mm
Master (outer) case length	370 mm
Master (outer) case height	470 mm
Products per master (outer) case	10 pc(s)
Harmonized System (HS) code	85176990
Other features
Terminal block port	Yes
Input voltage	12 - 48 V
Packaging content
Terminal block included	Yes
Quick start guide	Yes
