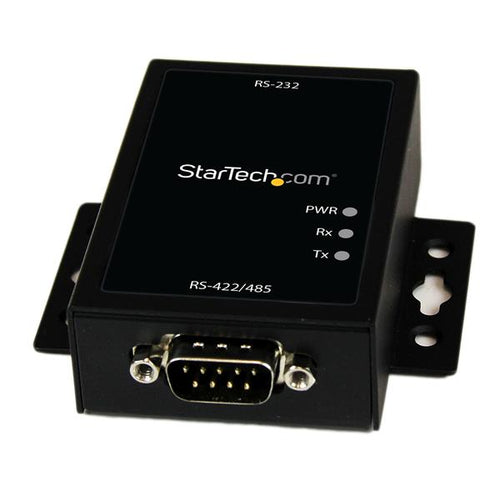

StarTech.com Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection

StarTech.comSKU: IC232485S

Delivery: Fast Delivery products shipped within 2 working days from date of order.

No Customs Charges Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.

Price:
Sale price€111.50

Tax included Shipping calculated at checkout

Description

Convert an RS232 data signal to either RS485 or RS422 with this wall-mountable, ESD-protected adapter

The IC232485S Industrial RS232 to RS-422/485 Serial Converter is a bi-directional adapter that lets you adapt an RS232 data signal to either RS485 (2 or 4-wire) or RS422 and vice-versa, with support for baud rates up to 921.6 Kbps.

Ideal for industrial environments, the serial port converter provides 15KV ESD protection on all signal pins to protect costly and often sensitive control equipment against electrical damage. The serial converter also features a sturdy wall-mountable metal housing with Power, Tx and Rx LED indicators for simple status monitoring.

The adapter supports auto baud rate detection as well as RS-422 and RS485 mode detection, with an integrated dip switch for manual mode selection if needed, and supports connection distances of up to 4000ft (1200m).

Backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

- Protect sensitive industrial equipment with integrated ESD protection
- Communicate efficiently with connected devices through high-speed 921Kbps support
- Suitable for industrial environments with a rugged, wall-mountable enclosure,
Technical details
Connector 1 DB-9
Connector 2 DB-9
Maximum cable length 1200 m
Connector gender Male/Female
Output interface RS-232
Host interface RS-232
Product colour Black
Compliance certificates RoHS
Weight & dimensions
Width 59 mm
Depth 117 mm
Height 22 mm
Package width 208 mm
Package depth 146 mm
Package height 41 mm
Package weight 351 g
Weight 143 g
Power
Input voltage 110 - 240 V
Input current 0.3 A
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 50 °C
Operating relative humidity (H-H) 5 - 85%
Packaging data
Manual Yes
Certificates
Certification CE, FCC, REACH
Material
Housing material Steel
