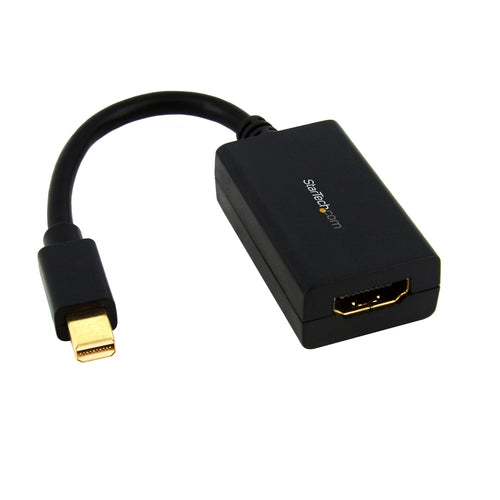

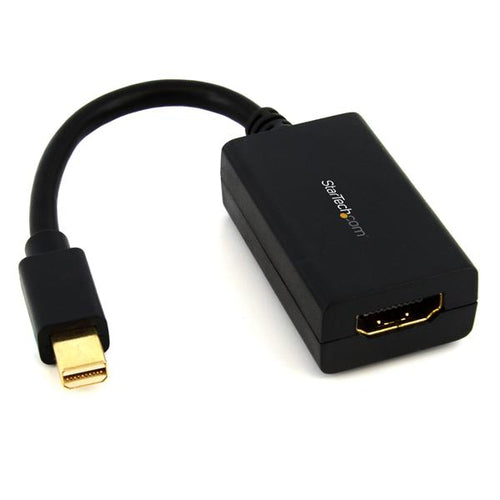

StarTech.com Mini DisplayPort to HDMI Adapter - mDP to HDMI Video Converter - 1080p - Mini DP or Thunderbolt 1/2 Mac/PC to HDMI Monitor/Display/TV - Passive mDP 1.2 to HDMI Adapter Dongle - Upgraded Version is MDP2HDEC

StarTech.com Mini DisplayPort to HDMI Adapter - 1080p - Mini DP to HDMI Monitor/Display/TV - Passive mDP 1.2 to HDMI Adapter Dongle Video Converter - Upgraded Version is MDP2HDEC (MDP2HDMI)

Key Features

• PERFORMANCE: mDP 1.2 to HDMI 1.4 adapter connects your mDP host to an HDMI display / 1920x1200/1080p 60Hz Video, 7.1ch Audio, HDCP 1.4, DPCP, 5" (13cm) attached cable / Upgraded version available with 12"/30cm attached cable for extended reach (MDP2HDEC)
• HOST COMPATIBILITY: Passive Mini DP to HDMI display adapter supports mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
• INCREASE PRODUCTIVITY: Mini DisplayPort to HDMI adapter connects an HDMI monitor, TV or projector, or add a second display to your workstation; Compact, small form factor design makes it easy to carry between home office and office
• RELIABLE CONNECTION: MiniDisplayPort to HDMI video converter is designed with gold-plated connectors to ensure enhanced signal quality / Tested with HDMI cables up to 50ft (15m)
• EASY TO USE: With no software or drivers required, the mDP to HDMI adapter dongle works with any OS including macOS, Windows & Ubuntu; Compatible with MiniDP devices like Microsoft Surface PCs or TB1/TB2 MacBooks

Description

Connect an HDMI® enabled display to a Mini DisplayPort® equipped PC or MAC

This Mini DisplayPort to HDMI® adapter lets you connect your mDP computer to an HDMI, television, projector or monitor. The adapter works with Mini DisplayPort computers like your Ultrabook™ or any of the Microsoft® Surface™ Pro devices with mDP.

Easily connect your Mini DisplayPort computer to an HDMI display

The mDP to HDMI adapter lets you connect your Mini DisplayPort laptop, desktop or tablet to an HDMI display. The adapter is compatible with mDP ports as well as Thunderbolt 1 and Thunderbolt 2 I/O ports, and supports plug-and-play connectivity ensuring a hassle-free setup.

Works with HD TVs

The Mini DisplayPort adapter features a female HDMI connector that supports 7.1 audio, making your mDP computer fully compatible with an HDMI television or projector in your home or around your office.

Designed for maximum portability

The Mini DisplayPort to HDMI converter maximizes portability with a compact, lightweight design, making it the perfect travel accessory to carry with your Surface Pro or Ultrabook, fitting easily into your laptop bag or carrying case. This ultra-portable design makes this adapter perfect for BYOD (Bring Your Own Device) applications at the office.

Crystal-clear picture quality

With support for video resolutions up to 1080p, you’ll be surprised at the picture spectacular picture quality this adapter provides. The adapter harnesses the video capabilities built into your mDP connection to deliver every detail in stunning high-definition.

The MDP2HDMI is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Features
Converter type	Passive video converter
Chipset	NXP Semiconductors PTN3361B
HDMI version	1.4
DisplayPort version	1.2
Product colour	Black
Cable length	0.13 m
Connector 1	Mini DisplayPort
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Female
Maximum resolution	1920 x 1200 pixels
Supported video modes	1080p
HDCP	Yes
Plug and Play	Yes
Certification	RoHS, CE, FCC
Connector 1 form factor	Straight
Connector 2 form factor	Straight
HDCP version	1.4
DisplayPort Content Protection (DPCP)	Yes
Supported audio channels	7.1
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 80 °C
Operating relative humidity (H-H)	10 - 85%
Certificates
Certification	RoHS, CE, FCC
Compliance certificates	CE, RoHS
Other features
Width	40 mm
Height	15 mm
Depth	76.2 mm
Weight & dimensions
Width	40 mm
Height	15 mm
Depth	76.2 mm
Weight	20 g
Package width	200 mm
Package depth	220 mm
Package height	17 mm
Package weight	29 g
Packaging data
Package width	200 mm
Package depth	220 mm
Package height	17 mm
Package weight	29 g
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Technical details
Harmonized System (HS) code	84733080
Compliance certificates	CE, RoHS
Logistics data
Master (outer) case width	504 mm
Master (outer) case length	332 mm
Master (outer) case height	212 mm
Products per master (outer) case	220 pc(s)
Harmonized System (HS) code	84733080
