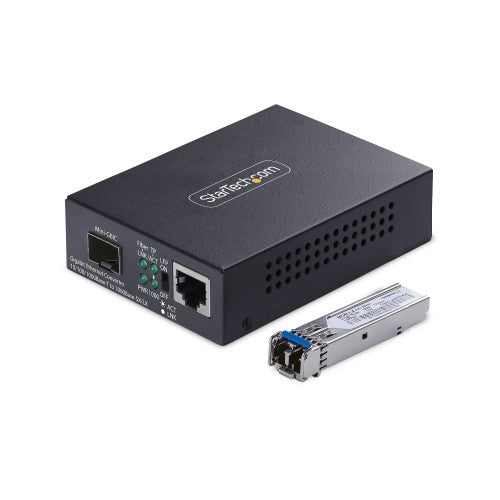

StarTech.com Single-Mode (SM) LC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to Fiber Converter, 40km - TAA

StarTech Single-Mode (SM) LC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to Fiber Converter, 40km - TAA

Key Features

• Extend Ethernet Over Extraordinary Distances: Convert and extend a 10/100/1000 Mbps Ethernet signal to Gigabit single-mode LC fiber, up to 40km (24.8mi); For specialized edge, industrial / remote deployments requiring long-range, secure wired connectivity
• Reliable Performance & Diagnostics: Compatible with 1000BASE-T (IEEE 802.3ab) and 1000BASE-LX (IEEE 802.3z); Supports full/half duplex, 9K jumbo frames, auto-negotiation, and auto MDI/MDI-X; DIP switch enables Link Fault Passthrough (LFP) with LLCF/LLR
• Durable, Compact Design: Metal chassis provides strong shielding and durability; Compact size fits into tight spaces or compatible chassis (MCM7-MEDIA-CHASSIS, MCM15-MEDIA-CHAASIS); LED indicators enable at a glance monitoring of link, power, and activity
• Install Flexibly in Any Environment: Plug-and-play media converter supports wall, DIN rail, or chassis mounting for secure placement in server rooms or network closets; Includes a 5V DC power adapter for consistent operation
• The IT Pro's Choice: Engineered for edge, on-prem, and aerospace/defense applications requiring compliant connectivity; TAA certified and lab-tested for mission-critical reliability and backed by free lifetime 24/5 multilingual technical support

Description

Convert and extend a Gigabit Ethernet connection up to 24.8 miles (40km) over Single Mode LC fiber.

This Gigabit Ethernet to fiber media converter offers a reliable way to extend your network up to 40 km (24.8 mi.) using single-mode LC fiber, providing increased range, enhanced security, and reduced interference compared to copper-based connections. It's TAA compliant and designed for government and commercial applications where long-distance and rack-mountable fiber access is needed.

Built for Versatility and Performance

Convert 10/100/1000 Mbps RJ-45 to Gigabit LC fiber using a media converter that complies with IEEE 802.3 standards. It supports full/half duplex, auto-negotiation, MDI/MDI-X, and 9K jumbo frames for high-performance networking in mixed copper-fiber environments.

Smart Diagnostics and Rugged Design

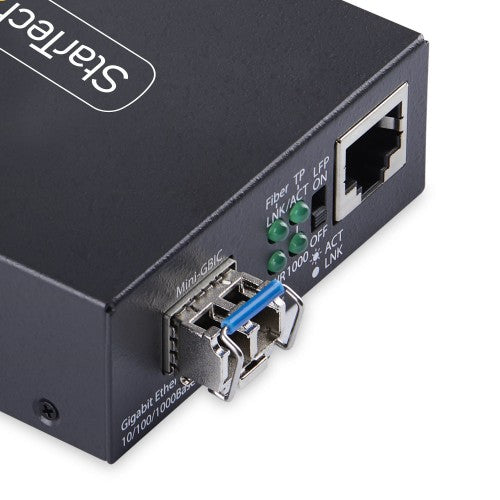

Built with a compact full metal chassis, this converter includes LED indicators for power and link activity, plus a DIP switch to enable Link Fault Passthrough (LFP) with LLCF/LLR for easier network troubleshooting and reliability.

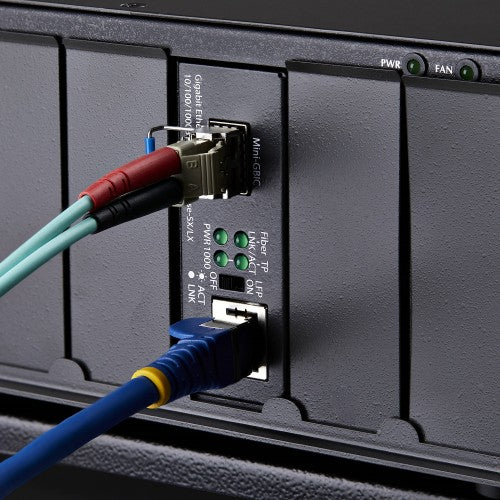

Flexible Installation for Any Network Setup

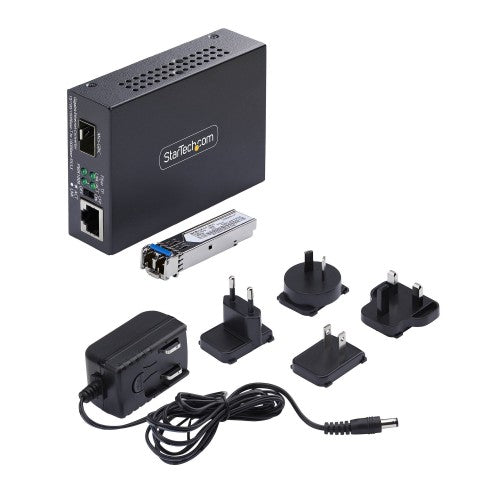

Deploy in minutes with plug-and-play setup and multiple mounting options including wall-mount, DIN-rail, or media chassis installation. It includes a 5V DC, 2A power adapter, making it ideal for server rooms or network closets.

Specifications

Network
Jumbo frames support	Yes
Flow control support	No
Auto-negotiation	Yes
Jumbo frames	9000
Converter input interface	10Base-T, 100Base-TX, 1000Base-T
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Duplex system	Full, Half
Converter output interface	1000Base-LX
Auto MDI/MDI-X	Yes
Maximum data transfer rate	2000 Mbit/s
Link Fault Pass-through (LFP)	Yes
Fiber optic connector	LC
Performance
Wavelength-division multiplexing (WDM)	No
Wavelength	1310 nm
Maximum transfer distance	40000 m
Fiber mode structure	Single-mode
Mean time between failures (MTBF)	50000 h
Jumbo frames support	Yes
Flow control support	No
Auto-negotiation	Yes
Features
Housing material	Metal
LED indicators	Yes
Product colour	Black
Internal	No
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	LC
Power
Power over Ethernet (PoE)	No
Input voltage	100 - 240 V
Input current	0.4 A
Output voltage	5 V
Output current	2 A
Power consumption (typical)	4.6 W
Weight & dimensions
Width	94 mm
Depth	79 mm
Height	26 mm
Package depth	280 mm
Package width	133 mm
Package height	66 mm
Package weight	328 g
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Packaging content
AC adapter included	Yes
User guide	Yes
Packaging data
Package depth	280 mm
Package width	133 mm
Package height	66 mm
Package weight	328 g
Technical details
Housing material	Metal
Wavelength	1310 nm
Maximum transfer distance	40000 m
Fiber mode structure	Single-mode
Internal	No
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Indication
LED indicators	Yes
Design
Housing material	Metal
LED indicators	Yes
Product colour	Black
Internal	No
Endurance
Mean time between failures (MTBF)	50000 h
Colour
Product colour	Black
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
