StarTech.com 1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km

1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km

Description

Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40km over Single Mode LC fiber
The ET1000S40LC2 1000 Mbps Gigabit Single-Mode Fiber Media Converter (LC, 40 km) enables you to extend a Gigabit Ethernet network over single-mode fiber, at distances up to 40km (25 miles).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

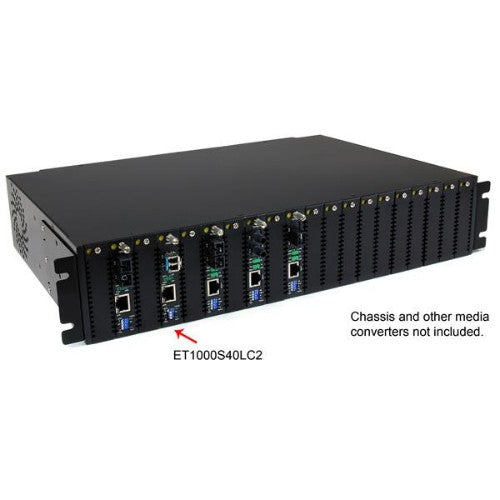

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote monitoring of status ensures maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for added durability in harsh environments
- Cost-effective way to extend/bridge networks using fiber cabling

Specifications

Network
Converter input interface	1000Base-T
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Duplex system	Full, Half
Converter output interface	1000Base-LX, 1000Base-SX
Auto MDI/MDI-X	Yes
Maximum data transfer rate	2000 Mbit/s
Fiber optic connector	LC
Performance
Wavelength	1310 nm
Maximum transfer distance	40000 m
Fiber mode structure	Single-mode
Mean time between failures (MTBF)	65000 h
Plug and Play	Yes
Features
Plug and Play	Yes
Product colour	Black
Internal	No
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	LC
DC-in jack	Yes
Power
Output voltage	12 V
Output current	1 A
External power adapter	Yes
Weight & dimensions
Weight	620 g
Dimensions (WxDxH)	95 x 160 x 20 mm
Package depth	138 mm
Package width	205 mm
Package height	89 mm
Package weight	754 g
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Packaging content
Manual	Yes
Packaging data
Package depth	138 mm
Package width	205 mm
Package height	89 mm
Package weight	754 g
Technical details
Wavelength	1310 nm
Maximum transfer distance	40000 m
Fiber mode structure	Single-mode
Plug and Play	Yes
Internal	No
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Design
Product colour	Black
Certification	CE, FCC
Internal	No
Endurance
Mean time between failures (MTBF)	65000 h
Management features
Plug and Play	Yes
Colour
Product colour	Black
Certificates
Certification	CE, FCC
Compliance certificates	RoHS
Logistics data
Harmonized System (HS) code	85176990
Other features
Full duplex	Yes
Dimensions (WxDxH)	95 x 160 x 20 mm
