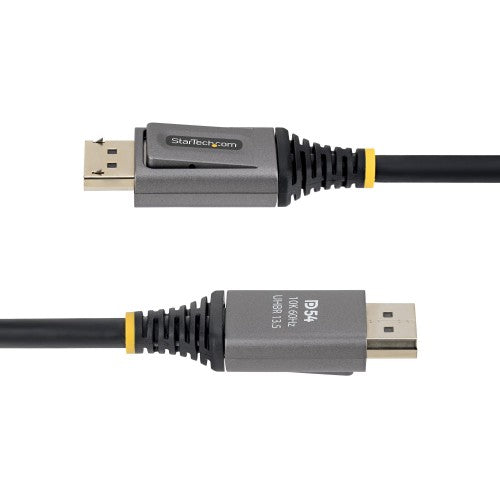

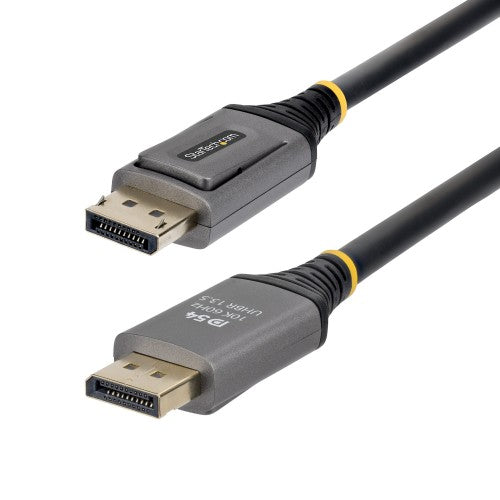

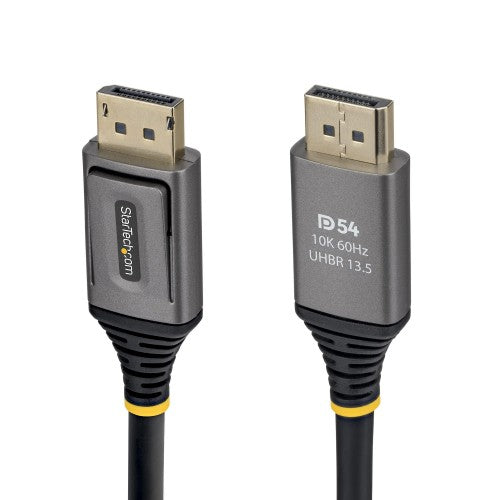

StarTech.com 2m DisplayPort 2.1 Cable, VESA Certified DP54 DisplayPort Cable, Uncompressed 8K 60Hz, 8K 144Hz/4K 240Hz w/DSC 1.2a, DP 2.1 Monitor Cord

StarTech 2m DisplayPort 2.1 Cable, VESA Certified DP54 DisplayPort Cable, Uncompressed 8K 60Hz, 8K 144Hz/4K 240Hz w/DSC 1.2a, DP 2.1 Monitor Cord

Key Features

• Deliver Uncompressed 8K 60Hz Video: Connect this DP 2.1 (DP54) Cable to an ultra-high resolution display for vivid, uncompressed 8K 60Hz/4K 144Hz video with HDR support and HDCP 2.3; Enable immersive sound quality with 32-channel and 7.1 surround audio
• Certified for Guaranteed Performance: Trust this VESA-Certified DP 2.1 cable for guaranteed DP54 (54Gbps) bandwidth with UHBR13.5 link rate support, ensuring full 8K 60Hz performance and up to 16K 30Hz / 10K 60Hz with Display Stream Compression (DSC 1.2a)

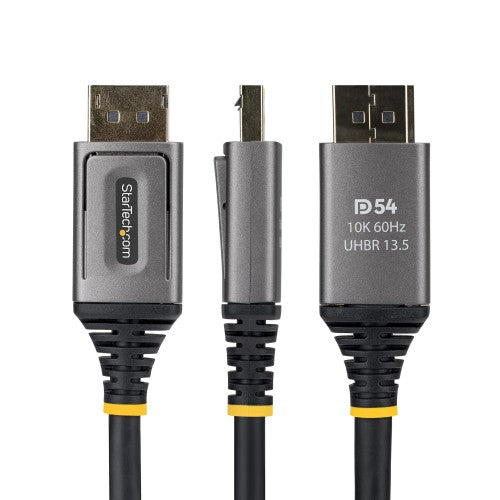

• Identify Specs Instantly: DP2.1 (DP54) specs printed on each Quick ID connector remove guesswork and confirm feature support at-a-glance; The eco-friendly TPE jacket is flexible and durable, designed to withstand tight bends and is RoHS-compliant
• For High-Resolution Workflows: Optimize high performance GPUs and AV workstations at UHD resolutions beyond 4K; Achieve sharp 8K picture at 10-bit and 8-bit 4:4:4 chroma; Works with USB-C to DP adapters for laptops such as Apple M-series Pro/Max MacBooks
• The IT Pro's Choice: Our digital display cables are rigorously lab-tested for signal integrity, durability, and compatibility across HDMI, DisplayPort, USB-C, and legacy interfaces; Backed by free lifetime 24/5 multi-lingual technical assistance

Description

Unlock UHBR13.5 Bandwidth for Next-Gen Resolutions, High Refresh Rates, and Uncompressed 8K 60Hz video

Connect an 8K/4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 2.1 DP54 Cable. This cable facilitates high bandwidth video and multi-channel audio and is ideal for 8K workstations, high performance GPUs, and dedicated AV applications including media production and content creation.

Seamless Compatibility

For seamless operation between DisplayPort-enabled devices, the DisplayPort 2.1 Cable is VESA Certified for guaranteed DP 2.1 and backward compatibility (DP 2.0/1.4/1.2). It supports G-Sync and FreeSync, enhancing Variable Refresh Rate (VRR) performance for optimal picture quality between high-capacity GPUs and supported displays.

Durable Design

This DisplayPort cable features a flexible TPE outer jacket that is tested to withstand 600 bending cycles at -/+60 degrees, and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection. The connectors are rated to operate beyond 10,000 insertions.

Supported DisplayPort 2.1 Features:

This DP54 DisplayPort cable supports the following DP 2.1 features:

• UHBR13.5 supports high refresh rates including uncompressed 5K 120Hz and 4K 144Hz
• DSC-compressed video up to 16K 30Hz / 10K 60Hz / 4K 240Hz 4:4:4 8-bit
• Uncompressed video resolutions up to 10K 30Hz / 8K 60Hz / 4K 144Hz 4:4:4 8-bit
• High-Bandwidth Digital Content Protection (HDCP) 2.3 for a secure connection between source and display
• High Dynamic Range 10 (HDR10) for higher contrast ratio and vibrant picture quality
• Display Stream Compression (DSC) 1.2a for maximum resolution output
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 32 Uncompressed Digital Audio Channels
• Backward compatible with previous DP versions

This DP 2.1 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.

Specifications

Features
Cable shielding	Aluminum mylar foil
Product colour	Black
Cable length	2 m
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Nickel
Jacket material	Thermoplastic elastomer (TPE)
DisplayPort version	2.1
Data transfer rate	54 Gbit/s
Maximum resolution	15360 x 8640 pixels
Supported graphics resolutions	15360 x 8640, 5120 x 2880, 7680 x 4320, 4096 x 2160
HDCP	Yes
Plug and Play	Yes
High Dynamic Range (HDR) supported	Yes
Maximum refresh rate	240 Hz
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Colour sampling	4:4:4
HDCP version	2.3
Display Stream Compression (DSC)	Yes
Display Stream Compression (DSC) version	1.2a
Channels quantity	32 channels
Cable type	Round cable
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Certificates
Compliance certificates	RoHS
Weight & dimensions
Cable diameter	7 mm
Weight	138 g
Package weight	205 g
Package width	142 mm
Package depth	170 mm
Package height	30 mm
Packaging data
Cable diameter	7 mm
Package weight	205 g
Weight	138 g
Package width	142 mm
Package depth	170 mm
Package height	30 mm
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Technical details
Compliance certificates	RoHS
Logistics data
Products per master (outer) case	30 pc(s)
Master (outer) case width	450 mm
Master (outer) case length	320 mm
Master (outer) case height	200 mm
