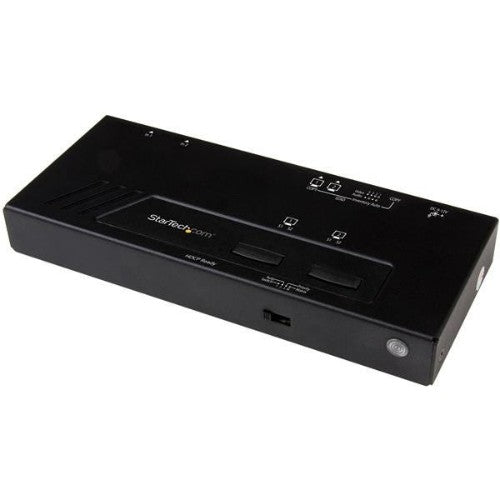

StarTech.com 2x2 HDMI Matrix Switch - 4K with Fast Switching and Auto-Sensing - TAA

StarTech 2x2 HDMI Matrix Switcher - 4K UltraHD HDMI Switch with Fast Switching, Auto-Sensing and Serial Control , TAA (VS222HD4K)

Key Features

• Impressive image quality with support for Ultra HD 4K
• Easy operation with automatic, priority and manual switching between HDMI sources
• Access two HDMI source devices on two independent HDMI displays, with 2 x 2 matrix switching
• IR remote control included
• RS-232 serial control interface
• EDID copy support ensures accurate display output
• Backward compatible with high-definition 1080p
• Mounting hardware included

Description

Automatically switch between two 4K video sources on two displays, utilizing fast-switching technology

Save time and hassle by automatically switching between your HDMI audio/video sources. This 2x2 HDMI® matrix switcher provides the ultimate viewing experience, with support for Ultra HD 4K. It lets you connect two HDMI sources to two HDMI displays, with exceptional 4K resolution, while switching seamlessly between your video sources.

Impressive image quality with 4K support

The matrix switch supports Ultra HD 4K picture quality on two monitors while switching between content from HDMI source devices - including Blu-ray™ players or DVD players, computer systems, video game consoles, digital cable or satellite boxes, and A/V receivers.

4K support ensures a higher level of image clarity and visibility, delivering four times the resolution of 1080p - 8.29 million pixels versus 2.07 million pixels. It provides a more engaging visual experience for audiences in a wide range of venues including conference centers, boardrooms, educational facilities, and commercial settings. With its exceptional image quality, 4K resolution is also ideal for bringing your digital signage to life.

Fast and versatile switching options

Enjoy hassle-free operation with four different switching modes:

• Matrix switching: lets you route either HDMI source (Input 1 or Input 2) to either monitor (Output 1 and/or Output 2) - and independently switch two displays between two video sources.

• Fast auto-switching: ensures minimal time for switching between HDMI sources. The switch provides effortless operation with advanced auto-sensing - it detects the latest connected HDMI source and automatically switches both outputs to that device. It also ensures no downtime in a digital signage application if a source signal is accidentally powered off or fails.

• Priority switching: identifies the first port to have first priority for HDMI sources, which will be output on both displays.

• Manual switching: enables you to manually select your HDMI source with front-panel buttons that are easy to use.

An IR remote control is included in the box, enabling you to select your desired input source remotely. The RS-232 serial control interface ensures easy remote operation with serial control enabled devices.

Hassle-free setup with plug-and-play installation

The matrix switch is easy to install. EDID emulation saves you time during setup by ensuring all of your display settings, such as native resolution and refresh rate, are communicated between your display and video source devices. The built-in EDID copy feature maximizes compatibility with your 4K display, to ensure a convenient plug-and-play installation and the sharpest image quality.

The VS222HD4K is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.

Specifications

Ports & interfaces
Video port type	HDMI
HDMI version	1.4
Number of HDMI outputs	2
HDMI in	2
DC-in jack	Yes
Features
Audio output channels	7.1 channels
Remote control type	IR
Product colour	Black
Supported video modes	1080p
Maximum resolution	3840 x 2160 pixels
LED indicators	Activity, Power
HDCP	Yes
Power
AC adapter input voltage	100 - 240 V
AC adapter input current	1.5 A
AC adapter output voltage	12 V
Certificates
Certification	CE, FCC
Technical details
Audio output channels	7.1 channels
Remote control type	IR
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 80%
Product colour	Black
Video port type	HDMI
Supported video modes	1080p
Maximum resolution	3840 x 2160 pixels
LED indicators	Activity, Power
HDMI version	1.4
HDCP	Yes
Remote control included	Yes
Audio support	Yes
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Packaging data
Package width	236 mm
Package height	67 mm
Package depth	158 mm
Package weight	841 g
Packaging content
Mounting brackets included	Yes
Quick start guide	Yes
Remote control included	Yes
Cables included	Phone (RJ-11)
AC adapter included	Yes
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Package width	236 mm
Package height	67 mm
Package depth	158 mm
Package weight	841 g
Logistics data
Products per master (outer) case	12 pc(s)
Master (outer) case width	326 mm
Master (outer) case length	408 mm
Master (outer) case height	268 mm
Harmonized System (HS) code	85176990
