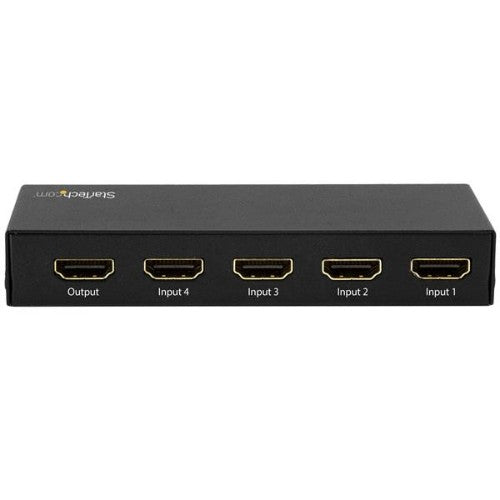

StarTech.com 4-Port HDMI Automatic Switch - 4K 60Hz

StarTech HDMI 2.0 Switch - 4 Port - 4K 60Hz - HDMI Automatic Video Switch Box - Multi Port Hub w/ 1 In 4 Out Functionality (VS421HD20)

Key Features

• Astonishing picture quality with support for 4K 60Hz
• Hassle-free operation with automatic 4-port switching and an IR remote control included
• 7.1 surround sound

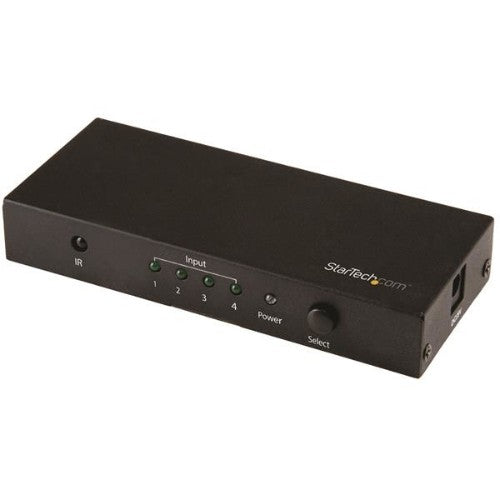

• Front-panel toggle-switch button

Description

Switch between four HDMI video sources on a single display with support for Ultra HD resolutions

This 4-port HDMI video switch lets you share an HDMI 2.0 display or projector with four HDMI 2.0 video sources. The switch features four independent video inputs that can each support 4K resolution at 60Hz, making it the perfect solution for connecting four video sources to a display that has a limited number of HDMI 2.0 ports.

Astonishing picture quality with support for Ultra HD 4K at 60Hz

The HDCP 2.2 HDMI switch lets you harness the High Dynamic Range (HDR) capability of your HDMI 2.0 video sources and deliver it to your UHD 4K60 display. Unlike many 4K switches that only support a 30Hz refresh rate, this switch works with HDMI 2.0 displays with output resolutions of up to 3840 x 2160p at 60Hz.

Don't be fooled by a clever spin on old technology. Many HDMI switches support 4K but will only work at a 30Hz refresh rate, or claim support for 60Hz but heavily compress their signal to a lower 4:2:0 chroma subsampling in order to work at inferior bitrates. This 4K 60Hz HDMI switch uses the latest components to offer full support for your HDMI 2.0 equipment, supporting true 4K resolution at 60Hz with 4:4:4 chroma subsampling. Support for HDMI 2.0 devices means this switch can transmit bandwidth up to 18Gbps, making it ideal for high-resolution computer tasks.

The switch is backward compatible with 4K 30Hz and 1080p displays, which ensures that it will work with lower resolution displays such as TVs or projectors around your site or in a digital signage application.

Hassle-free Operation with automatic switching

This switch ensures effortless operation with automatic switching that detects and selects a newly connected device. It's perfect for automatically switching to a 4K media player such as a 4K UHD Blu-ray™ player as soon as it's switched on. In your classroom or office boardroom, the automatic switch makes it easy to share your projector between multiple sources, which encourages on-the-fly collaboration among colleagues.

The HDMI switch also supports manual operation, using the included IR remote control or the built-in front-panel toggle switch.

The VS421HD20 is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Specifications

Ports & interfaces
Video port type	HDMI
HDMI version	2.0
HDMI ports quantity	5
HDMI in	4
Features
Audio output channels	7.1 channels
Product colour	Black
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
Maximum resolution	3840 x 2160 pixels
Maximum refresh rate	60 Hz
LED indicators	Power
HDCP	Yes
Power
AC adapter input voltage	100 - 240 V
AC adapter frequency	50 Hz
AC adapter input current	0.4 A

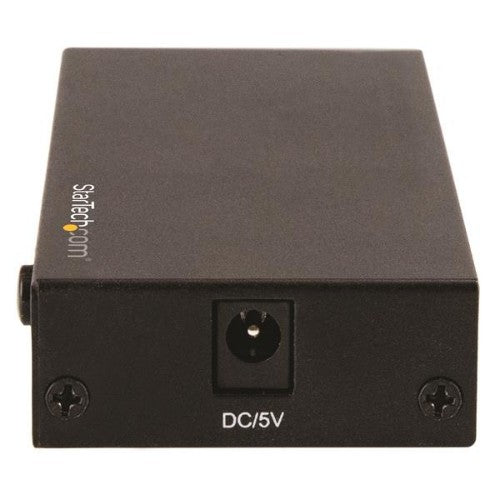

AC adapter output voltage	5 V
AC adapter output current	2 A
Power plug type	Type H
Certificates
Certification	CE, FCC
Weight & dimensions
Width	51 mm
Height	20 mm
Depth	123 mm
Weight	154 g
Package width	217 mm
Package height	55 mm
Package depth	151 mm
Package weight	434 g
Technical details
Audio output channels	7.1 channels
Storage temperature (T-T)	-10 - 80 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 85%
Width	51 mm
Height	20 mm
Depth	123 mm
Product colour	Black
Video port type	HDMI
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
Maximum resolution	3840 x 2160 pixels
Maximum refresh rate	60 Hz
LED indicators	Power
HDMI version	2.0
HDMI ports quantity	5
HDCP	Yes
Remote control included	Yes
Audio support	Yes
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Packaging data
Package width	217 mm
Package height	55 mm
Package depth	151 mm
Package weight	434 g
Packaging content
Remote control included	Yes
Operational conditions
Storage temperature (T-T)	-10 - 80 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 85%
Logistics data
Products per master (outer) case	20 pc(s)
Master (outer) case width	462 mm
Master (outer) case length	293 mm
Master (outer) case height	341 mm
Harmonized System (HS) code	85176990
