StarTech.com 4-Port HDMI Splitter, 4K 60Hz HDMI 2.0 Video, 4K HDMI Splitter w/ Built-in Scaler, HDMI Splitter 1 In 4 Out, 3.5mm/Optical Audio Port, HDMI Display/Output Splitter

StarTech.com 4-Port HDMI Splitter, 4K 60Hz HDMI 2.0 Video, 4K HDMI Splitter w/ Built-in Scaler, 1 In 4 Out HDMI Splitter, 3.5mm/Optical Audio Port, HDMI Display/Output Splitter (HDMI-SPLITTER-44K60S)

Key Features

• 4-PORT HDMI SPLITTER: This HDMI Splitter displays the same image, with audio, on 4 screens / 4:4:4 chroma subsampling support / HDMI 2.0b 4K 60Hz / HDR / 18Gbps Bandwidth / 7.1ch HDMI Audio / HDCP 2.2/1.4/ 8kV Air and 4kV Contact ESD Protection
• EDID MANAGEMENT SWITCH: The 4 way HDMI Splitter's EDID Auto setting uses a built-in scaler for outputting 2 different display resolutions / EDID Copy clones the EDID settings from output port 1 to another display at the same resolution (720p and up)
• FLEXIBLE AUDIO SUPPORT: The 4K HDMI Splitter has HDMI, 3.5mm, and Optical audio outputs to connect to a variety of speakers or amplifiers / Simultaneous audio output is supported across all ports / Supports Digital to Analog conversion (DAC)
• LONG REACH: Reach up to 16.4ft (5m) with passive HDMI cables / The 1x4 HDMI Splitter supports active HDMI cables and HDMI extenders (sold separately) to reach further distances which makes it ideal for boardrooms, digital signage and more
• EASY SETUP: No drivers or software required for the 1-Input 4-output HDMI 2.0 splitter / The metal enclosure makes it suitable for installation in many environments / Widescreen resolutions supported / DVI compatible with adapters (sold separately)

Description

4-Port HDMI Splitter | 4K 60Hz | Built-In Scaler | 3.5mm, Optical, and HDMI Audio

This 4-port HDMI splitter with built-in scaler connects an HDMI video source to four HDMI displays, with support for UHD 4K resolutions, HDR (High Dynamic Range), and 7.1 channel audio.

4K 60Hz Resolution

This 4-way HDMI splitter supports up to 4K 60Hz resolution, at 4:4:4 chroma subsampling. The built-in scaler enables enables the concurrent output of 2 resolutions, ideal for environments where there is a variety of displays, monitors, and projectors.

Flexible Audio

This 4K HDMI Splitter features HDMI, 3.5mm, and Optical audio outputs, enabling connections to a variety of speakers and/or amplifiers. Simultaneous audio output is supported across all the audio ports.

Robust Installation Options

This HDMI splitter supports active HDMI cables and HDMI extenders (sold separately), facilitating installations at a distance from the displays (e.g., within a remote AV component cabinet). The metal enclosure and 8kV air and 4kV contact Electro-static Discharge (ESD) protection is suitable for installation in a variety of environments.

This product is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech.com Advantage

Specifications

Ports & interfaces
Video ports quantity	4
Video port type	HDMI
Audio ports quantity	2
Video out	4x HDMI
HDMI version	2.0b
Features
LED indicators	Yes
Housing material	Metal
Maximum refresh rate	60 Hz
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160
Maximum resolution	3840 x 2160 pixels
Plug and Play	Yes
Maximum operating distance	5 m
Product colour	Black
HD type	4K Ultra HD
Power
Input current	0.35 A
Output current	1 A
Power consumption (typical)	0.1 W
Output voltage	5 V
AC input voltage	100 - 240 V
Weight & dimensions
Weight	248 g
Width	62 mm
Depth	180 mm
Height	14 mm
Package weight	500 g
Package depth	150 mm
Package width	213 mm
Package height	55 mm
Packaging data
Package weight	500 g
Package depth	150 mm
Package width	213 mm
Package height	55 mm
Packaging content

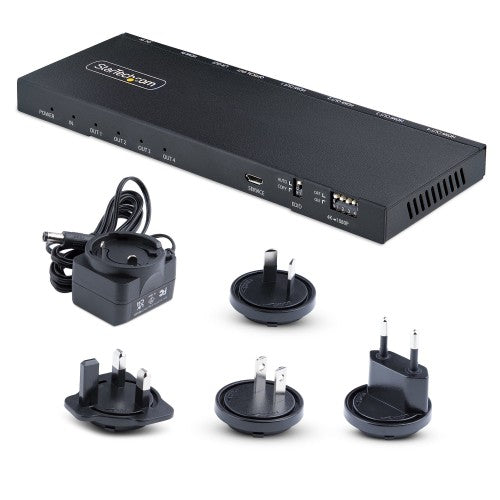

AC adapter included	Yes
Manual	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Video
Maximum refresh rate	60 Hz
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160
Maximum resolution	3840 x 2160 pixels
Colour
Product colour	Black
Indication
LED indicators	Yes
Technical details
Housing material	Metal
Supported audio channels	7.1
Package width	213 mm
Package height	55 mm
Video out	4x HDMI
Plug and Play	Yes
Maximum operating distance	5 m
HDMI version	2.0b
Audio support	Yes
Compliance certificates	CE, RoHS
Logistics data
Master (outer) case width	443 mm
Master (outer) case length	300 mm
Master (outer) case height	318 mm
Products per master (outer) case	20 pc(s)
