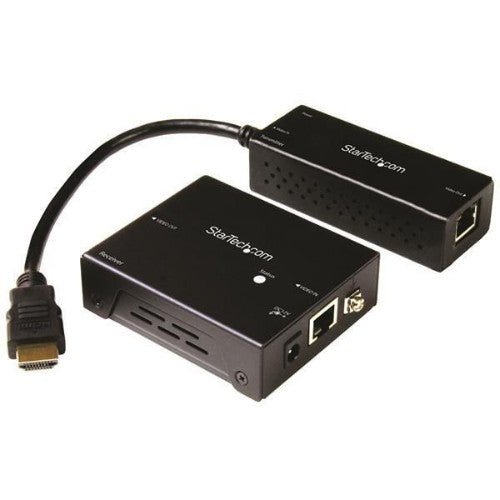

StarTech.com 4K HDMI Extender with Compact Transmitter - HDBaseT - UHD 4K - TAA

StarTech HDBaseT Extender Kit with Compact Transmitter - HDMI over CAT5 - HDMI over HDBaseT - Up to 4K , TAA (ST121HDBTDK)

Key Features

• Simple and versatile installation with a compact, USB-powered transmitter that features a built-in HDMI cable
• Astonishing picture quality with support for UHD resolutions up to 4K
• Easy integration with existing CAT5/CAT6/CAT7 infrastructure
• Mounting hardware included
• 7.1 audio support

Description

HDBaseT Extender Kit | 7.1 Audio | Mounting Hardware Included | Up to 70 m (230 ft.)

This 4K HDMI extender uses HDBaseT to transmit your HDMI A/V signal to a remote location up to 70 m (230 ft.) away.

Easy and Discreet Installation

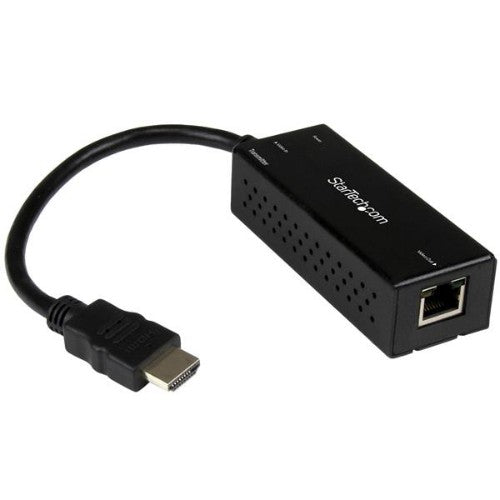

The transmitter in this HDMI HDBaseT extender kit features a small footprint and built-in HDMI cable that connects directly to your source for reduced clutter. It’s powered from a USB port on your source device, which makes it easier to install in areas where power outlets may be limited. Mounting hardware is included for the receiver for a discreet, professional installation.

Get 4K Video at 130 ft. (40 m)

This HDMI over CAT6 extender maintains your UHD 4K picture quality, even at 130 feet away from your video source. Because the extender is backward compatible with 1080p and lower resolutions at 230 feet away, you can comfortably use this extender to make any video source look great. The extender also supports 7.1 audio to ensure all audio channels are captured.

Seamless Integration with Your Existing Infrastructure

The kit extends HDMI over a single cable, unlike some HDMI extenders that require two cables, reducing potential failure points and lowering your cabling costs. Ideal for digital signage, the HDMI over CAT6 extender uses standard CAT5e, CAT6 or CAT7 cables to extend HDMI video over the Ethernet infrastructure that's already in your building.

The ST121HDBTDK is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Features
Audio output channels	7.1 channels
Rack mounting	Yes
Plug and Play	Yes
Daisy chain	No
HDBaseT certified	Yes
Certification	CE, FCC, TAA, REACH
Type	AV transmitter & receiver
Maximum resolution	4096 x 2160 pixels
Cable types supported	Cat5e, Cat6
Maximum transfer distance	70 m
Audio system	Multichannel
LED indicators	Status
Cable length	0.1 m
Product colour	Black
Technical details
Audio output channels	7.1 channels
Rack mounting	Yes
Plug and Play	Yes
Daisy chain	No
HDBaseT certified	Yes
Certification	CE, FCC, TAA, REACH
Type	AV transmitter & receiver
Maximum resolution	4096 x 2160 pixels
Cable types supported	Cat5e, Cat6
Maximum transfer distance	70 m
Audio system	Multichannel
Cable length	0.1 m
Product colour	Black
Connectivity technology	Wired
Compliance certificates	RoHS
Ports & interfaces
RJ-45 input ports	1
RJ-45 output ports	1
HDMI in	1
Number of HDMI outputs	1
Connectivity technology	Wired
Power
Input current	0.6 A
Output current	1.5 A
Power plug type	Type M
AC input voltage	100-240 V
Power consumption (typical)	18 W
External power adapter	Yes
Operating voltage	12 V
Indication
LED indicators	Status
Operational conditions
Operating relative humidity (H-H)	0 - 80%
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Width	68 mm
Package depth	294 mm
Height	25 mm
Depth	80 mm
Package width	197 mm
Package height	74 mm
Weight	252 g
Package weight	1.6 kg
Packaging data
Package depth	294 mm
Package width	197 mm
Package height	74 mm
Package weight	1.6 kg

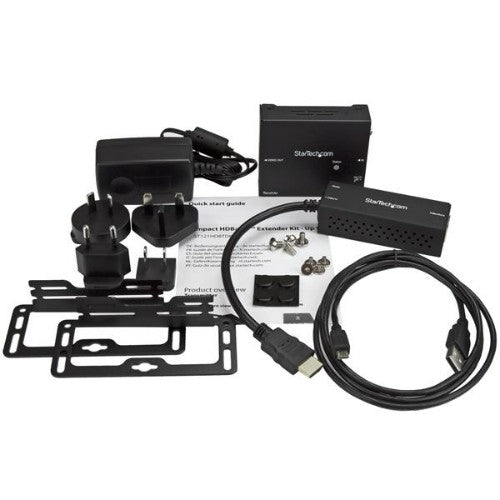

Packaging content
Mounting kit	Yes
Cables included	USB
Quick start guide	Yes
AC adapter included	Yes
Included power plug types	ANZ, EU, NA, UK
Logistics data
Master (outer) case width	410 mm
Master (outer) case length	455 mm
Master (outer) case height	328 mm
Products per master (outer) case	10 pc(s)
