StarTech.com 4x4 HDMI Matrix Switch with Picture-and-Picture Multiviewer or Video Wall - TAA

StarTech 4x4 HDMI Matrix Switch with Picture-and-Picture Multiviewer or Video Wall - 4x4 Matrix Switch with Video Combining , TAA (VS424HDPIP)

Key Features

• Increase your communication power by linking four HDMI audio/video sources with four HDMI displays
• Get the whole picture by outputting multiple inputs on the same display or mix-and-match inputs across multiple displays
• Save cost and screen real estate by combining multiple inputs per individual display with Full Matrix Picture-and-Picture support

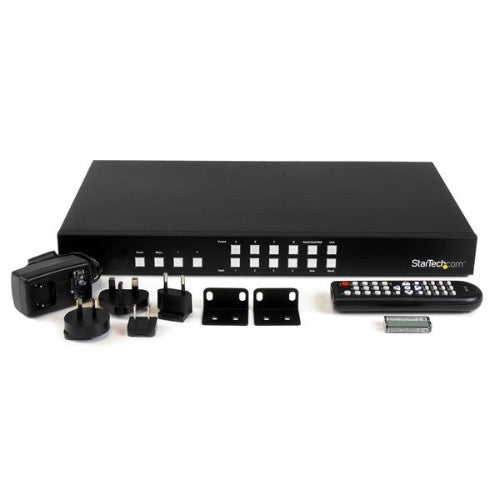

• Mounting hardware included
• Support for video resolutions up to 1920x1200 / 1080p

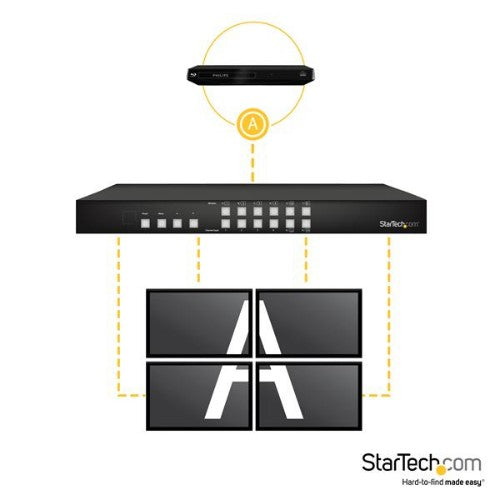

• Full matrix configuration supporting four different picture-and-picture modes per display: Matrix Mode (1x1) / Dual Mode (2x1) / Quad Mode (4x1) / TV Wall Mode (1x4)
• Remote control using RS232 (serial), Telnet (TCIP/IP Network), or IR (remote control included)
• Choose which audio source is outputted with your combined video sources

Description

Share and switch four distinct HDMI audio/video sources between four HDMI displays, with optional Picture-and-Picture

The VS424HDPIP 4X4 HDMI Matrix Switch with Picture-and-Picture (PAP) gives you the power to seamlessly combine and distribute four HDMI audio/video sources across four different HDMI displays, with the added ability to combine multiple images on the same display.

See the Whole Picture

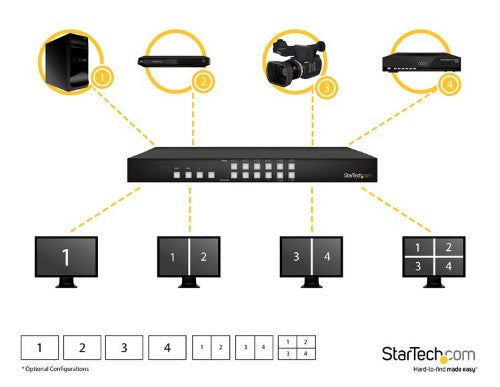

The split-screen multiplexing switch combines the flexibility of a matrix switch with the scalability of a video wall, giving you the freedom to combine video sources on a single display. You can also distribute different video combinations independently across four individual displays. The switch offers full matrix configuration supporting four different picture-and-picture modes per display: Matrix Mode (1x1) / Dual Mode (2x1) / Quad Mode (4x1) / TV Wall Mode (1x4).

Control Your Output

Fitting your boardroom or digital signage application with a VS424HDPIP dramatically increases your communication possibilities. Not only does the picture-and-picture matrix switch increase your communication by a factor of four per display, but it also enables you to adjust your video sources remotely using your local TCP/IP network, or the included IR remote control.

Increase the Versatility of Your Displays

The VS424HDPIP is a flexible video switch that can improve any video display application. The picture-and-picture technology enables you to share up to four distinct images on the same screen, reducing required video real estate and saving you from wasting money on additional displays in your digital signage applications. For security monitoring, you can combine four video sources onto a single display to view everything more efficiently and broadcast those feeds to four different displays in different locations -- you can even zoom into to a single feed for a closer look without disrupting the remaining three displays. For versatile installation options, mounting hardware is included ensuring a tidy and professional installation.

The VS424HDPIP is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Ports & interfaces
RJ-45 input ports	1
Video port type	HDMI
RS-232 ports	1
HDMI ports quantity	8
Number of HDMI outputs	4
HDMI in	4
Features
Audio output channels	7.1 channels
HD type	Full HD
Remote control type	RS232, Telnet, IR
Product colour	Black
Supported video modes	1080p, 720p
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA)
Maximum resolution	1920 x 1200 pixels
Material	Aluminium
LED indicators	Yes
Power
AC adapter input voltage	100 - 240 V
AC adapter input current	1 A
AC adapter output voltage	12 V
AC adapter output current	3 A
Certificates
Certification	CE, FCC, TAA
Weight & dimensions
Width	250 mm
Height	49 mm
Depth	436 mm
Weight	2.8 kg
Dimensions (WxDxH)	250 x 436 x 49 mm
Package width	414 mm
Package height	144 mm
Package depth	576 mm
Package weight	4.3 kg
Technical details
Audio output channels	7.1 channels
HD type	Full HD
Remote control type	RS232, Telnet, IR
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 90%
Width	250 mm
Height	49 mm
Depth	436 mm
Product colour	Black
Video port type	HDMI
Supported video modes	1080p, 720p
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA)
Maximum resolution	1920 x 1200 pixels
Material	Aluminium
LED indicators	Yes
HDMI ports quantity	8
Remote control included	Yes
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Packaging data
Package width	414 mm
Package height	144 mm
Package depth	576 mm
Package weight	4.3 kg
Packaging content
Software CD	Yes
Manual	Yes
Remote control included	Yes
AC adapter included	Yes
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 90%
Logistics data
Products per master (outer) case	3 pc(s)
Master (outer) case width	445 mm
Master (outer) case length	600 mm
Master (outer) case height	430 mm
Harmonized System (HS) code	85176990
